Open - Close Unit for Shower Toilet lid & sheet
TSL360
Overview
This actuator automatically opens and closes the toilet seat and lid of the shower toilet with an electric motor unit.
The opening and closing speed can be controlled according to the weight and balance of the toilet seat and toilet lid.
The feature is that the torque limiter is activated when force is added from the outside, such as manual opening and closing, and the inside of the motor unit is not damaged.

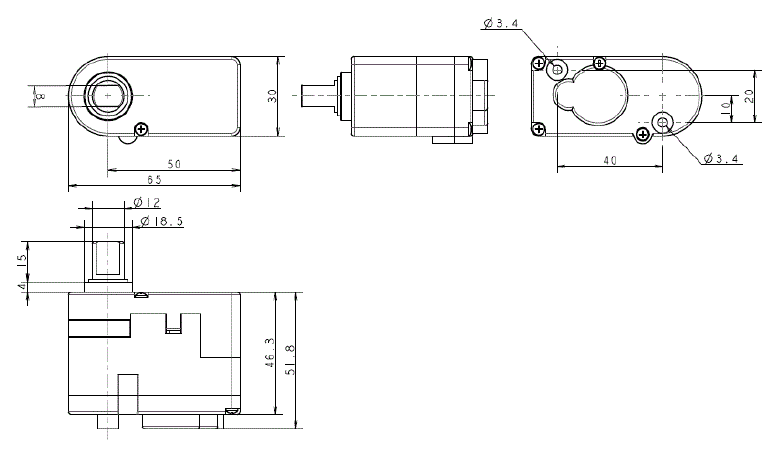

Overall View
Specifications
| Rated Voltage [V] |
12 |
|---|---|
| Max load Current [N･m] |
3.6 |
| Maximum Current [A] |
1.2 |
| Full Open Time [sec.] |
2.5±1.0 |
| Full Close Time [sec.] |
2.5±1.5 |
| Operating Angle Range [°] |
120.0 |
| Operating Temp. upper limit [deg.C] |
40 |
| Life Time(Prediction) [cycles] |
50000 |
