Spherical Self Lubricating Standard

Spherical bearings are self aligning bearings used extensively on the driven parts in the aerospace, automobiles, railways and industrial machines. We offer distinctive products that will fit your needs, such as PTFE bearings that have a self-lubricating function, or metal to metal bearings that perform well under static and high load environment.
Please consult with our sales unit when designing for special purposes.

Feature of a Product

・Self lubricating
The PTFE lining is bonded to the inner diameter of the race. The PTFE Liner acts as a lubricant and therefore no other lubrication is necessary. Thus they are eminently suitable to apply where re-lubrication is impractical or impossible. More over, as they don't require any lubrication, they are effective to lower the maintenance cost. They perform well under slow fluctuation velocity and oscillation load. Therefore PTFE type can induce the difficulties of metal/metal type such as high friction, seizure, fatigue destruction and fretting on the fluctuating surface.

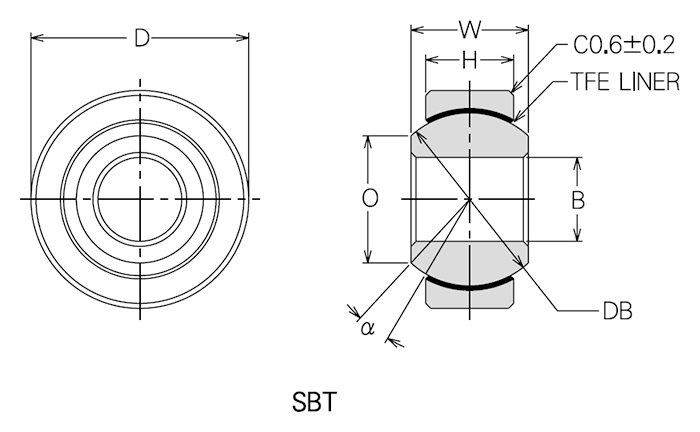

Dimensions in mm

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Part No.	øB H7	φD 0-0.013	W 0-0.13	H ±0.13	α DEG	øO(REF)	SøDB(REF)	No Load Rotational Breakaway Torque - Standerd Type lower limit [N･m]	No Load Rotational Breakaway Torque - Standerd Type upper limit [N･m]	No Load Rotational Breakaway Torque - Standerd Type lower limit [kgf・cm]	No Load Rotational Breakaway Torque - Standerd Type upper limit [kgf・cm]	Static Limit load(Radial) [kN]	Static Limit load(Axial) [kN]	Dynamic Load [kN]	Approx. Weight [g]
SBT3	3	12.0	6.0	4.50	11	6.8	9.042	0.06	0.57	0.6	5.8	13.72	1.56	6.27	5
SBT4	4	14.0	7.0	5.25	12	7.6	10.319	0.06	0.57	0.6	5.8	17.65	2.25	8.04	7
SBT5	5	16.0	8.0	6.00	11	8.8	11.906	0.12	0.57	1.2	5.8	24.51	2.94	11.17	10
SBT6	6	18.0	9.0	6.75	10	11.1	14.288	0.12	0.57	1.2	5.8	36.28	3.72	16.57	14
SBT8	8	22.0	12.0	9.00	12	12.7	17.462	0.12	0.57	1.2	5.8	58.83	6.76	26.87	26
SBT10	10	26.0	14.0	10.50	12	15.2	20.638	0.12	0.57	1.2	5.8	81.39	9.21	37.16	42
SBT12	12	30.0	16.0	12.00	11	17.6	23.812	0.12	0.57	1.2	5.8	114.73	18.63	52.46	62
SBT14	14	34.0	19.0	13.50	14	19.2	26.988	0.12	0.57	1.2	5.8	147.09	23.53	67.27	89
SBT16	16	38.0	21.0	15.00	13	22.7	30.956	0.12	0.57	1.2	5.8	186.32	29.41	85.12	125
SBT18	18	42.0	23.0	16.50	13	24.1	33.338	0.23	0.90	2.3	9.2	215.74	35.30	98.65	165
SBT20	20	46.0	25.0	18.00	12	28.8	38.100	0.23	0.90	2.3	9.2	274.58	42.16	125.52	220
SBT22	22	50.0	28.0	20.00	13	30.3	41.275	0.23	0.90	2.3	9.2	333.42	51.97	152.39	285
SBT25	25	56.0	31.0	22.00	14	32.4	44.847	0.33	1.70	3.4	17.3	404.03	65.21	184.65	380
SBT30	30	66.0	37.0	25.00	16	38.2	53.181	0.33	1.70	3.4	17.3	545.24	84.33	249.28	605

scroll

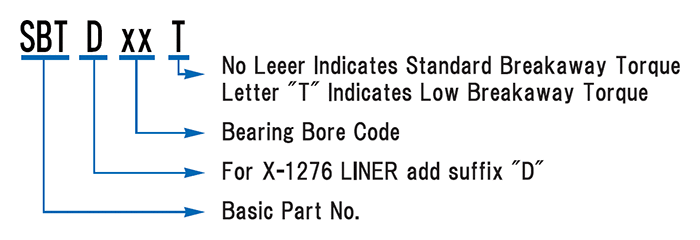

(P/N)

RACE

BALL

LINER

SBT 410 Stainless Steel 440C Stainless Steel PTFE / Fabric
1. PTFE liner permanently bonded to race I.D.
2. MBYT & MBYT-V weights are similar.
3. Made to order only.
4. No Load Rotational Breakaway Torque.
Low Torque All Size: 0.02N・m MAX (Radial Clearance 0.05mm MAX)

*Please consult MinebeaMitsumi for availability of bearings in this series.
