Features
![](/en/product/category/connector/coaxial/fakra/parts/__icsFiles/afieldfile/2024/08/02/file_73_2.jpg)
1.Applicable to automotive antennas for radio-frequency signal transmission.
2.Include a die casting body (shell) that can contribute to the robust structure.
3.Selectable variations of mounting requirements.
(Right angle / Straight / Standard / Low height)
4.Each coding (mating key) is available.
5.Compatible with Pin-in-Paste.
6.Compliant with RoHS Directive.
Specifications
Electric Characteristics
Rated Voltage :60V DC max.
Rated Current :1A DC max.
Characteristic Impedance :50Ω
Insertion Loss :
0.15dB max. (0 to 1GHz)
0.25dB max. (1 to 2.5GHz)
0.35dB max. (2.5 to 4GHz)
Return Loss :
15.6dB min. (0 to 2GHz)
14.0dB min. (2 to 4GHz)
Mechanical Characteristics
Life (Mating Cycle) : 25 times
Total Insertion Force : ≦50N
Total Withdrawal Force : ≦50N
Overall View

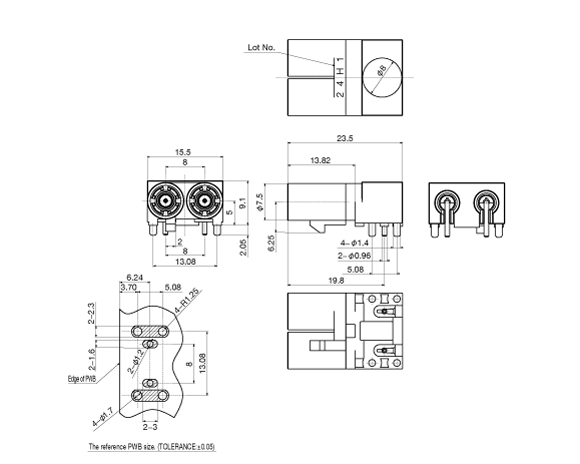

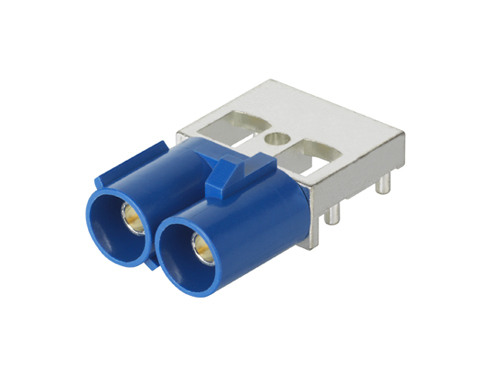

CDM-K27W
![](/en/product/category/connector/coaxial/fakra/parts/__icsFiles/afieldfile/2024/08/02/file_70_2.gif)
CDM-J97W
![](/en/product/category/connector/coaxial/fakra/parts/data/__icsFiles/afieldfile/2024/08/02/file_01_4.gif)

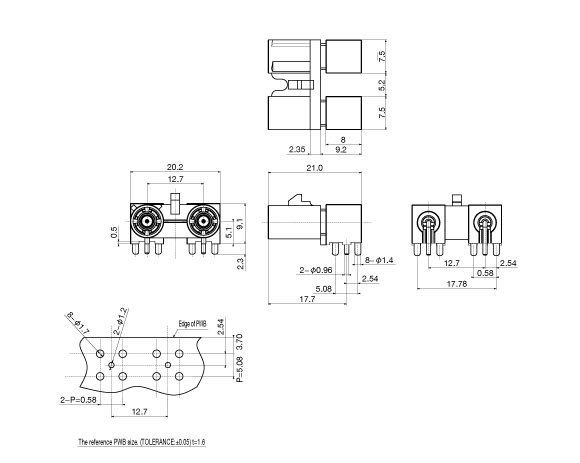

CDM-K29W
![](/en/product/category/connector/coaxial/fakra/parts/data/__icsFiles/afieldfile/2024/08/02/file_04_2.gif)

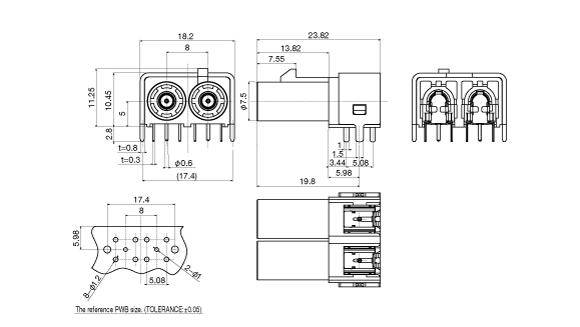

CDM-K06W
![](/en/product/category/connector/coaxial/fakra/parts/data/__icsFiles/afieldfile/2024/08/02/file_07_2.gif)

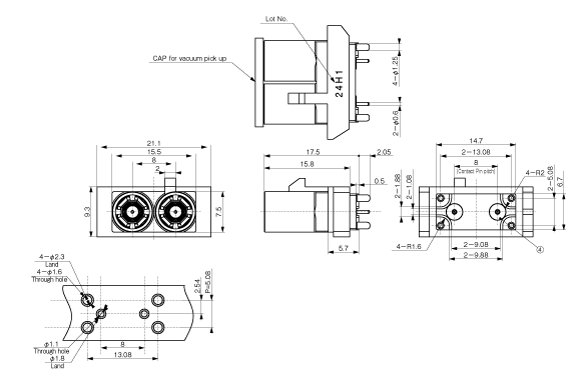

CDM-K33W
![](/en/product/category/connector/coaxial/fakra/parts/data/__icsFiles/afieldfile/2024/08/02/file_01_6.gif)

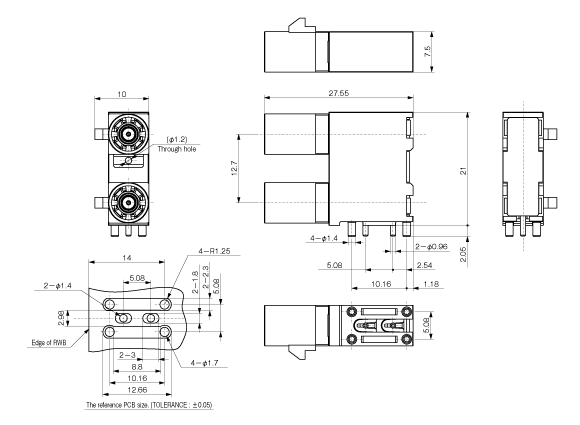

CDM-L03
![](/en/product/category/connector/coaxial/fakra/parts/data/__icsFiles/afieldfile/2024/08/02/file_04_4.gif)
Unit:mm
NOTE
*Any products mentioned in this catalog are subject to any modification in their appearance and others for improvements without prior notification.
*The details listed here are not a guarantee of the individual products at the time of ordering. When using the products, you will be asked to check their specifications.
