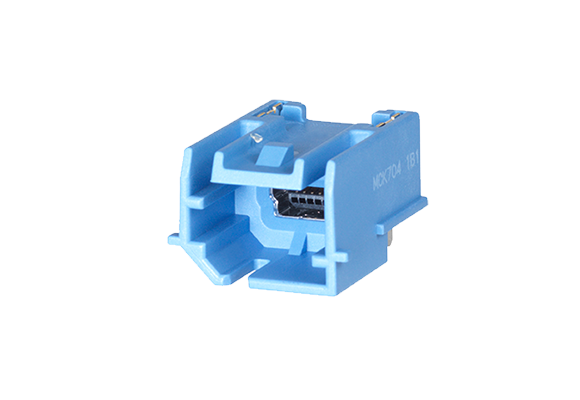

USCAR-30 Connector
１．Compliant with USCAR-30 standard
２．Mating compatibility with connectors from other manufacturers
３．Extensive track record of adoption by numerous vehicle manufacturers
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Catalog |
|---|---|---|---|---|---|---|---|---|

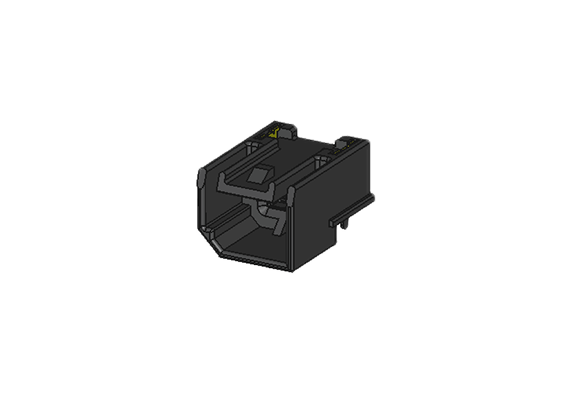

| CAM-K78V |  |
5 | Straight DIP | 2.4 | 100V A.C.(r.m.s.) for a minute | -40 | 85 | DL0026_MMICAMK78A-K78V-K81-IAMK80C-K80J_BI_CL.pdf |

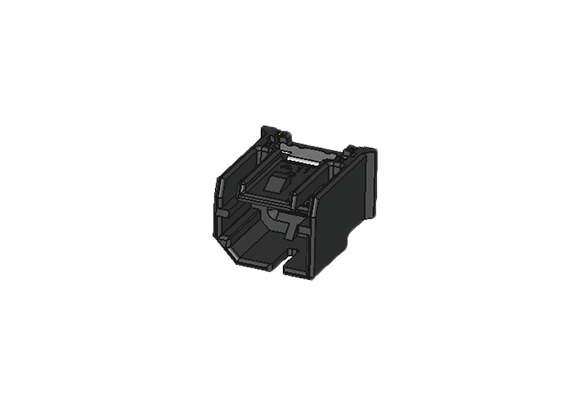

| CAM-K78A |  |
5 | Right-angle DIP |
2.4 | 100V A.C.(r.m.s.) for a minute | -40 | 85 | DL0026_MMICAMK78A-K78V-K81-IAMK80C-K80J_BI_CL.pdf |

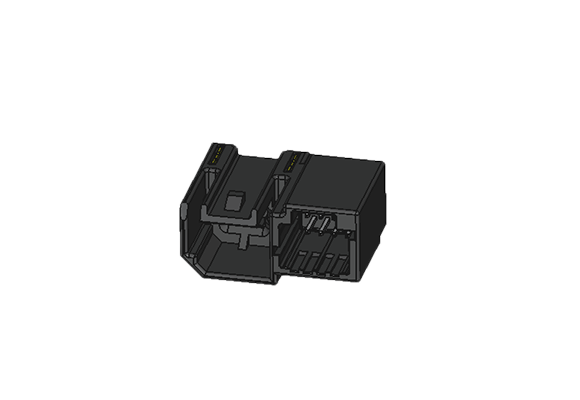

| CAM-K81 |  |
5+8 | Right-angle DIP |
2.4 | 100V A.C.(r.m.s.) for a minute | -40 | 85 | DL0026_MMICAMK78A-K78V-K81-IAMK80C-K80J_BI_CL.pdf |
