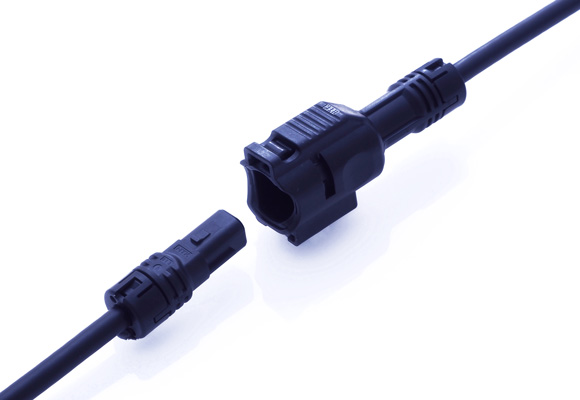

High-Speed Transmission Waterproof Connector for Automotive
TAT Series
１．IPX9K (waterproof to withstand high-pressure cleaning)
２．Smallest plug connector outer diameter Φ11.2±0.2mm
３．Shape that suppresses unintentional unlocking
*This product is sold only as a Cable Assembly.
For any details, please contact to HTK our sales office.
High-Speed Transmission Waterproof Connector for Automotive Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Waterproof Grade |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Applicable Cable Diameter |
Drawing |
Catalog |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

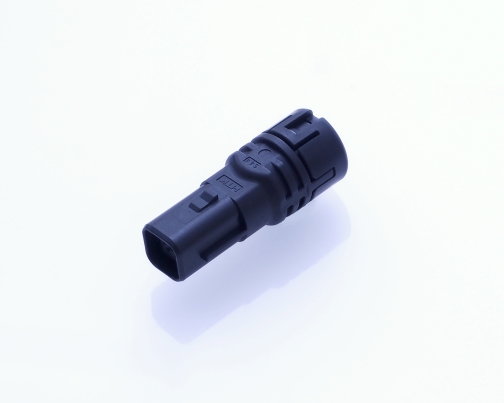

| TAT001A00AMF |  |
4 | 2.00 | IPX9K | Crimping | 2.5 | 500V A.C.(r.m.s) for a minute | -40 | 105 | AWG24 ~ 28 | DL0001_HTKTAT_BI.pdf | DL0003_HTKTAT_EN_CL.pdf |

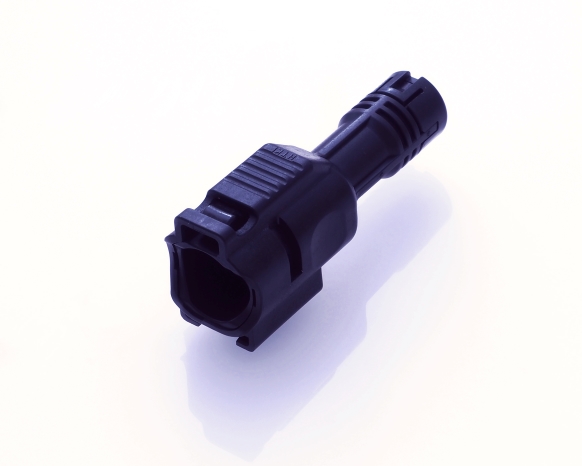

| TAT002A00AMM |  |
4 | 2.00 | IPX9K | Crimping | 2.5 | 500V A.C.(r.m.s) for a minute | -40 | 105 | AWG24 ~ 28 | DL0002_HTKTAT_BI.pdf | DL0003_HTKTAT_EN_CL.pdf |
