Outline

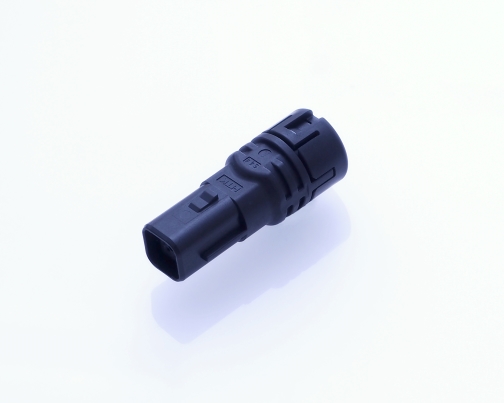

Compact High-Speed Transmission Connectors (Waterproof Type)
１．IPX9K (waterproof to withstand high-pressure cleaning)
２．Smallest plug connector outer diameter Φ11.2±0.2mm
３．Shape that suppresses unintentional unlocking
*This product is sold only as a Cable Assembly.
For any details, please contact to HTK our sales office.
Specifiacations
| Parts No. | TAT001A00AMF |
|---|---|
| Pin Count | 4 |
| Pich [mm] |
2.00 |
| Waterproof Grade | IPX9K |
| Mounting Method/ Wiring method |
Crimping |
| Current Rating [A/Pin] |
2.5 |
| Dielectric Withstanding Voltage |
500V A.C.(r.m.s) for a minute |
| Operating Temparature Min [deg.C] |
-40 |
| Operating Temparature Max [deg.C] |
105 |
| Applicable Cable Diameter | AWG24 ~ 28 |

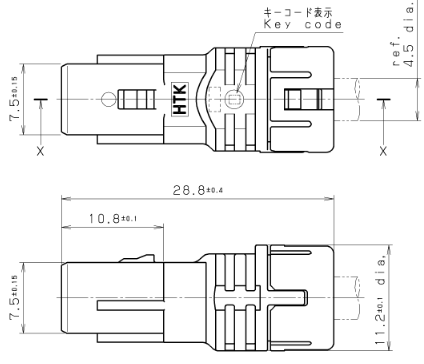

Overall View
NOTE
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
