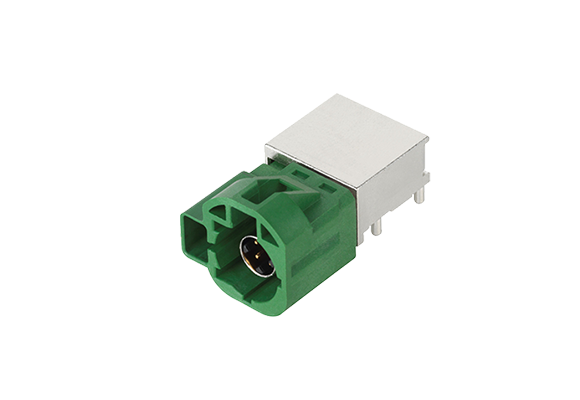

HSD Connecter

1.Mating compatibility with connectors from other manufacturers
2.Extensive track record of adoption by numerous vehicle manufacturers
3.Extensive product lineup
【Model Description】
()・・・ Number of pins
*/#・・・ Product specification
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Parts |
Appearance |
Pin Count |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Catalog |
---|---|---|---|---|---|---|---|---|
CAM-J14HN | ![]() |
4+0 | Right-angle DIP VE |
3 | 500V A.C.(r.m.s.) for a minute | -40 | 105 | DL0021_MMICAMJ14HK39L_BI_CL.pdf |
CAM-J14HR | ![]() |
4+0 | Right-angle DIP VE Reverse |
3 | 500V A.C.(r.m.s.) for a minute | -40 | 105 | DL0021_MMICAMJ14HK39L_BI_CL.pdf |
CAM-K39LN | ![]() |
4+0 | Low-height Right-angle DIP VE |
3 | 500V A.C.(r.m.s.) for a minute | -40 | 105 | DL0021_MMICAMJ14HK39L_BI_CL.pdf |
CAM-K73LN | ![]() |
4+0 | Low-height Right-angle DIP |
3 | 500V A.C.(r.m.s.) for a minute | -40 | 105 | DL0022_MMICAMK23HN-HR-LRS-K73LN-K23SN_BI_CL.pdf |
CAM-K73LR | ![]() |
4+0 | Low-height Right-angle DIP Reverse |
3 | 500V A.C.(r.m.s.) for a minute | -40 | 105 | DL0022_MMICAMK23HN-HR-LRS-K73LN-K23SN_BI_CL.pdf |
CAM-K23HN | ![]() |
4+0 | Straight DIP | 3 | 500V A.C.(r.m.s.) for a minute | -40 | 105 | DL0022_MMICAMK23HN-HR-LRS-K73LN-K23SN_BI_CL.pdf |
CAM-K23SNP | ![]() |
4+0 | Low-height Straight DIP | 3 | 500V A.C.(r.m.s.) for a minute | -40 | 105 | DL0022_MMICAMK23HN-HR-LRS-K73LN-K23SN_BI_CL.pdf |
CAM-L93 | ![]() |
4+0 | Low-height Straight DIP VE | 3 | 500V A.C.(r.m.s.) for a minute | -40 | 105 | DL0021_MMICAMJ14HK39L_BI_CL.pdf |
IAM-K87 | ![]() |
4+0 | Cable Jack Straight | 1.5 | 500V A.C.(r.m.s.) for a minute | -40 | 105 | DL0025_MMIIAM-K88-K87-J15ULRAP2-K87SP2-L53-L69-L54_BI_CL.pdf |
IAM-J15L | ![]() |
4+0 | Cable Jack Angle Left | 1.5 | 500V A.C.(r.m.s.) for a minute | -40 | 105 | DL0025_MMIIAM-K88-K87-J15ULRAP2-K87SP2-L53-L69-L54_BI_CL.pdf |
IAM-J15U | ![]() |
4+0 | Cable Jack Angle Down | 1.5 | 500V A.C.(r.m.s.) for a minute | -40 | 105 | DL0025_MMIIAM-K88-K87-J15ULRAP2-K87SP2-L53-L69-L54_BI_CL.pdf |
IAM-K88 | ![]() |
4+0 | Cable Plug Straight | 1.5 | 500V A.C.(r.m.s.) for a minute | -40 | 105 | DL0025_MMIIAM-K88-K87-J15ULRAP2-K87SP2-L53-L69-L54_BI_CL.pdf |
CAM-K22LN | ![]() |
4+2 | Low-height Right-angle DIP VE |
5 | 500V A.C.(r.m.s.) for a minute | -40 | 105 | DL0023_MMICAMK22LN-LR-K24-K72LN-K83-K56-L44_BI_CL.pdf |
CAM-K22LR | ![]() |
4+2 | Low-height Right-angle DIP VE Reverse |
5 | 500V A.C.(r.m.s.) for a minute | -40 | 105 | DL0023_MMICAMK22LN-LR-K24-K72LN-K83-K56-L44_BI_CL.pdf |
CAM-K72LN | ![]() |
4+2 | Low-height Right-angle DIP |
5 | 500V A.C.(r.m.s.) for a minute | -40 | 105 | DL0023_MMICAMK22LN-LR-K24-K72LN-K83-K56-L44_BI_CL.pdf |
CAM-K24 | ![]() |
4+2 | Straight DIP | 5 | 500V A.C.(r.m.s.) for a minute | -40 | 105 | DL0023_MMICAMK22LN-LR-K24-K72LN-K83-K56-L44_BI_CL.pdf |
CAM-K24SNP | ![]() |
4+2 | Low-height Straight DIP | 5 | 500V A.C.(r.m.s.) for a minute | -40 | 105 | DL0023_MMICAMK22LN-LR-K24-K72LN-K83-K56-L44_BI_CL.pdf |
CAM-K24HR | ![]() |
4+2 | Straight DIP Reverse | 5 | 500V A.C.(r.m.s.) for a minute | -40 | 105 | DL0023_MMICAMK22LN-LR-K24-K72LN-K83-K56-L44_BI_CL.pdf |
IAM-K87SP2 | ![]() |
4+2 | Cable Jack Straight | 3 | 500V A.C.(r.m.s.) for a minute | -40 | 105 | DL0025_MMIIAM-K88-K87-J15ULRAP2-K87SP2-L53-L69-L54_BI_CL.pdf |
CAM-K83 | ![]() |
4+4 | Low-height Right-angle DIP |
5 | 500V A.C.(r.m.s.) for a minute | -40 | 105 | DL0023_MMICAMK22LN-LR-K24-K72LN-K83-K56-L44_BI_CL.pdf |
CAM-K56 | ![]() |
4+8 | Low-height Right-angle DIP |
5 | 500V A.C.(r.m.s.) for a minute | -40 | 105 | DL0023_MMICAMK22LN-LR-K24-K72LN-K83-K56-L44_BI_CL.pdf |
