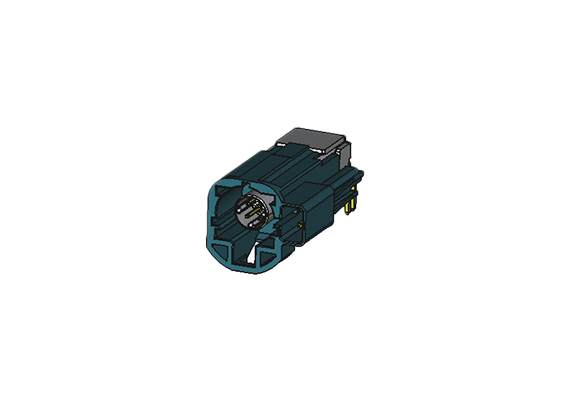

CAM-K22LR

１．Mating compatibility with connectors from other manufacturers
２．Extensive track record of adoption by numerous vehicle manufacturers
３．Extensive product lineup

【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification

  • Parts No. CAM-K22LR
    Pin Count 4+2
    Mounting Method/
    Wiring method    		 Low-height Right-angle DIP VE Reverse
    Current Rating
    [A/Pin]    		 5
    Dielectric Withstanding
    Voltage    		 500V A.C.(r.m.s.) for a minute
    Operating Temparature
    Min
    [deg.C]    		 -40
    Operating Temparature
    Max
    [deg.C]    		 105

  • The product information in this data is for reference only.
    This is subject to change without notice.
    Contact our sales staff for further information before considering or ordering any of our products.

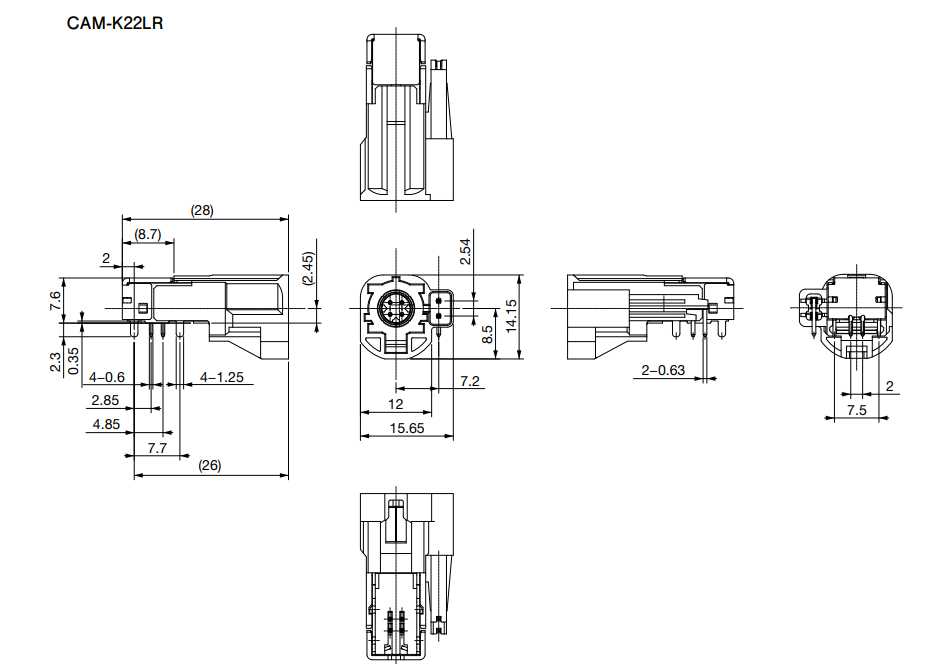

    Please request the Engineering Drawing for the most current and accurate design information.
