Board to Cable Connecters USCAR-30 Connecter

CAM-K78A

Outline

1.Compliant with USCAR-30 standard
2.Mating compatibility with connectors from other manufacturers
3.Extensive track record of adoption by numerous vehicle manufacturers

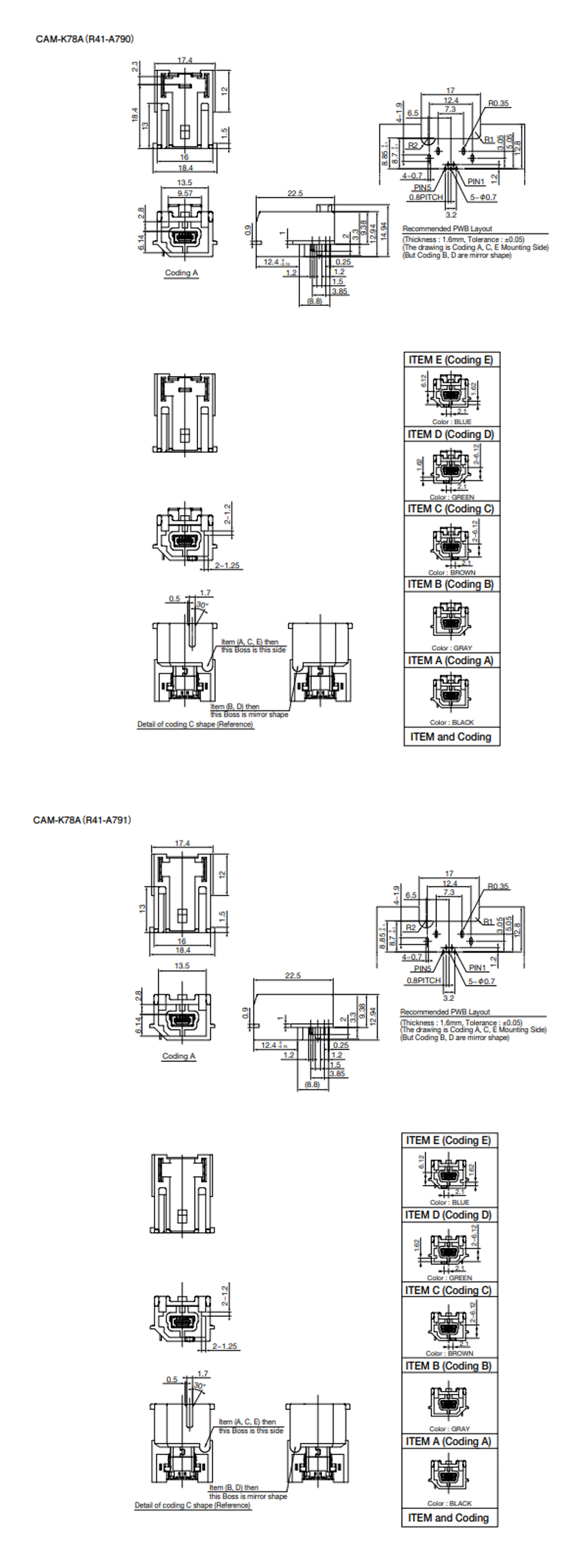

【Model Description】
()・・・ Number of pins
*/#・・・ Product specification

Specifications

Parts No. CAM-K78A
Pin Count 5
Mounting Method/
Wiring method
Right-angle DIP
Current Rating
[A/Pin]
2.4
Dielectric Withstanding
Voltage
100V A.C.(r.m.s.) for a minute
Operating Temparature
Min
[deg.C]
-40
Operating Temparature
Max
[deg.C]
85

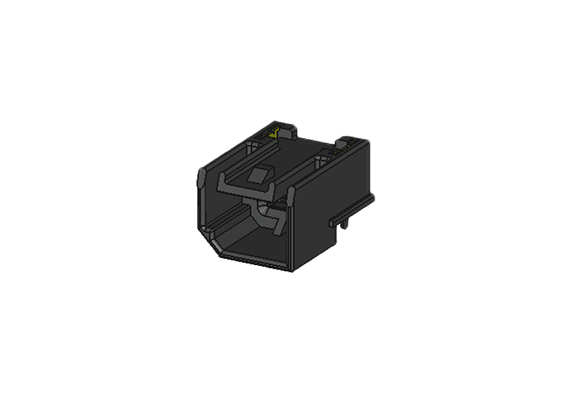

Overall View

NOTE

The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
