Target applications: Automotive antenna, camera and monitor.

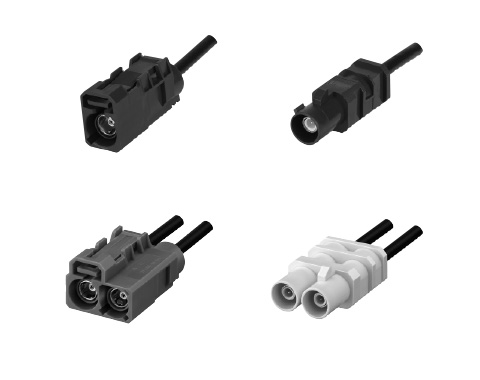

This is a single-pin coaxial connector with locking feature used for antenna signal and image data transmission.
Features
1.Applicable to automotive antennas for radio-frequency signal transmission.
2.Inner contact and outer contact are crimped together.
3.Each coding (mating key) is available.
4.Compliant with RoHS Directive.
-
-
Electric Characteristics
Rated Voltage :60V DC max.
Rated Current :1A DC max.
Characteristic Impedance :50Ω
Insertion Loss :
0.15dB max. (0 to 1GHz)
0.25dB max. (1 to 2.5GHz)
0.35dB max. (2.5 to 4GHz)
Return Loss :
15.6dB min. (0 to 2GHz)
14.0dB min. (2 to 4GHz)Mechanical Characteristics
Life (Mating Cycle) : 25 times
Total Insertion Force : ≦25N (Dual type : ≦50N)
Total Withdrawal Force : ≦25N (Dual type : ≦50N) -

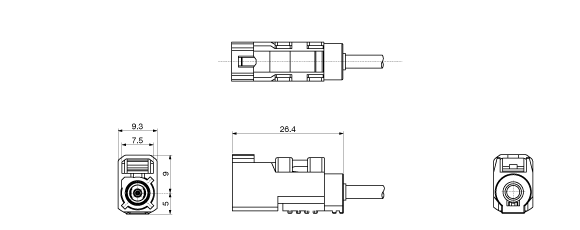

IDM-K68

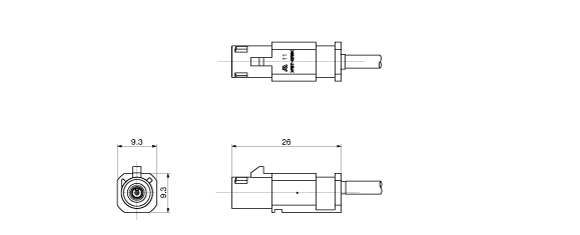

IDM-K86

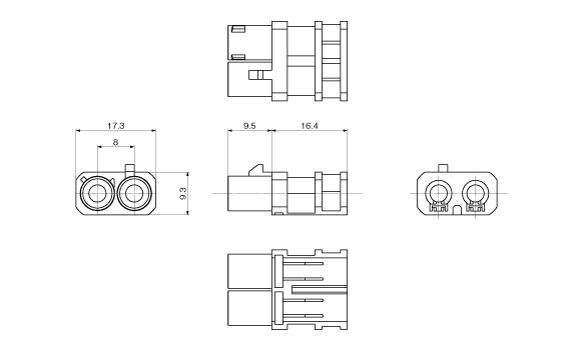

IDM-K68W
IDM-K86W
Unit:mm
-
*Any products mentioned in this catalog are subject to any modification in their appearance and others for improvements without prior notification.
*The details listed here are not a guarantee of the individual products at the time of ordering. When using the products, you will be asked to check their specifications. -
