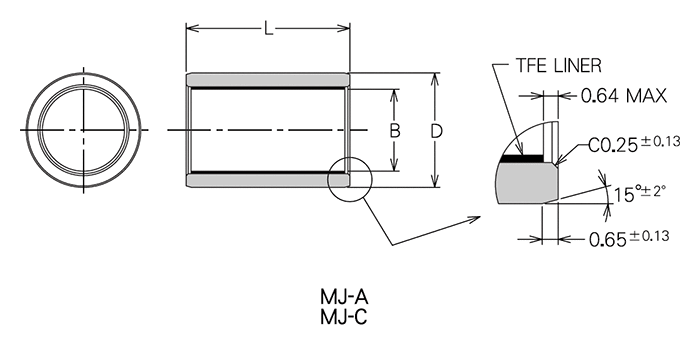

MJ-A, MJ-C

Journal Bearing PTFE Liner Plain Type

Sleeve bearings are non-self-aligning bearings used in wide range of applications from aerospace to industrial machines.
We offer sleeve bearings with a self-lubricating liner installed on the inner diameter, which does not require lubrication for, various sizes.
Please consult with our sales unit when designing for special purposes.

Feature of a Product

Self lubricating

Dimensions in mm

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Part No.	oB*1 0/-0.025	øD*2	Approx. Weight (Aluminium) [g]	Approx. Weight (Stainless Steel) [g]	L5 ±0.2	L6 ±0.2	L7 ±0.2	L8 ±0.2	L9 ±0.2	L10 ±0.2	L12 ±0.2	L14 ±0.2	L16 ±0.2	L18 ±0.2	L20 ±0.2	L22 ±0.3	L24 ±0.3	L26 ±0.3	L28 ±0.3	L30 ±0.3	L32 ±0.3	L34 ±0.3	L36 ±0.3	L38 ±0.3	L40 ±0.3	L42 ±0.3	L44 ±0.3	L46 ±0.3	L48 ±0.3	L50 ±0.3	L52 ±0.5	L54 ±0.5	L56 ±0.5	L58 ±0.5	L60 ±0.5	L62 ±0.5	L64 ±0.5	L66 ±0.5	L68 ±0.5	L70 ±0.5	L72 ±0.5	L74 ±0.5	L76 ±0.5	L78 ±0.5	L80 ±0.5
MJ06	6.035	10	0.14×L	0.40×L	5	6	7	8	9	10
MJ08	8.035	11	0.13×L	0.35×L	5	6	7	8	9	10	12	14
MJ09	9.035	13	0.20×L	0.54×L	5	6	7	8	9	10	12	14	16	18	20
MJ10	10.035	14	0.21×L	0.59×L	5	6	7	8	9	10	12	14	16	18	20	22	24
MJ12	12.035	16	0.25×L	0.69×L	5	6	7	8	9	10	12	14	16	18	20	22	24	26
MJ14	14.035	18	0.28×L	0.79×L	5	6	7	8	9	10	12	14	16	18	20	22	24	26	28	30
MJ16	16.035	20	0.32×L	0.89×L	5	6	7	8	9	10	12	14	16	18	20	22	24	26	28	30	32	34
MJ18	18.035	22	0.35×L	0.98×L	5	6	7	8	9	10	12	14	16	18	20	22	24	26	28	30	32	34	36
MJ20	20.035	24	0.39×L	1.08×L	5	6	7	8	9	10	12	14	16	18	20	22	24	26	28	30	32	34	36	38
MJ22	22.035	27	0.54×L	1.51×L	5	6	7	8	9	10	12	14	16	18	20	22	24	26	28	30	32	34	36	38	40	42	44
MJ25	25.035	30	0.61×L	1.69×L	5	6	7	8	9	10	12	14	16	18	20	22	24	26	28	30	32	34	36	38	40	42	44	46	48	50
MJ28	28.035	33	0.67×L	1.87×L				8	9	10	12	14	16	18	20	22	24	26	28	30	32	34	36	38	40	42	44	46	48	50	52	54	56	58	60
MJ32	32.035	37	0.76×L	2.12×L				8	9	10	12	14	16	18	20	22	24	26	28	30	32	34	36	38	40	42	44	46	48	50	52	54	56	58	60
MJ35	35.035	40	0.82×L	2.30×L						10	12	14	16	18	20	22	24	26	28	30	32	34	36	38	40	42	44	46	48	50	52	54	56	58	60	62	64	66	68	70
MJ38	38.035	45	1.28×L	3.57×L						10	12	14	16	18	20	22	24	26	28	30	32	34	36	38	40	42	44	46	48	50	52	54	56	58	60	62	64	66	68	70
MJ40	40.035	48	1.55×L	4.33×L									16	18	20	22	24	26	28	30	32	34	36	38	40	42	44	46	48	50	52	54	56	58	60	62	64	66	68	70	72	74	76	78	80
MJ45	45.035	51	1.26×L	3.54×L									16	18	20	22	24	26	28	30	32	34	36	38	40	42	44	46	48	50	52	54	56	58	60	62	64	66	68	70	72	74	76	78	80
MJ50	50.035	57	1.64×L	4.60×L									16	18	20	22	24	26	28	30	32	34	36	38	40	42	44	46	48	50	52	54	56	58	60	62	64	66	68	70	72	74	76	78	80

scroll

(P/N)

SLEEVE

LINER

MJ-A Aluminium Alloy/Anodised or Alodined TFE

MJ-C 410 Stainless Steel TFE
*1 Tolerance Aluminium:±0.013 Stainless:0 to -0.013

1. PTFE liner permanently bonded to sleeve I.D.
2. Made to order only.

*Please consult MinebeaMitsumi for availability of bearings in this series.
