Integrates AI into Existing Equipment

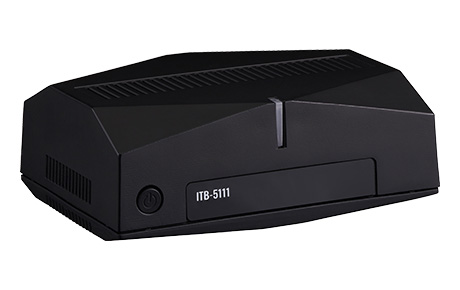

The Edge AI-Equipped Device that combines advanced AI performance with energy efficiency
MinebeaMitsumi's technical expertise condenses the advanced AI performance (40 TOPS) delivered by QualcommⓇ's latest Processor, the Dragonwing™ IQ-8275 into a compact, easy-to-install and user-friendly device.
There’s no need for a complete network overhaul or large-scale cloud infrastructure. Simply retrofit it into
existing cameras and equipment to enable advanced AI processing at the edge.
Applications
Monitoring and visualization of crowd conditions
Fraud detection at self-checkout counters
Enhancement of existing security cameras
FA visual inspection and robot control
- Three Advantages Accelerating Edge AI's Adoption
- Examples of Applications and Solutions
- Product Specifications
Three Advantages Accelerating Edge AI's Adoption
leverage existing infrastructure
There’s no need to build an AI system from scratch. Since this device supports a full range of the latest interfaces including two Gigabit Ethernet ports, Wireless Communication, and USB 5 Gbps, you can quickly and cost-effectively add AI capabilities to a system simply by connecting it between the existing network cameras and POS systems.
with low power consumption
With powerful 40 TOPS-level AI performance, it can simultaneously process multiple high-resolution video streams. And by adopting a cutting-edge power-efficient architecture designed for the mobile sector, it minimizes heat generation and power consumption despite its high processing power. This reduces installation constraints and helps to reduce operating costs.
protection independent of the cloud
All AI-based detection and analysis is performed entirely on-device. Since data transmission to the cloud is not required, this significantly reduces the risk of external information leaks, enabling ultra-fast response times with no communication latency. Furthermore, since the system can be configured to send only the analyzed text data and change notifications, it minimizes the risk of personal or confidential information leaks.
Examples of Applications and Solutions

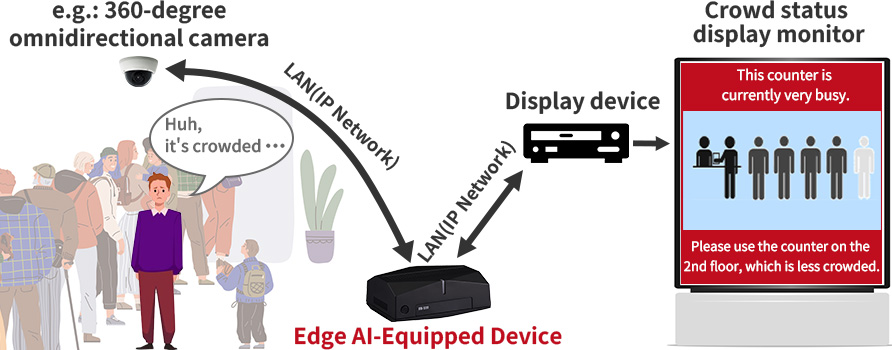

Monitoring and visualization of crowd conditions
The Edge AI-Equipped Device performs local analysis of footage from 360-degree omnidirectional cameras, counting the number of people in a given area in real time to monitor crowd levels. By sending notifications to digital signage or staff devices when the number of people exceeds a certain threshold, it helps to improve customer satisfaction and streamline operations.
- Enables you to reduce waiting times at checkout and service counters, preventing customer complaints
- Make it easy to optimize store layout based on customer flow analysis
- No cloud connection required, respecting customer privacy

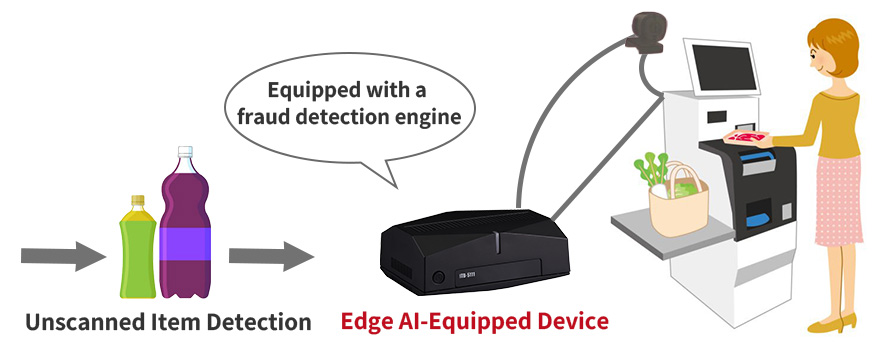

Detect fraudulent behavior at self-checkout counters
USB cameras or other devices monitor operations at the checkout counters. The embedded image recognition AI instantly detects missed scans and suspicious movements on-device and triggers an alert in coordination with the POS system.
- Reduces loss rates (fraud and errors) arising from the introduction of self-checkout counters
- Reduces store staff workload from visual monitoring
- Add-on option for existing POS systems and camera setups
Click here to request materials or inquire about The Edge AI-Equipped Device

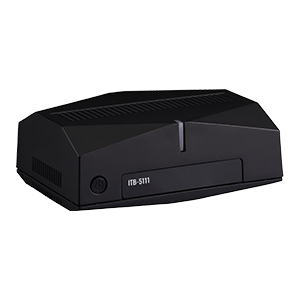

Product Specifications
|
Item |
The Edge AI-Equipped Device -Model : ITB-5111 | Specifications Overview |
|---|---|
| Supported OS | Linux |
| Processor (SoC) | Qualcomm® Dragonwing™ processor IQ-8275 |
| AI Processing Performance | 40 TOPS |
| Memory / Storage | LPDDR5 8GB～ / eMMC 64GB～ |
| Expansion Storage | M.2 NVME SSD (Option) |
| Wireless Communication | IEEE 802.11 a/b/g/n/ac/ax / Bluetooth® 5.3 |
| Wired LAN | Gigabit Ethernet (GbE) × 2 ports (WoL support) |
| USB Ports | USB 5Gbps Type-A × 2 ports |
| Video Output | HDMI 1.4b Type-A 1ch (Option) |
| Dimensions | 90 × 125 × 65 mm |
| Power Supply | DC12V / 4A (AC Adaptor) |
| LED Indicator | Full-color LED |
| Switches | Power button, Reset button |
| Remote Control Reception | IR (Infrared) Receiver |
| Compliance & Certification | Radio Law, Telecommunications Business Law, VCCI Class B |
- * Qualcomm and Dragonwing are trademarks or registered trademarks of Qualcomm Incorporated.
- * The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
- * The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Mitsumi Electric Co., Ltd. is under license.
- * Other company names and product names mentioned are trademarks or registered trademarks of their respective companies.
