Precision Rolled Ball Screw FB Seriess
Low cost and short lead times (accuracy grades C3 to C7)

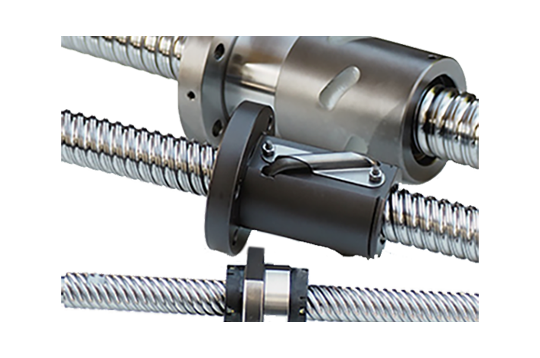

Standard Rolled Ball Screws
A wide variety of shaft diameters and leads are always in stock from φ10 to φ100
Cost Saving Short Delivery Time Readily Available
High Precision Rolled Ball Screw FB Series
High-precision rolled ball screw FB Series achieves price competitiveness and short lead times thanks to our advanced technology.
FB Series is a new offering for applications that require a high precision ground ball screw.
FB Series can help you lower cost and decrease delivery time.
スクロールできます
|
|
Ground BS |
FB Series |
Standard Rolled BS |
|---|---|---|---|
| Lead accuracy | C0 - C10 | C3 - C7 | C7 - C10 |
| Price | ★☆☆ | ★★☆ | ★★★ |
| Delivery time | ★☆☆ | ★★★ | ★★★ |
High Precision
FB Series has lead accuracy C3~C7. It is also possible to adjust axial clearance.
FB Series can be utilized in various instruments that require high accuracy such as industrial robots,semiconductor manufacturing equipment, and 3D measurement instrument.
Cost-Effective
FB Series is a highly cost-effective product even with high precision requirements, because we utilize plastic working when processing the shaft. Traditional cutting and grinding takes more time, so by utilizing plastic working our customers save time and cost.
*What is plastic working?
A process which extrudes material into a mold. Advantages of plastic working are increased strength and superior surface smoothness of the shaft.
Dependable Short Lead Times
We can deliver products in consistently short lead times due to our large inventory of plastic worked shafts.
Customize
We can design and manufacture the size of nut and shaft shape required for your unique specifications.
Example of Uses
Industrial robots, semiconductor manufacturing equipment, 3D measurement instrument,lithography,high pressure welding machine etc.
*We can offer concrete examples and a suitable suggestion. Please do not hesitate to contact us from below theCONTACT FORM.
FB Series Shaft Diameter and Lead Table
スクロールできます
|
Lead |
||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 5 | 6 | 8 | 10 | 12 | 15 | 16 | 20 | 25 | 30 | 32 | 40 | 50 | 60 | ||
| Shaft diameter |
8 | ● | ● | ● | ||||||||||||
| 10 | ● | |||||||||||||||
| 12 | ● | ● | ||||||||||||||
| 15 | ● | ● | ● | ● | ● | |||||||||||
| 16 | ● | |||||||||||||||
| 20 | ● | ● | ● | ● | ● | |||||||||||
| 25 | ● | ● | ● | |||||||||||||
| 28 | ● | ● | ||||||||||||||
| 32 | ● | ● | ● | ● | ● | ● | ||||||||||
| 36 | ● | |||||||||||||||
| 40 | ● | ● | ● | |||||||||||||
| 50 | ● | |||||||||||||||
Standard Rolled Ball Screw Series
Standard Rolled Ball Screws Offer an Expanded Solution
Standard Rolled Ball Screw Series has a wide range of shaft diameters from φ10 to φ100.
It can be utilized in a wide range of instruments with a proven track record of C7-level lead accuracy.
Wide Range of Shaft Diameters
Shaft diameters from Φ10 to φ100 are available.
Particularly large sizes of φ63, φ80, and φ100 are skillfully manufactured by applying our decades-long manufacturing expertise.
C7-Level Lead Accuracy
In addition to C10-level lead accuracy, C7-level lead accuracy is available to meet your custom specification.
Price and Delivery Advantage
Traditionally large size ball screws are expensive with long delivery times. We have significant inventory of large sizes including plastic worked shafts. By utilizing Standard Rolled Ball Screw Series you shorten delivery time, reduce production time, and save on costs.
Customize
We can design and manufacture the size of nut and shaft shape required for your unique specifications.
Example of Uses
Medical equipment, testing equipment, large lifts, large industrial robots
*We can offer concrete examples and a suitable suggestion. Please do not hesitate to contact us from below the CONTACT FORM.
Standard Rolled Ball Screw Series Shaft Diameter and Lead Table
スクロールできます
| Shaft diameter (mm) |
Lead (mm) |
Max of overall length (mm) | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 4 | 5 | 5.08 | 6 | 6.35 | 8 | 10 | 12 | 12.7 | 16 | 20 | 24 | 25 | 32 | 36 | 40 | 50 | ||
| φ10 | 800 | ||||||||||||||||||
| φ12 | 1000 | ||||||||||||||||||
| φ12.7 | 1000 | ||||||||||||||||||
| φ14 | 1500 | ||||||||||||||||||
| φ15 | 1500 | ||||||||||||||||||
| φ16 | 1500 | ||||||||||||||||||
| φ18 |
1500 |
||||||||||||||||||
| φ20 | 2000 | ||||||||||||||||||
| φ22 | 2000 | ||||||||||||||||||
| φ25 | 2500 | ||||||||||||||||||
| φ25.4 | 2000 | ||||||||||||||||||
| φ28 | 3000 | ||||||||||||||||||
| φ32 | 3500 | ||||||||||||||||||
| φ36 | 3500 | ||||||||||||||||||
| φ38.1 | 3000 | ||||||||||||||||||
| φ40 | 4000 | ||||||||||||||||||
| φ45 | 5500 | ||||||||||||||||||
| φ50 | 5500 | ||||||||||||||||||
| φ60 | 5500 | ||||||||||||||||||
| φ63 | 5500 | ||||||||||||||||||
| φ80 | 5500 | ||||||||||||||||||
| φ100 | 5500 | ||||||||||||||||||
※…Left-hand threads are also available, designated by the light blue area.
