CJ01 Series
１．30A capability by high-conductivity terminal materials
２．Low insertion/extraction force with compact Design
３．High heat resistance (125°C)
【Model Description】
()・・・ Number of pins
＊・・・ Product specification
Specifiacations
| Parts No. | CJ01A6-03B-0* |
|---|---|
| Pin Count | 3 |
| Pich [mm] |
5.80 |
| Waterproof Grade | IP67 |
| Mounting Method/ Wiring method |
Crimping |
| Current Rating [A/Pin] |
30.00 MAX |
| Dielectric Withstanding Voltage |
2,200V A.C.(r.m.s) for a minute |
| Operating Temparature Min [deg.C] |
-55 |
| Operating Temparature Max [deg.C] |
125 |
| Cable Jacket Diameter [Φ] |
＊=1:Φ3.20～Φ3.80 ＊=2:Φ3.70～Φ4.30 ＊=3:Φ2.60～Φ3.30 |

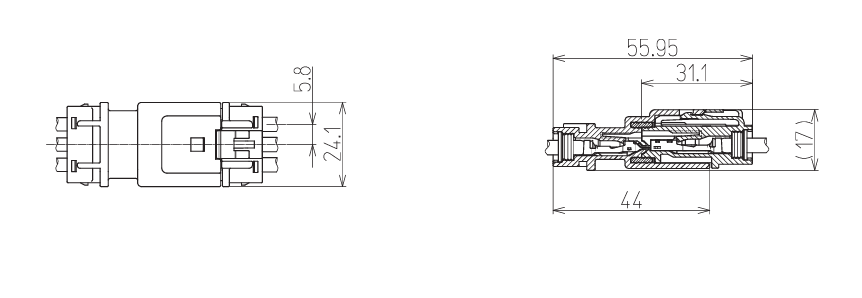

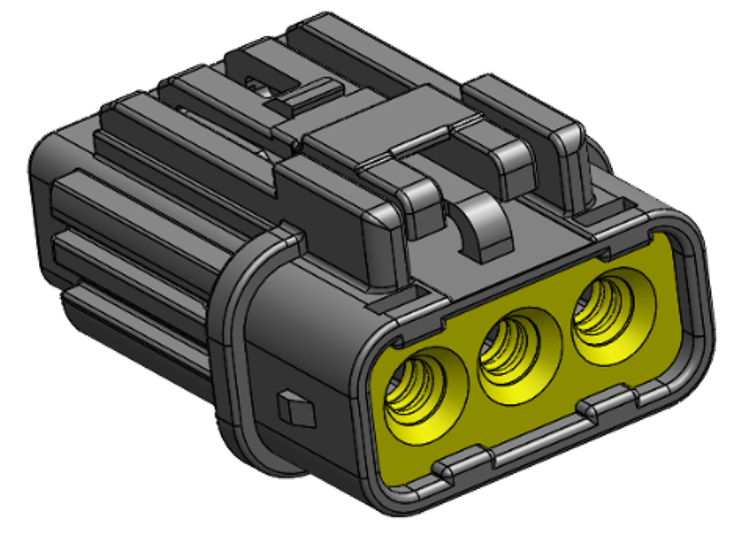

Overall View
NOTE
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
