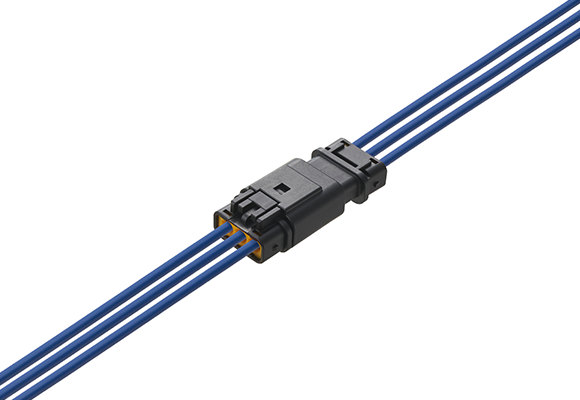

High Current 5.80mm Pitch Waterproof Connector
CJ01 Series
１．30A capability by high-conductivity terminal materials
２．Low insertion/extraction force with compact Design
３．High heat resistance (125°C)
【Model Description】
()・・・ Number of pins
＊・・・ Product specification
High Current 5.80mm Pitch Waterproof Connector Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Waterproof Grade |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Catalog |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

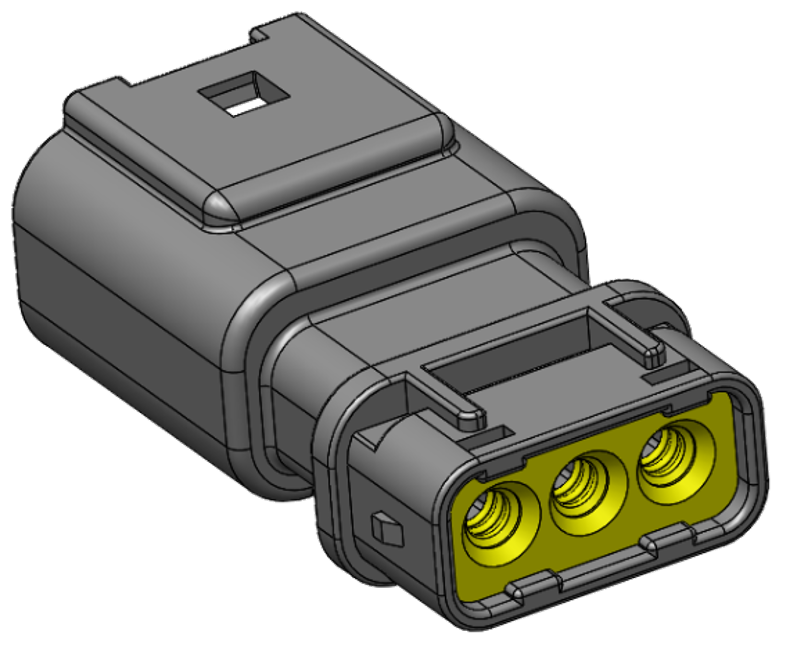

| CJ01A6-03B-0* |  |
3 | 5.80 | IP67 | Crimping | 30.00 MAX | 2,200V A.C.(r.m.s) for a minute | -55 | 125 | ＊=1:Φ3.20～Φ3.80 ＊=2:Φ3.70～Φ4.30 ＊=3:Φ2.60～Φ3.30 |
DL0012_MCICJ01_BI_CL.pdf | |

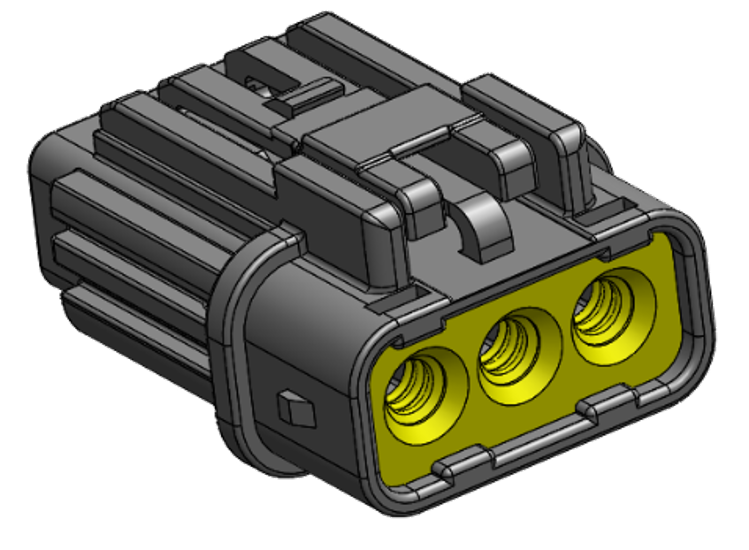

| CJ01A5-03B-0* |  |
3 | 5.80 | IP67 | Crimping | 30.00 MAX | 2,200V A.C.(r.m.s) for a minute | -55 | 125 | ＊=1:Φ3.20～Φ3.80 ＊=2:Φ3.70～Φ4.30 ＊=3:Φ2.60～Φ3.30 |
DL0012_MCICJ01_BI_CL.pdf | |

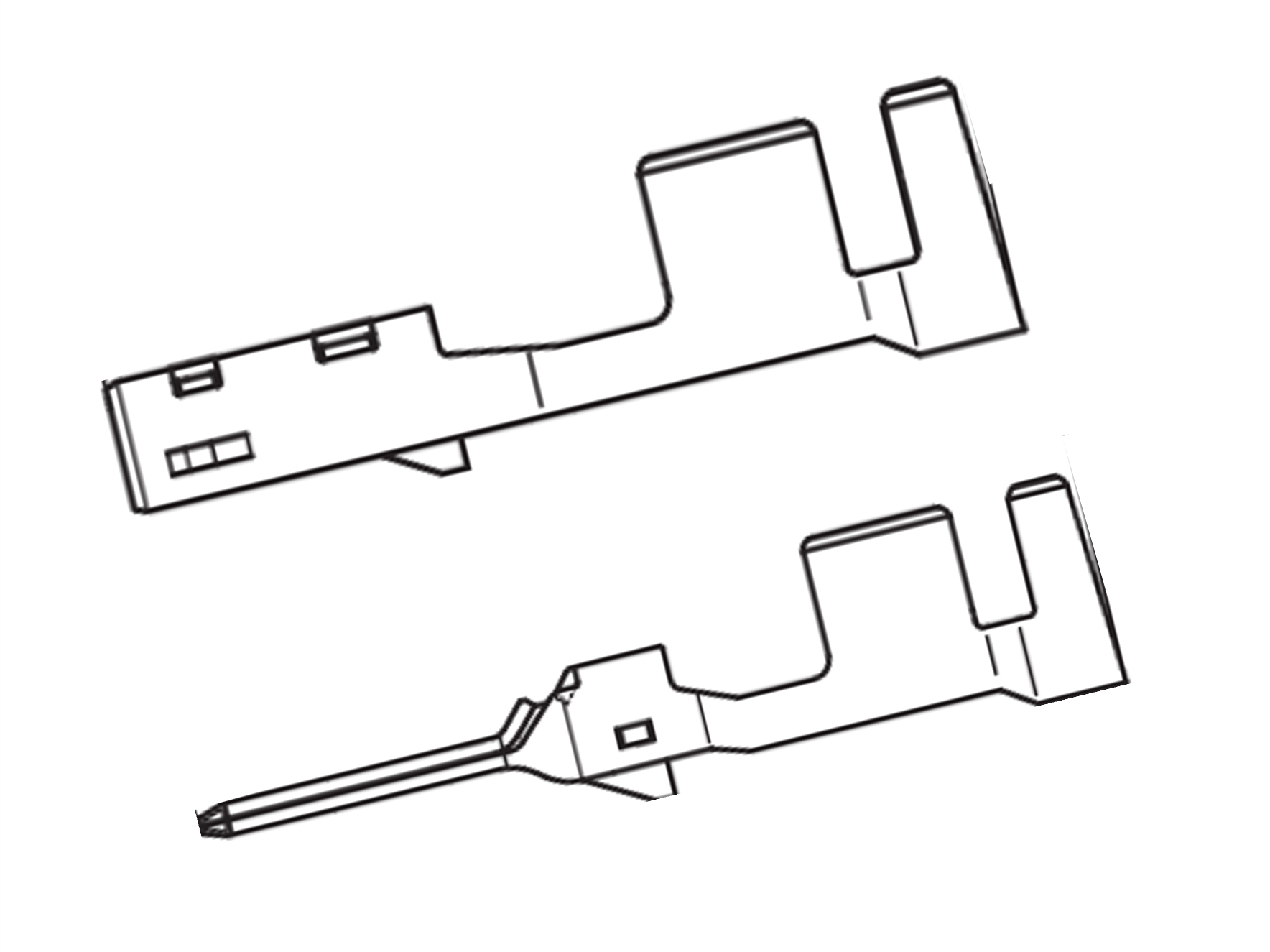

| CJ01C*-010A |  |
Crimping | -55 | 125 | Φ4.10 MAX | AWG#16～14 | DL0012_MCICJ01_BI_CL.pdf | |||||
| CJ01C*-020A |  |
Crimping | -55 | 125 | Φ4.30 MAX | AWG#12～10 | DL0012_MCICJ01_BI_CL.pdf | |||||
| CJ01C*-030A |  |
Crimping | -55 | 125 | Φ3.30 MAX | AWG#16～14 | DL0012_MCICJ01_BI_CL.pdf | |||||
| CJ01E0-01N0 |  |
Dummy Plug | -55 | 125 | DL0012_MCICJ01_BI_CL.pdf |
