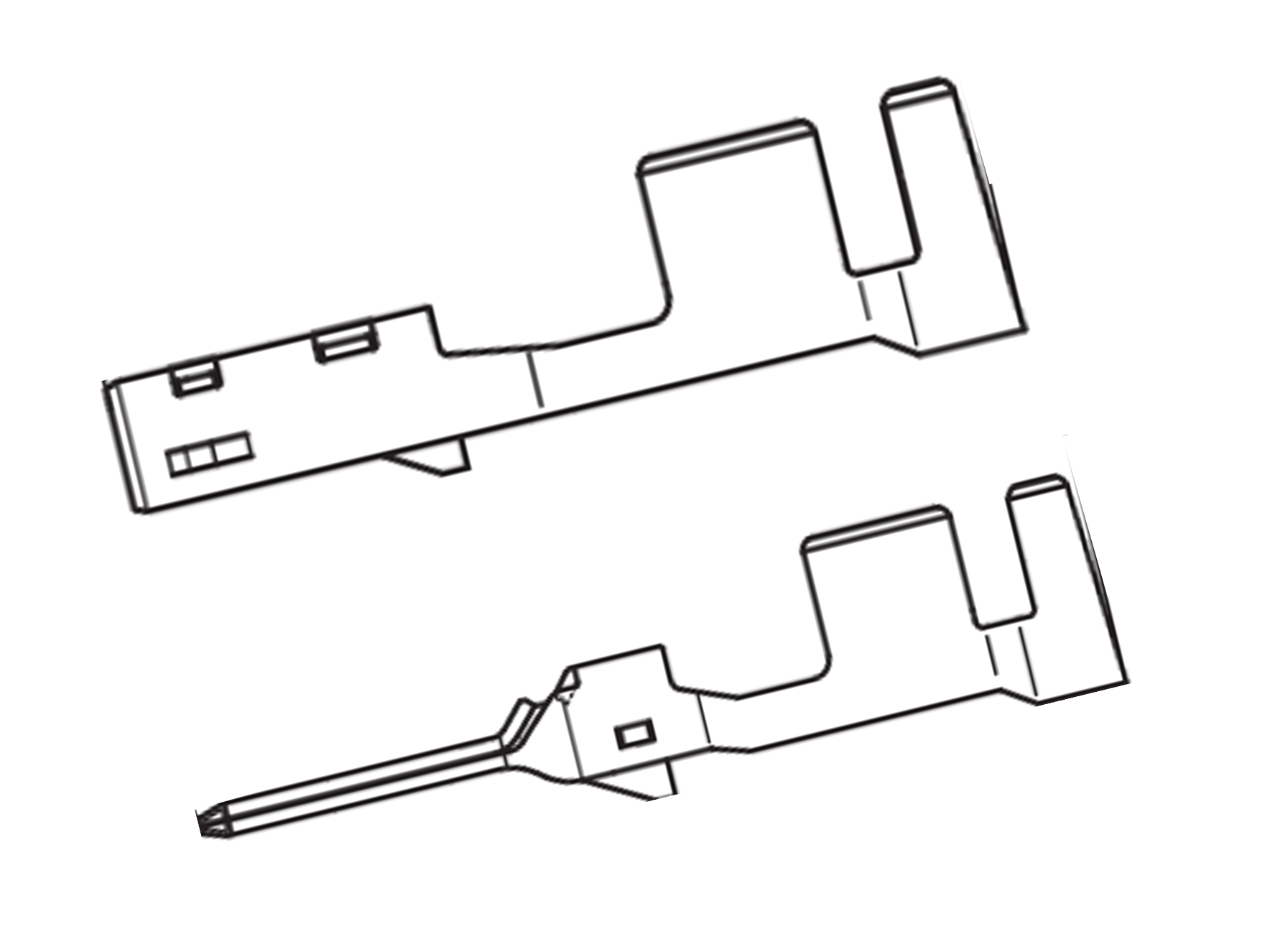

CJ01C*-030A

CJ01 Series
１．30A capability by high-conductivity terminal materials
２．Low insertion/extraction force with compact Design
３．High heat resistance (125°C)

【Model Description】
()・・・ Number of pins
＊・・・ Product specification

  • Parts No. CJ01C*-030A
    Mounting Method/
    Wiring method    		 Crimping
    Operating Temparature
    Min
    [deg.C]    		 -55
    Operating Temparature
    Max
    [deg.C]    		 125
    Cable Jacket Diameter
    [Φ]    		 Φ3.30 MAX
    Applicable Cable Diameter AWG#16～14

  • The product information in this data is for reference only.
    This is subject to change without notice.
    Contact our sales staff for further information before considering or ordering any of our products.

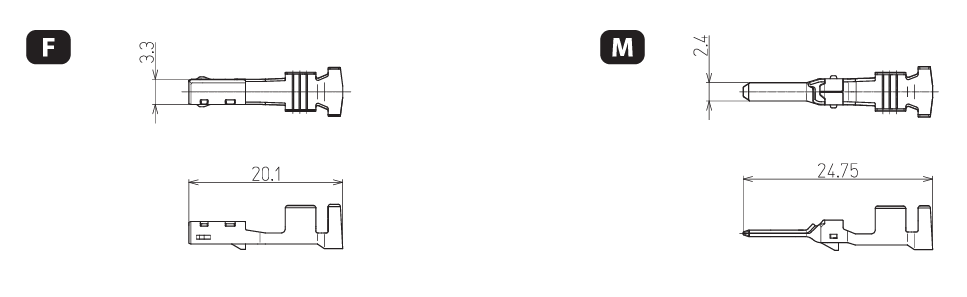

    Please request the Engineering Drawing for the most current and accurate design information.
