Outline
CL07C Series
１．Drip-proof product with Single-Pin specification
２．Housing lock is easy to release, and the lock section is compactly designed
３．Waterproof performance compliant with JIS X 0920 IPX4
【Model Description】
()・・・ Number of pins
＊・・・ Product specification
Specifiacations
| Parts No. | CL07C01M |
|---|---|
| Pin Count | 1 |
| Waterproof Grade | IP67 |
| Mounting Method/ Wiring method |
Crimping |
| Current Rating [A/Pin] |
12.00 MAX |
| Dielectric Withstanding Voltage |
1,700V A.C.(r.m.s) for a minute |
| Operating Temparature Min [deg.C] |
-40 |
| Operating Temparature Max [deg.C] |
105 |

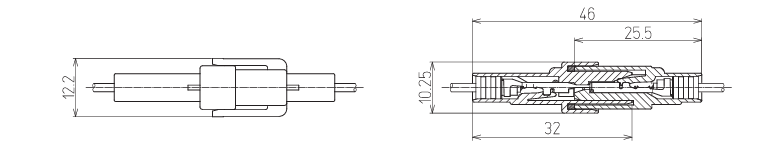

Overall View
NOTE
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
