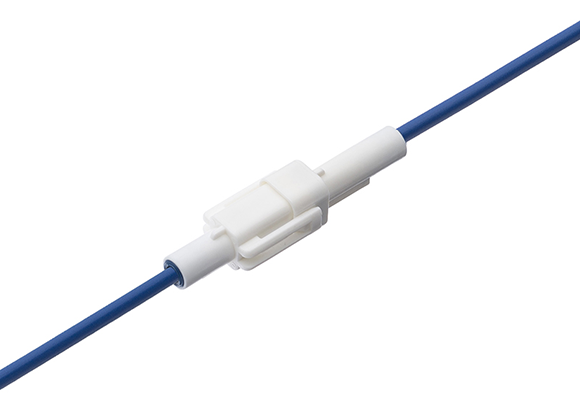

Single-Pin Waterproof Connector
CL07C Series
１．Drip-proof product with Single-Pin specification
２．Housing lock is easy to release, and the lock section is compactly designed
３．Waterproof performance compliant with JIS X 0920 IPX4
【Model Description】
()・・・ Number of pins
＊・・・ Product specification
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Waterproof Grade |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Catalog |
|---|---|---|---|---|---|---|---|---|---|---|---|

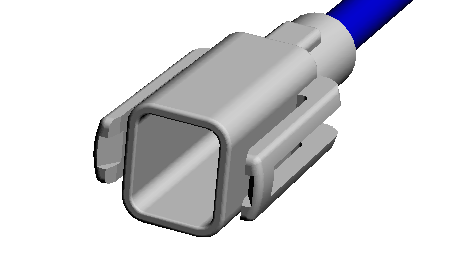

| CL07C01F |  |
1 | IP67 | Crimping | 12.00 MAX | 1,700V A.C.(r.m.s) for a minute | -40 | 105 | DL0014_MCICL07C_BI_CL.pdf | ||

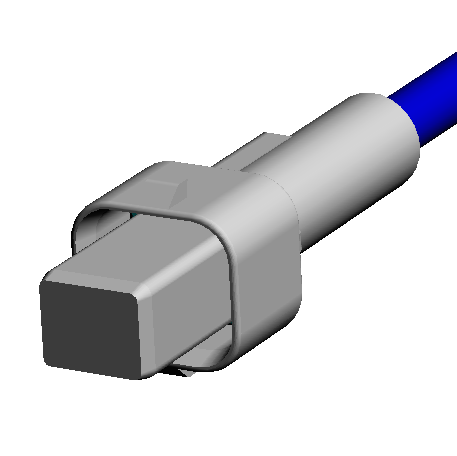

| CL07C01M |  |
1 | IP67 | Crimping | 12.00 MAX | 1,700V A.C.(r.m.s) for a minute | -40 | 105 | DL0014_MCICL07C_BI_CL.pdf | ||

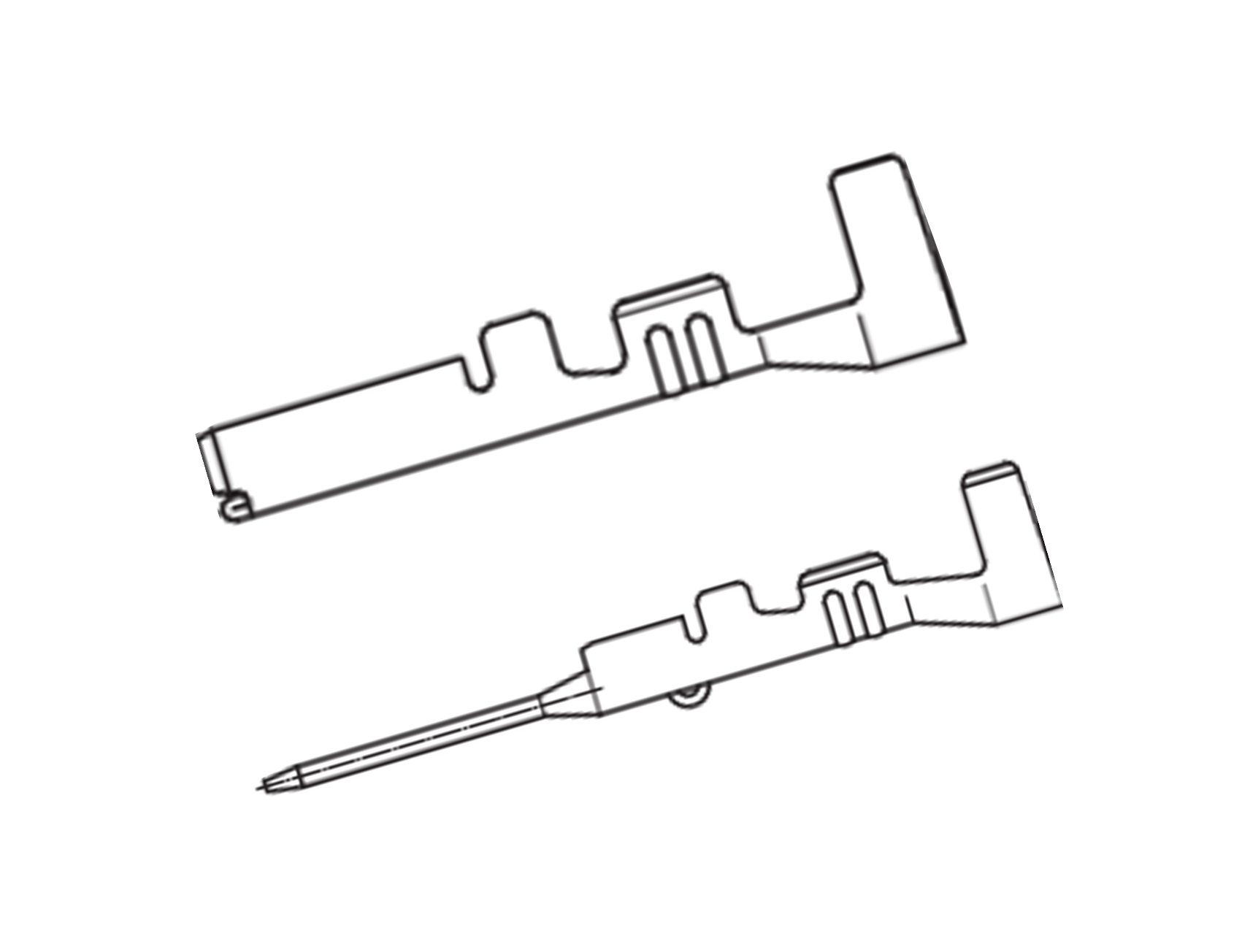

| CL07C Contact |  |
Crimping | -40 | 105 | Φ2.70MAX,Φ3.10MAX | AWG#22～16 | DL0013_MCICL07A_BI_CL.pdf | ||||

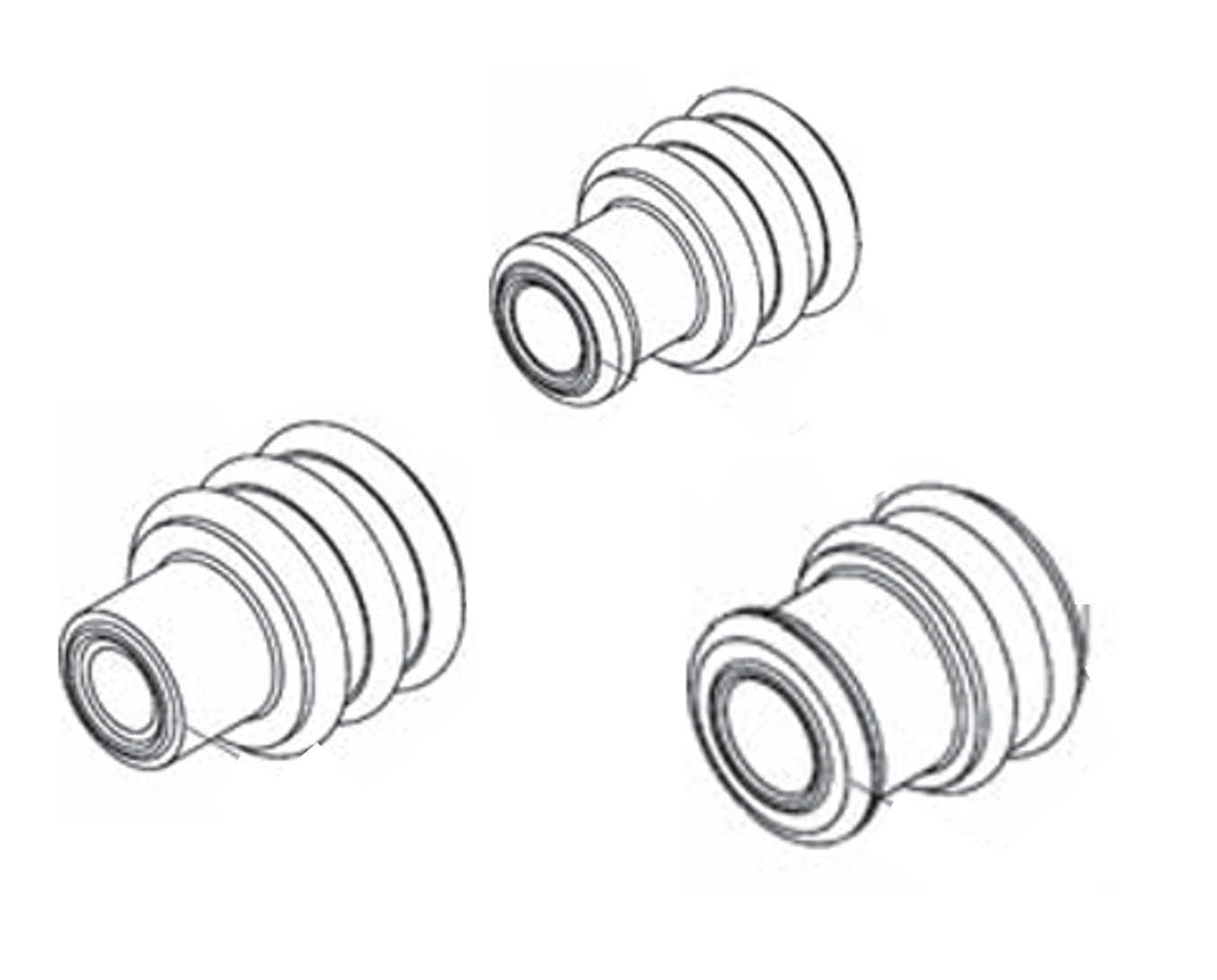

| CL07C Wireseal |  |
Wire Seal | -40 | 105 | Φ1.70～2.10 | DL0013_MCICL07A_BI_CL.pdf |
