CL07C Series
１．Drip-proof product with Single-Pin specification
２．Housing lock is easy to release, and the lock section is compactly designed
３．Waterproof performance compliant with JIS X 0920 IPX4
【Model Description】
()・・・ Number of pins
＊・・・ Product specification
-
-
Parts No. CL07C Wireseal Mounting Method/
Wiring methodWire Seal Operating Temparature
Min
[deg.C]-40 Operating Temparature
Max
[deg.C]105 Cable Jacket Diameter
[Φ]Φ1.70～2.10
-
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Parts No.
Operating Temparature
Min
[deg.C]Operating Temparature
Max
[deg.C]Cable Jacket Diameter
[Φ]Catalog

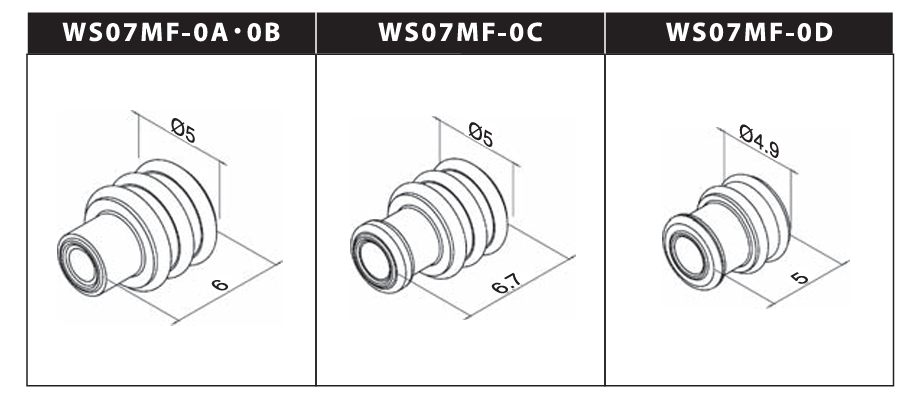

WS07MF-0A -40 105 Φ1.70～2.10 DL0014_MCICL07C_BI_CL.pdf WS07MF-0B -40 105 Φ2.10～2.70 DL0014_MCICL07C_BI_CL.pdf WS07MF-0C -40 105 Φ2.10～2.70 DL0014_MCICL07C_BI_CL.pdf WS07MF-0D -40 105 Φ2.70～3.10 DL0014_MCICL07C_BI_CL.pdf -
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
