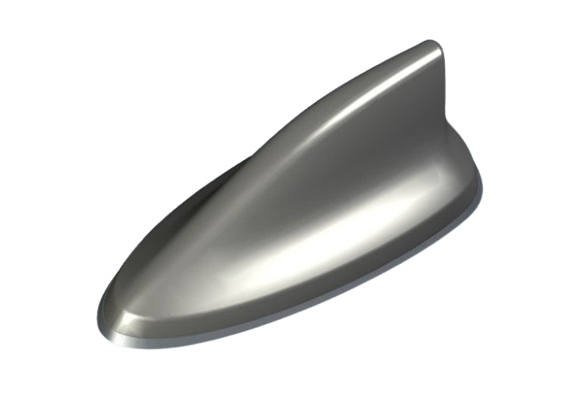

An antenna that integrates multiple media such as GPS, TEL, radio, and V2X in a shark fin-shaped case.
Overview
It is designed to match the car body and accommodate multiple media, which provides versatility.
In addition, customization of antennas according to customer specifications is possible.
Features
1. We can provide composite antennas tailored to the required media.
2. By arranging the media according to specified designs, it achieve better performance.
3. In-house integrated production, including painting the cover.
4. Our unique capture structure enables installation on the car roof.
| Item | AM | FM | GNSS | TEL |
|---|---|---|---|---|
| Reception Frequency | 522-1710KHz | 76-95MHz 87.5-108MHz 76-108MHz |
1559.052 - 1615.5 MHz | 698 - 4900MHz |
| Reception Polarization | - | - | RHCL | Vertical Polarization |
| Output Impedance | <90pF | 50Ωor75Ω | 50Ω | 50Ω |
| VSWR | - | - | - | 3.5MAX |

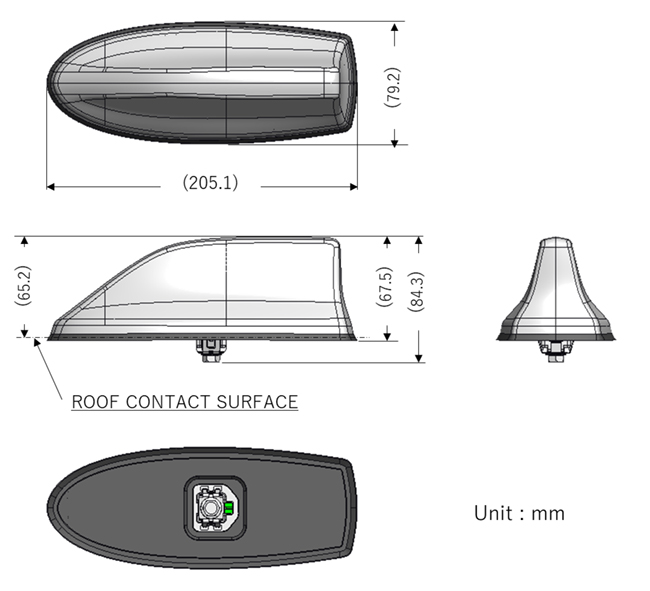

External view
