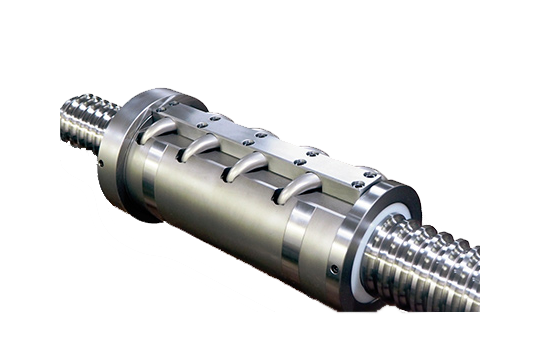

HN/HJ series are heavy load ball screws designed to replace hydraulic cylinders with electric cylinders, which we have recently standardized. We also offer products with dynamic balance compensation for ball screw and ball nut rotation beyond standard dimensions. Please contact us for more information.
HN Series
Special Design
HJ Series
The internal circulation system with return pieces achieves high-speed feed and low noise.
High Durability High Speed Longevity
HN Series
Longevity
WSpecially designed for heavy loads, the load rating is 2 to 3 times higher than that of conventional models.
High Speed Durability
The components of the ball recirculation section are designed to support high loads.
Long Life Under Harsh Conditions
The optional retainer can be used to help prevent clogging and improve lubricant retention.
Wide Range of Products
A wide variety of products are available with screw shaft diameters from φ50 to φ200.
HJ Series
High Speed Feed and Low Noise
The ball moves in a tangential direction to achieve smooth ball circulation, high speed feed, and low noise.
Compact Design
Compact design with excellent dynamic balance.
High Lead
High lead 50-70mm is available as a standard lineup.

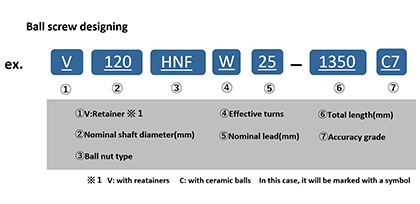

Ball Screw Part Numbering


-
*The following is an example. For more information, click on the Size Table.
スクロールできます
Lead |
Model No. |
Screw dia. |
Root dia. |
Ball dia. |
Effective turns |
Basic rated dynamic load |
Basic rated static load |
maximum axial load |

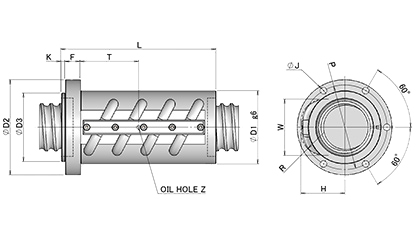

Nut dimension(mm) |
||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ℓ(mm) | d0(mm) | dr(mm) | Dw(mm) | m | Ca(kN) | C0(kN) | (kN) | D1 | D2 | D3 | L | K | F | T | P | J | W | H | R | Z | |
16 | 50HNFL16 | 50 | 40.1 | 12.7 | 2.5 x 3 | 305 | 847 | 104 | 95 | 129 | 85 | 218 | 6 | 28 | 84 | 112 | 9 | 70 | 66 | 30 | Rc1/8 |
55HNFL16 | 55 | 45.1 | 12.7 | 2.5 x 3 | 319 | 919 | 118 | 98 | 132 | 92 | 218 | 6 | 28 | 84 | 115 | 9 | 72 | 68 | 30 | Rc1/8 | |
63HNFL16 | 63 | 53.1 | 12.7 | 2.5 x 3 | 344 | 1060 | 137 | 105 | 139 | 100 | 218 | 6 | 28 | 84 | 122 | 9 | 80 | 71 | 30 | Rc1/8 | |
63HNFO16 | 2.5 x 4 | 441 | 1410 | 183 | 266 | 100 | |||||||||||||||
80HNFL16 | 80 | 70.1 | 12.7 | 2.5 x 3 | 385 | 1340 | 181 | 125 | 164 | 120 | 224 | 8 | 32 | 84 | 145 | 11 | 99 | 81 | 30 | Rc1/8 | |
80HNFP16 | 3.5 x 3 | 514 | 1880 | 252 | 272 | 100 | |||||||||||||||
100HNFL16 | 100 | 90.1 | 12.7 | 2.5 x 3 | 427 | 1700 | 231 | 146 | 190 | 140 | 226 | 10 | 32 | 84 | 168 | 13.5 | 115 | 88 | 30 | Rc1/8 | |
100HNFP16 | 3.5 x 3 | 571 | 2380 | 323 | 274 | 100 | |||||||||||||||
125HNFL16 | 125 | 115.1 | 12.7 | 2.5 x 3 | 469 | 2130 | 294 | 168 | 226 | 165 | 226 | 10 | 32 | 84 | 198 | 17.5 | 143 | 100 | 30 | Rc1/8 | |
125HNFP16 | 3.5 x 3 | 627 | 2980 | 412 | 274 | 100 | |||||||||||||||
125HNFW16 | 3.5 x 4 | 802 | 3970 | 550 | 338 | 132 | |||||||||||||||
20 | 50HNFC20 | 50 | 40.1 | 12.7 | 2.5 x 2 | 215 | 564 | 70 | 95 | 129 | 85 | 194 | 6 | 28 | 62 | 112 | 9 | 70 | 66 | 30 | Rc1/8 |
63HNFC20 | 63 |
50.5 |
15.875 | 2.5 x 2 | 322 | 883 | 110 | 116 | 155 | 105 | 210 | 8 | 32 | 65 | 136 | 11 | 90 | 82 |
40 |
Rc1/8 | |
63HNFL20 | 2.5 x 3 | 457 | 1320 | 165 | 270 | 105 | |||||||||||||||
80HNFL20 | 80 | 67.5 | 15.875 | 2.5 x 3 | 513 | 1660 | 218 | 130 | 169 | 125 | 270 | 8 | 32 | 105 | 150 | 11 | 106 | 90 | 40 | Rc1/8 | |
80HNFO20 | 2.5 x 4 | 657 | 2210 | 291 | 330 | 125 | |||||||||||||||
100HNFL20 | 100 | 87.5 | 15.875 | 2.5 x 3 | 575 | 2100 | 282 | 150 | 194 | 145 | 272 | 10 | 32 | 105 | 172 | 13.5 | 125 | 97 | 40 | Rc1/8 | |
100HNFO20 | 2.5 x 4 | 737 | 2800 | 376 | 332 | 125 | |||||||||||||||
125HNFL20 | 125 | 112.5 | 15.875 | 2.5 x 3 | 639 | 2660 | 361 | 178 | 236 | 170 | 280 | 10 | 40 | 105 | 208 | 17.5 | 148 | 114 | 40 | Rc1/8 | |
125HNFO20 | 2.5 x 4 | 818 | 3540 | 480 | 340 | 125 | |||||||||||||||
140HNFL20 | 140 | 127.5 | 15.875 | 2.5 x 3 |
673 |
2990 | 408 | 193 | 251 | 180 | 280 | 10 | 40 | 105 | 223 | 17.5 | 163 | 120 | 40 | Rc1/8 | |
140HNFO20 | 2.5 x 4 | 860 | 3990 | 545 | 340 | 125 |
