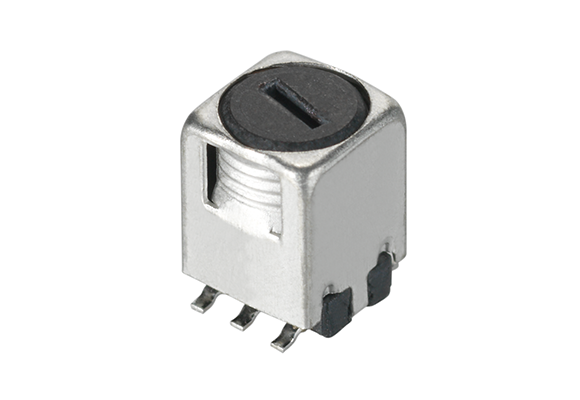

Features
1,A lineup of both variable and fixed structures
2,Variable type can adjust the inductance value and can absorb variations in microphones.
3,By improving the current value, we can cope with long-distance sensors and strengthen the external noise characteristics that are problematic.
Dimensions

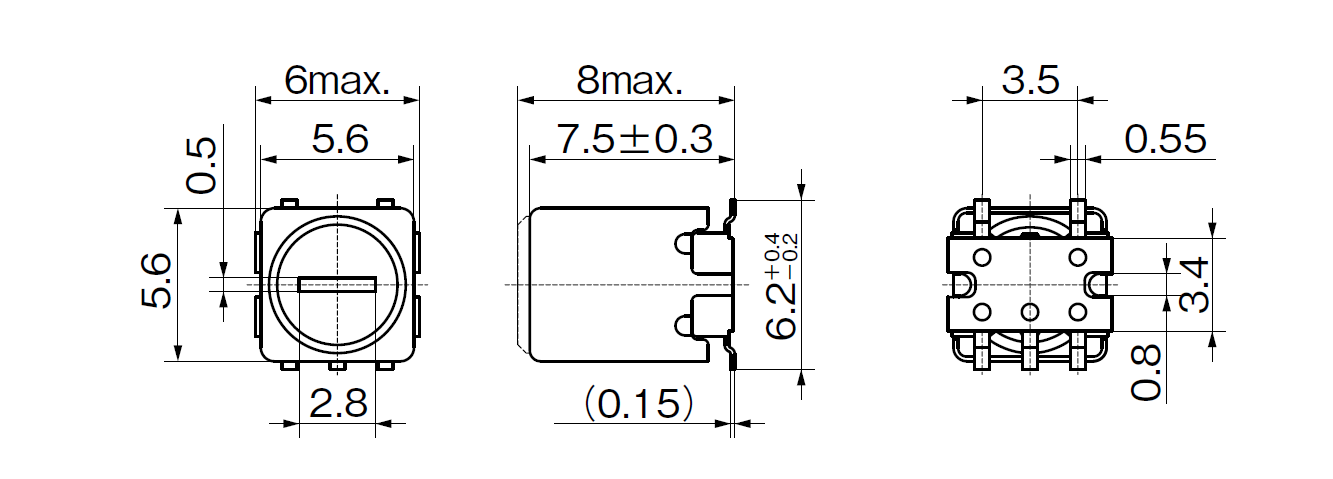

Dimensions
Unit
mm
Specifications
Inductance lower limit [mH] |
Inductance upper limit [mH] |
Operational frequency lower limit [MHz] |
Operational frequency upper limit [MHz] |
Unloaded Q lower limit |
Unloaded Q upper limit |
Variable range of F lower limit [%] |
Variable range of F upper limit [%] |
Variable range of L lower limit [%] |
Variable range of L upper limit [%] |
Internal capacitance |
---|---|---|---|---|---|---|---|---|---|---|
0.1 | 8.5 | 0.01 | 0.50 | 50 | 80 | -2 | 2 | -5 | 5 | - |
Inductance lower limit [mH] |
Inductance upper limit [mH] |
Operational frequency lower limit [MHz] |
Operational frequency upper limit [MHz] |
Unloaded Q lower limit |
Unloaded Q upper limit |
Variable range of F lower limit [%] |
|||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.1 | 8.5 | 0.01 | 0.50 | 50 | 80 | -2 |
Variable range of F upper limit [%] |
Variable range of L lower limit [%] |
Variable range of L upper limit [%] |
Internal capacitance | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2 | -5 | 5 | - |
Package Dimension
Q'ty [pcs./reel] |
Tape Dimensions A [mm] |
Tape Dimensions B [mm] |
Tape Dimensions C a [mm] |
Tape Dimensions C b [mm] |
Tape Dimensions D a [mm] |
Tape Dimensions D b [mm] |
Tape Dimensions E a [mm] |
Tape Dimensions E b [mm] |
Tape Dimensions F a [mm] |
Tape Dimensions F b [mm] |
Tape Dimensions G [mm] |
Tape Dimensions H a [mm] |
Tape Dimensions H b [mm] |
Reel Dimensions I a [mm] |
Reel Dimensions I b [mm] |
Reel Dimensions J a [mm] |
Reel Dimensions J b [mm] |
Reel Dimensions K a [mm] |
Reel Dimensions K b [mm] |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
500 | 9.5 | 10.0 | 13.5 | 0.2 | 16 | 0.3 | 12 | 0.1 | 7.5 | 0.1 | 7.8 | 0.4 | 0.1 | φ 330 | φ 2 | 21.5 | 1 | 17.5 | 1 |
