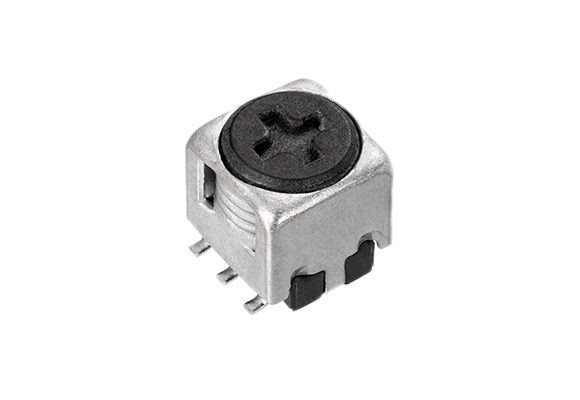

SMD Type K Series

Variable coil for high frequency amplification circuit transformer for AM / FM tuner and intermediate frequency transformer.

Parts List

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts	Appearance	Size(W) [mm]	Size(D) [mm]	Length(H) Max [mm]	Inductance lower limit [micro H]	Inductance upper limit [micro H]	Operating Frequency lower limit [MHz]	Operating Frequency upper limit [MHz]	Unloaded Q upper limit
K5-N		5.6	5.6	6.0	1000.00	4000.00	0.1	50	100
