CK Series

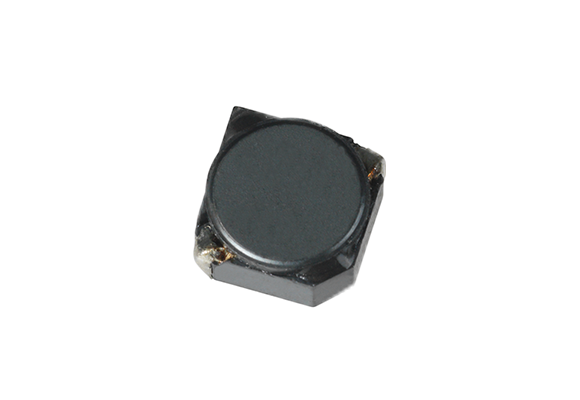

Product image of CK Series | Power inductors

High efficiency and Low DCR power inductor for battery-driven portable electric equipment power supplies (DC-DC converter, switching power supply) and other electronic equipment.

Parts List

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts

Appearance

Size(W)
[mm]

Size(D)
[mm]

Length(H) Max
[mm]

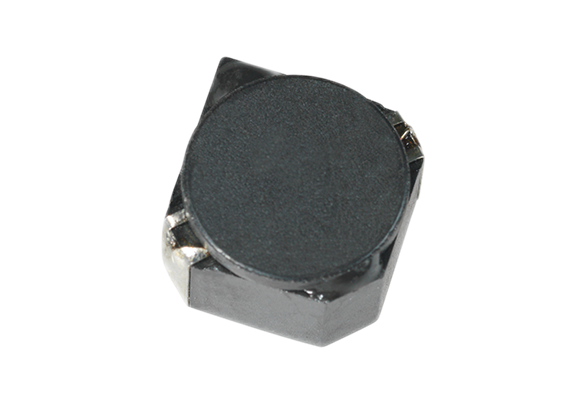

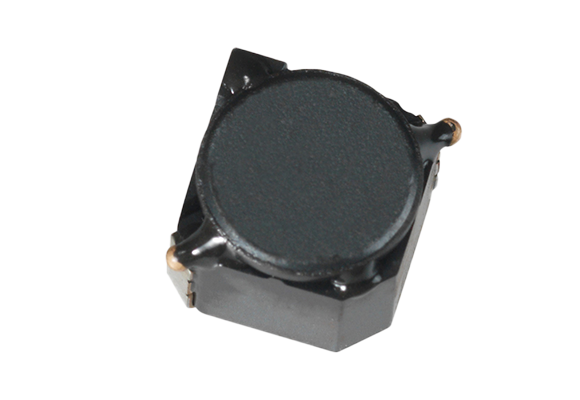

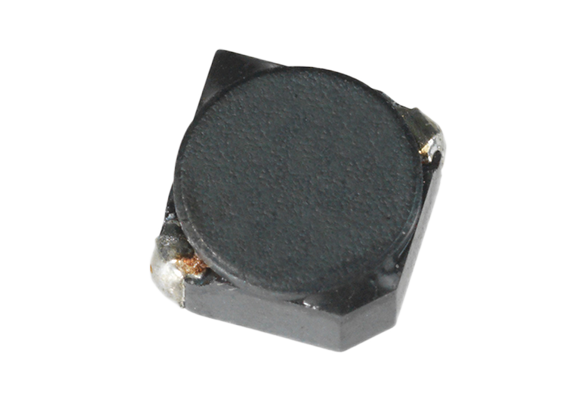

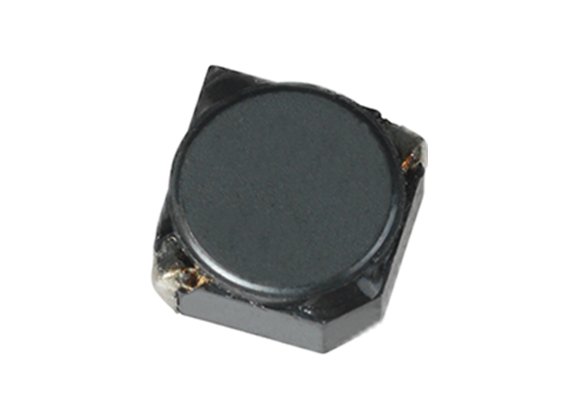

C4-K1.8R Product image of C4-K1.8R | CK Series 4.8 4.8 1.9
C4-K1.8RA Product image of C4-K1.8RA | CK Series 4.8 4.8 1.9
C5-K3LGA Product image of C5-K3LGA | CK Series 5.6 5.6 3.0
C6-K3LG Product image of C6-K3LG | CK Series 6.6 6.6 3.2
C6-K5LGA Product image of C6-K5LGA | CK Series 6.6 6.6 5.0
C12-K7.5L Product image of C12-K7.5L | CK Series 11.5 11.5 7.5
