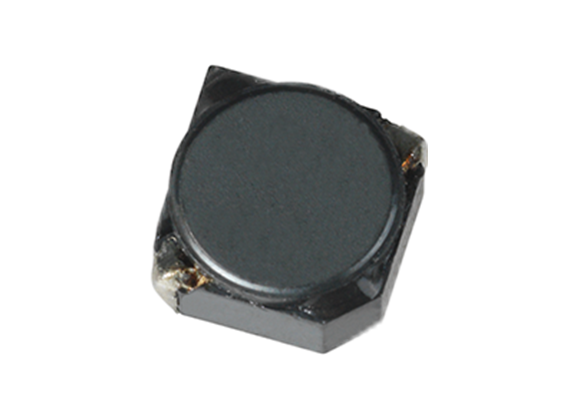

C6-K3LG

RoHS AEC-Q200 Shielded structure

High efficiency and Low DCR power inductor for battery-driven portable electric equipment power supplies (DC-DC converter, switching power supply) and other electronic equipment.

Features

1. Low DCR
2. Low profile and high current
3. Magnetically shielded structure for electromagnetic interference

For DSCs, DVD/MP3 Players, Mobile Phones, Notebook Computers, LCD TVs, PDP TVs, Car
Navigations, and other electronic equipment.

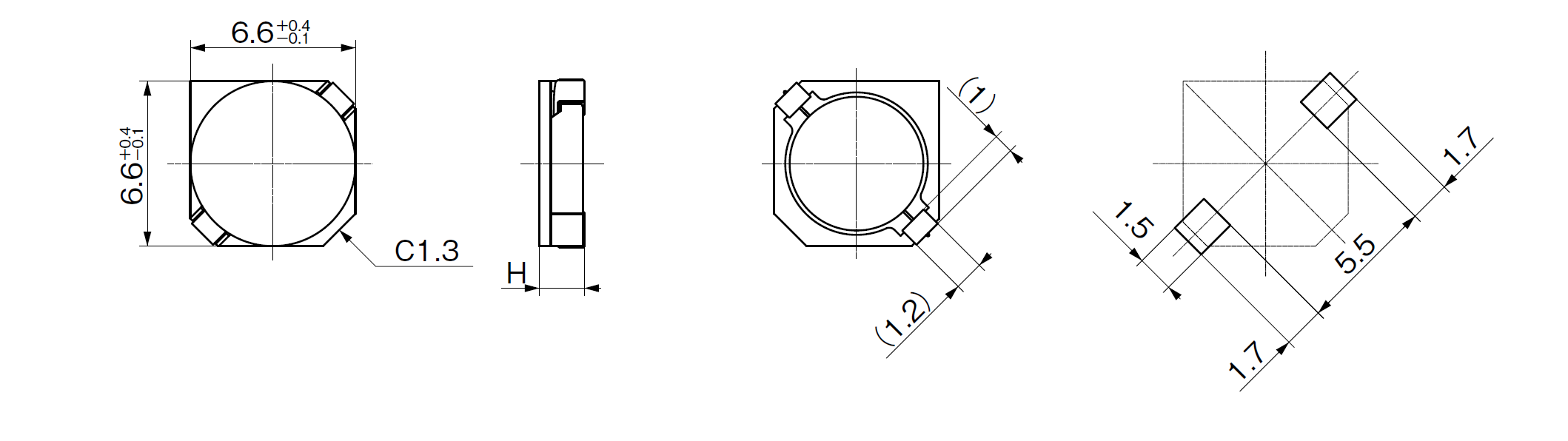

mm

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Size(W) [mm]	Size(D) [mm]	Length(H) Max [mm]	Stamp	Inductance [micro H]	Inductance Tolerance lower limit [%]	Inductance Tolerance upper limit [%]	Inductance Test Freq. [KHz]	DC Resistance [m OHM]	Rated DC CurrentL=-30 percent [A]	Rated DC Current deltaT=40K [A]
6.6	6.6	3.2	1R0	1.00	-30	30	1	8.00	6.30	6.30
6.6	6.6	3.2	1R8	1.80	-30	30	1	10.00	5.30	5.20
6.6	6.6	3.2	2R5	2.50	-30	30	1	13.00	4.80	4.80
6.6	6.6	3.2	3R3	3.30	-30	30	1	16.00	4.00	4.50
6.6	6.6	3.2	4R5	4.50	-30	30	1	20.00	3.50	3.75
6.6	6.6	3.2	5R6	5.60	-30	30	1	24.00	3.10	3.60
6.6	6.6	3.2	6R8	6.80	-30	30	1	27.00	2.80	3.30
6.6	6.6	3.2	8R5	8.50	-30	30	1	37.00	2.50	3.00
6.6	6.6	3.2	100	10.00	-30	30	1	41.00	2.30	2.70
6.6	6.6	3.2	120	12.00	-30	30	1	45.00	2.10	2.60
6.6	6.6	3.2	160	16.00	-30	30	1	70.00	1.90	2.35
6.6	6.6	3.2	180	18.00	-20	20	1	75.00	1.75	2.25
6.6	6.6	3.2	220	22.00	-20	20	1	89.00	1.60	2.10
6.6	6.6	3.2	270	27.00	-20	20	1	92.00	1.50	2.00
6.6	6.6	3.2	330	33.00	-20	20	1	123.00	1.25	1.60
6.6	6.6	3.2	390	39.00	-20	20	1	157.00	1.20	1.40
6.6	6.6	3.2	470	47.00	-20	20	1	173.00	1.10	1.30
6.6	6.6	3.2	560	56.00	-20	20	1	213.00	1.00	1.25
6.6	6.6	3.2	680	68.00	-20	20	1	235.00	0.90	1.15
6.6	6.6	3.2	820	82.00	-20	20	1	350.00	0.80	0.95
6.6	6.6	3.2	101	100.00	-20	20	1	387.00	0.70	0.90
6.6	6.6	3.2	471	470.00	-20	20	1	2200.00	0.32	0.33
6.6	6.6	3.2	821	820.00	-20	20	1	2900.00	0.24	0.30
6.6	6.6	3.2	102	1000.00	-20	20	1	3800.00	0.21	0.24
