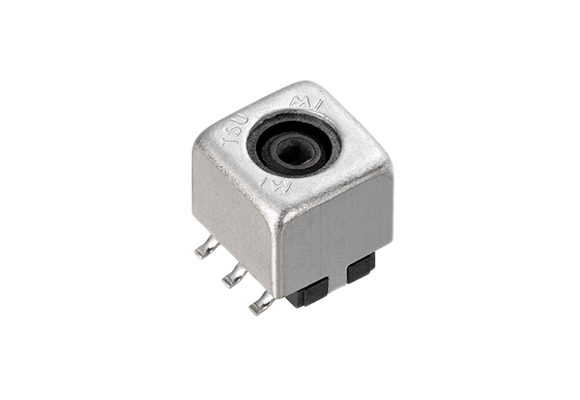

SMD Type M Series

This transformer is used in the driving circuit of the in-vehicle ultrasonic sensor (corner sensor, back sensor).

Parts List

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts	Appearance	Size(W) [mm]	Size(D) [mm]	Length(H) Max [mm]	Inductance lower limit [micro H]	Inductance upper limit [micro H]	Operating Frequency lower limit [MHz]	Operating Frequency upper limit [MHz]	Unloaded Q upper limit
M5-N		5.6	5.6	6.0	0.03	130.00	3.0	30	80
