Outline

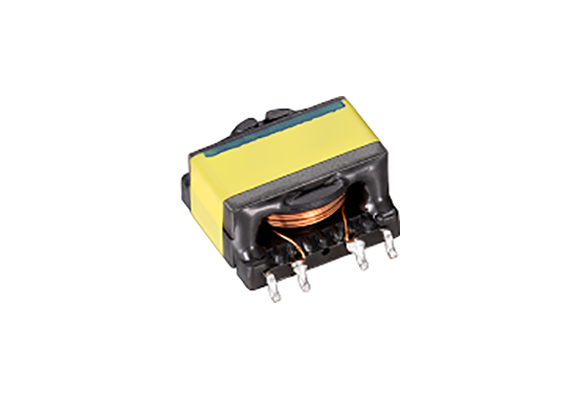

This transformer is used for DC/DC converters, switching power supplies, and IGBT isolation transformers.
Features
1,It is highly efficient and can cope with high power.
2,A closed magnetic circuit structure is adopted to reduce electromagnetic interference.
Dimensions
Dimensions
Unit
mm
Specifications
| Operating Frequency upper limit [KHz] |
Power capacity [W] |
|---|---|
| 500 | 3.0 |
| Operating Frequency upper limit [KHz] |
Power capacity [W] |
||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 500 | 3.0 |
Package Dimension
| Q'ty [pcs./reel] |
Tape Dimensions A [mm] |
Tape Dimensions B [mm] |
Tape Dimensions C a [mm] |
Tape Dimensions C b [mm] |
Tape Dimensions D a [mm] |
Tape Dimensions D b [mm] |
Tape Dimensions E a [mm] |
Tape Dimensions E b [mm] |
Tape Dimensions F a [mm] |
Tape Dimensions F b [mm] |
Tape Dimensions G [mm] |
Tape Dimensions H a [mm] |
Tape Dimensions H b [mm] |
Reel Dimensions I a [mm] |
Reel Dimensions I b [mm] |
Reel Dimensions J a [mm] |
Reel Dimensions J b [mm] |
Reel Dimensions K a [mm] |
Reel Dimensions K b [mm] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 500 | 11.5 | 13.6 | 21.0 | 0.2 | 24 | 0.3 | 16 | 0.1 | 11.5 | 0.1 | 5.9 | 0.4 | 0.10 | φ 330 | φ 2 | 29.5 | 1 | 25.5 | 1 |
