Outline
![](/en/product/category/coil/Transformers/parts/__icsFiles/afieldfile/2022/05/27/file_02_2.png)

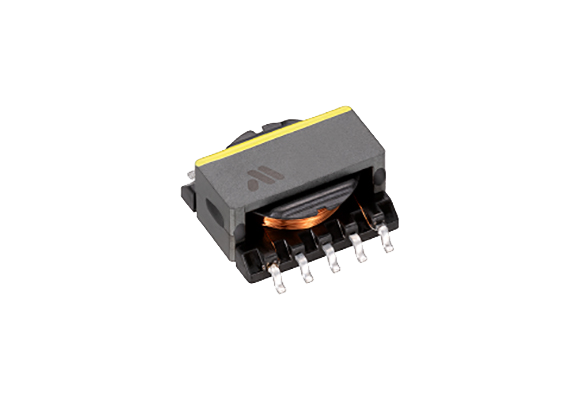

This transformer is used for DC/DC converters, switching power supplies, and IGBT isolation transformers.
Features
1,It is highly efficient and can cope with high power.
3,A closed magnetic circuit structure is adopted to reduce electromagnetic interference.
Dimensions
![](/en/product/category/coil/Transformers/parts/__icsFiles/afieldfile/2022/05/27/file_69_31.png)
Dimensions
Unit
mm
Specifications
Operating Frequency upper limit [KHz] |
Power capacity [W] |
---|---|
500 | 5.0 |
Operating Frequency upper limit [KHz] |
Power capacity [W] |
||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
500 | 5.0 |
Package Dimension
![](/en/product/category/coil/Transformers/parts/data/__icsFiles/afieldfile/2022/05/27/file_15_32.png)
![](/en/product/category/coil/Transformers/parts/data/__icsFiles/afieldfile/2022/05/27/file_16_32.png)
Q'ty [pcs./reel] |
Tape Dimensions A [mm] |
Tape Dimensions B [mm] |
Tape Dimensions C a [mm] |
Tape Dimensions C b [mm] |
Tape Dimensions D a [mm] |
Tape Dimensions D b [mm] |
Tape Dimensions E a [mm] |
Tape Dimensions E b [mm] |
Tape Dimensions F a [mm] |
Tape Dimensions F b [mm] |
Tape Dimensions G [mm] |
Tape Dimensions H a [mm] |
Tape Dimensions H b [mm] |
Reel Dimensions I a [mm] |
Reel Dimensions I b [mm] |
Reel Dimensions J a [mm] |
Reel Dimensions J b [mm] |
Reel Dimensions K a [mm] |
Reel Dimensions K b [mm] |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
300 | 18.0 | 17.6 | 25.5 | 0.2 | 32 | 0.3 | 24 | 0.1 | 14.2 | 0.1 | 7.0 | 0.5 | 0.05 | φ 330 | φ 2 | 37.4 | 1 | 33.4 | 1 |
