K5-R Series

This transformer is used in the driving circuit of the in-vehicle ultrasonic sensor (corner sensor, back sensor).

Parts List

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts	Inductance lower limit [mH]	Inductance upper limit [mH]	Operational frequency lower limit [MHz]	Operational frequency upper limit [MHz]	Unloaded Q lower limit	Unloaded Q upper limit

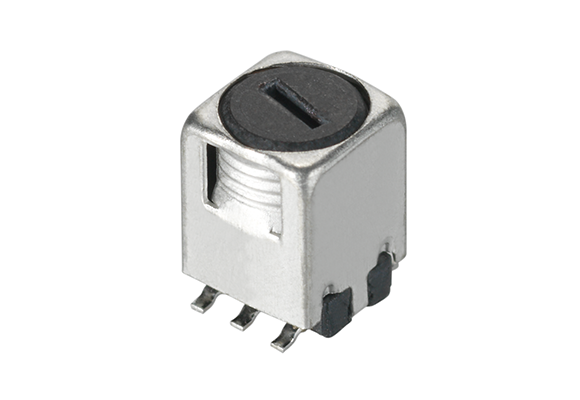

K5-R2	1.0	6.7	0.01	0.50	50	80

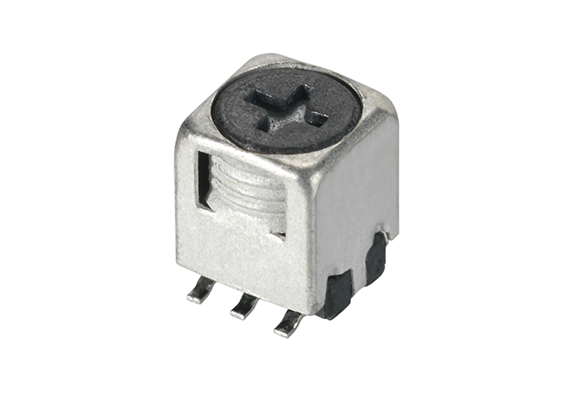

K5-RS	0.1	8.5	0.01	0.50	50	80

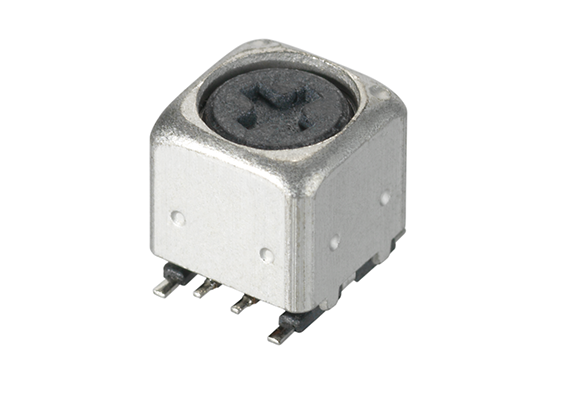

K5-R3	1.0	4.0	0.04	0.10	40	60
