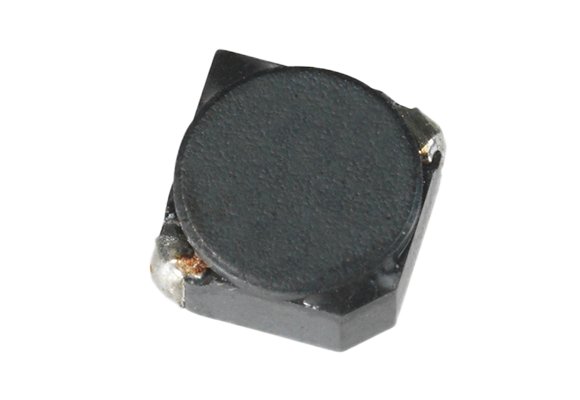

High efficiency and Low DCR power inductor for battery-driven portable electric equipment power supplies (DC-DC converter, switching power supply) and other electronic equipment.
Features
1. Low DCR 2. Low profile and high current 3. Magnetically shielded structure for electromagnetic interference
Applications
For DSCs, DVD/MP3 Players, Mobile Phones, Notebook Computers, LCD TVs, PDP TVs, Car Navigations, and other electronic equipment.

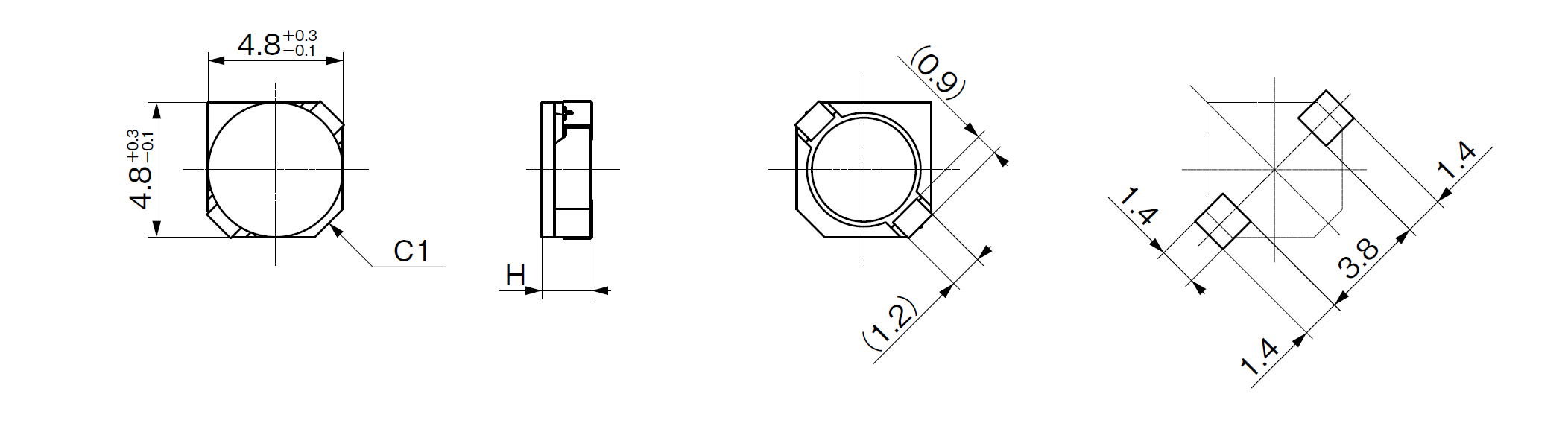

Dimensions
mm
Specifications
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Size(W) [mm]
asc
Size(D) [mm]
asc
Length(H) Max [mm]
asc
Stamp
asc
Inductance [micro H]
asc
Inductance Tolerance
lower limit [%]
asc
Inductance Tolerance
upper limit [%]
asc
Inductance Test Freq. [KHz]
asc
DC Resistance [m OHM]
asc
Rated DC
CurrentL=-10percent [A]
asc
Rated DC Current
deltaT=25K [A]
asc
4.8
4.8
1.9
1R0
1.00
-30
30
1
18.00
2.40
3.20
4.8
4.8
1.9
1R5
1.50
-30
30
1
23.00
2.20
2.70
4.8
4.8
1.9
2R2
2.20
-30
30
1
29.00
2.00
2.40
4.8
4.8
1.9
2R7
2.70
-30
30
1
34.00
1.80
2.30
4.8
4.8
1.9
3R3
3.30
-30
30
1
39.00
1.70
2.20
4.8
4.8
1.9
3R9
3.90
-30
30
1
53.00
1.50
2.10
4.8
4.8
1.9
4R7
4.70
-30
30
1
57.00
1.40
1.90
4.8
4.8
1.9
5R6
5.60
-30
30
1
65.00
1.30
1.80
4.8
4.8
1.9
6R8
6.80
-30
30
1
82.00
1.10
1.60
4.8
4.8
1.9
8R2
8.20
-30
30
1
95.00
1.05
1.55
4.8
4.8
1.9
100
10.00
-20
20
1
110.00
0.90
1.25
4.8
4.8
1.9
120
12.00
-20
20
1
117.00
0.85
1.20
4.8
4.8
1.9
150
15.00
-20
20
1
165.00
0.75
1.10
4.8
4.8
1.9
180
18.00
-20
20
1
185.00
0.70
1.05
4.8
4.8
1.9
220
22.00
-20
20
1
212.00
0.60
1.00
4.8
4.8
1.9
270
27.00
-20
20
1
288.00
0.55
0.80
4.8
4.8
1.9
330
33.00
-20
20
1
345.00
0.50
0.70
4.8
4.8
1.9
390
39.00
-20
20
1
487.00
0.45
0.60
4.8
4.8
1.9
470
47.00
-20
20
1
545.00
0.40
0.55
4.8
4.8
1.9
560
56.00
-20
20
1
595.00
0.35
0.53
4.8
4.8
1.9
680
68.00
-20
20
1
693.00
0.32
0.50
4.8
4.8
1.9
820
82.00
-20
20
1
850.00
0.30
0.45
4.8
4.8
1.9
101
100.00
-20
20
1
1030.00
0.27
0.38
4.8
4.8
1.9
121
120.00
-20
20
1
1260.00
0.24
0.32
4.8
4.8
1.9
151
150.00
-20
20
1
1420.00
0.22
0.30
Package Dimension
scroll
Q'ty [pcs./reel]
Tape Dimensions A [mm]
Tape Dimensions B [mm]
Tape Dimensions C
a [mm]
Tape Dimensions C
b [mm]
Tape Dimensions D
a [mm]
Tape Dimensions D
b [mm]
Tape Dimensions E
a [mm]
Tape Dimensions E
b [mm]
Tape Dimensions F
a [mm]
Tape Dimensions F
b [mm]
Tape Dimensions G
a [mm]
Tape Dimensions G
b [mm]
Tape Dimensions H
a [mm]
Tape Dimensions H
b [mm]
Reel Dimensions I
a [mm]
Reel Dimensions I
b [mm]
Reel Dimensions J
b [mm]
Reel Dimensions K
a [mm]
Reel Dimensions K
b [mm]
2000
5.3
5.3
9.5
0.2
12
0.3
8
0.1
5.5
0.1
2.2
0.2
0.3
0.10
φ 330
φ 2
1
13.5
1
