  3. CK Series

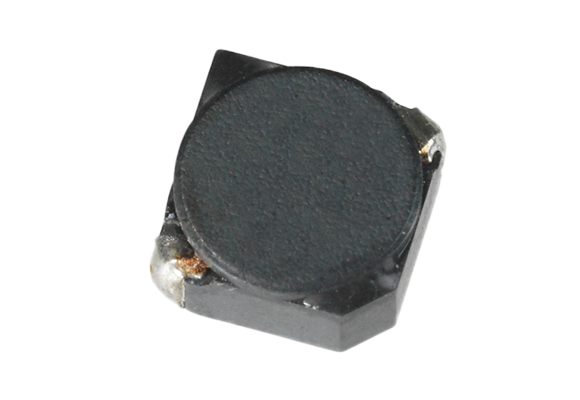

C5-K3LGA

RoHS AEC-Q200 Shielded structure

High efficiency and Low DCR power inductor for battery-driven portable electric equipment power supplies (DC-DC converter, switching power supply) and other electronic equipment.

Features

1. Low DCR
2. Low profile and high current
3. Magnetically shielded structure for electromagnetic interference

  • For DSCs, DVD/MP3 Players, Mobile Phones, Notebook Computers, LCD TVs, PDP TVs, Car
    Navigations, and other electronic equipment.

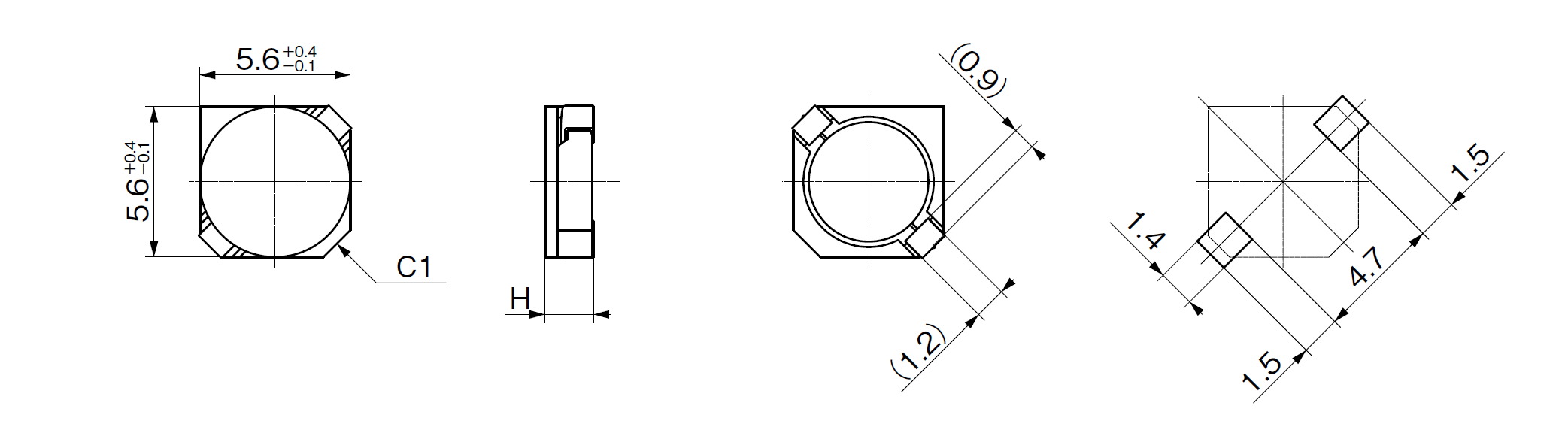

  • mm
  • Click the arrow icon in the table below to switch from ascending to descending order.

    scroll

    Size(W)
    [mm]

    Size(D)
    [mm]

    Length(H) Max
    [mm]

    Stamp

    Inductance
    [micro H]

    Inductance Tolerance
    lower limit
    [%]

    Inductance Tolerance
    upper limit
    [%]

    Inductance Test Freq.
    [KHz]

    DC Resistance
    [m OHM]

    Rated DC
    CurrentL=-30 percent
    [A]

    Rated DC
    Current deltaT=40K
    [A]

    5.6 5.6 3.0 1R2 1.20 -30 30 1 17.00 5.00 4.00
    5.6 5.6 3.0 1R8 1.80 -30 30 1 21.00 4.50 3.70
    5.6 5.6 3.0 2R2 2.20 -30 30 1 25.00 4.00 3.50
    5.6 5.6 3.0 3R3 3.30 -30 30 1 29.00 3.60 3.20
    5.6 5.6 3.0 4R7 4.70 -30 30 1 33.00 3.20 2.80
    5.6 5.6 3.0 5R6 5.60 -30 30 1 46.00 2.90 2.50
    5.6 5.6 3.0 6R8 6.80 -30 30 1 52.00 2.50 2.40
    5.6 5.6 3.0 100 10.00 -30 30 1 62.00 2.10 2.00
    5.6 5.6 3.0 120 12.00 -30 30 1 77.00 2.00 1.90
    5.6 5.6 3.0 150 15.00 -30 30 1 84.00 1.80 1.80
    5.6 5.6 3.0 220 22.00 -20 20 1 183.00 1.40 1.30
    5.6 5.6 3.0 330 33.00 -20 20 1 224.00 1.20 1.10
    5.6 5.6 3.0 470 47.00 -20 20 1 270.00 1.00 1.00
    5.6 5.6 3.0 680 68.00 -20 20 1 470.00 0.80 0.70
    5.6 5.6 3.0 101 100.00 -20 20 1 590.00 0.65 0.55
  • scroll

    Q'ty
    [pcs./reel]

    Tape Dimensions A
    [mm]

    Tape Dimensions B
    [mm]

    Tape Dimensions C
    a
    [mm]

    Tape Dimensions C
    b
    [mm]

    Tape Dimensions D
    a
    [mm]

    Tape Dimensions D
    b
    [mm]

    Tape Dimensions E
    a
    [mm]

    Tape Dimensions E
    b
    [mm]

    Tape Dimensions F
    a
    [mm]

    Tape Dimensions F
    b
    [mm]

    Tape Dimensions G
    a
    [mm]

    Tape Dimensions G
    b
    [mm]

    Tape Dimensions H
    a
    [mm]

    Tape Dimensions H
    b
    [mm]

    Reel Dimensions I
    a
    [mm]

    Reel Dimensions I
    b
    [mm]

    Reel Dimensions J
    b
    [mm]

    Reel Dimensions K
    a
    [mm]

    Reel Dimensions K
    b
    [mm]

    2000 6.1 6.1 9.5 0.2 12 0.3 8 0.1 5.5 0.1 3.2 0.2 0.4 0.10 φ 330 φ 2 1 13.5 1
