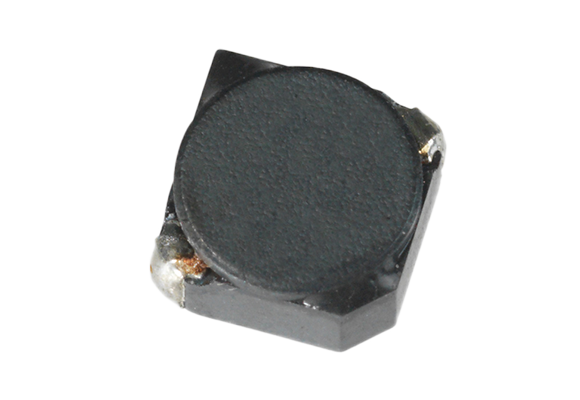

High efficiency and Low DCR power inductor for battery-driven portable electric equipment power supplies (DC-DC converter, switching power supply) and other electronic equipment.
Features
1. Low DCR
2. Low profile and high current
3. Magnetically shielded structure for electromagnetic interference
-
-
For DSCs, DVD/MP3 Players, Mobile Phones, Notebook Computers, LCD TVs, PDP TVs, Car
Navigations, and other electronic equipment. -

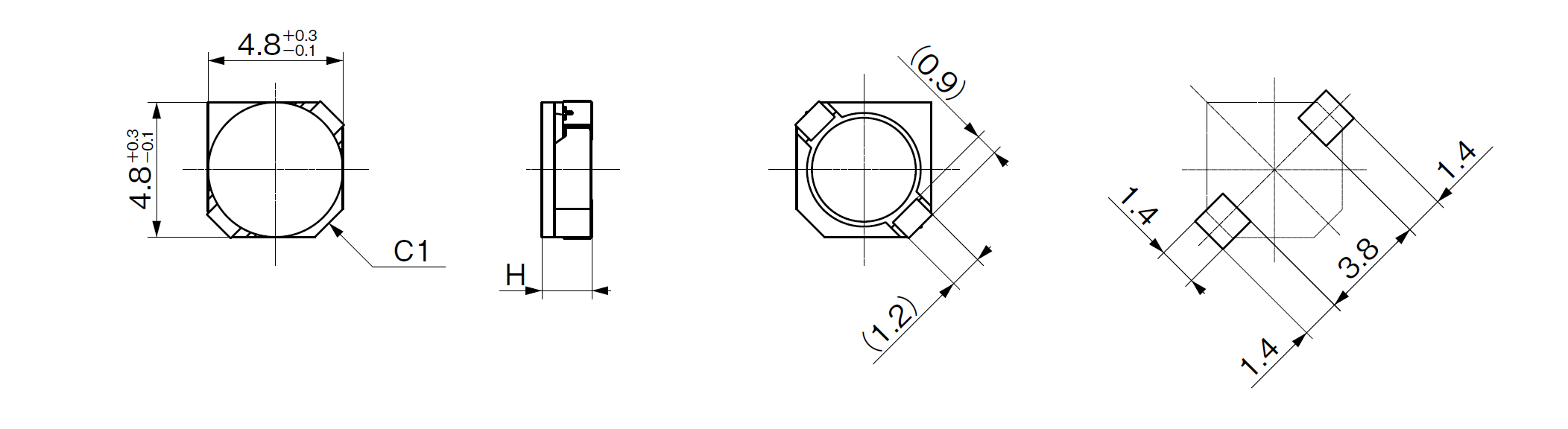

mm
-
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Size(W)
[mm]Size(D)
[mm]Length(H) Max
[mm]Stamp
Inductance
[micro H]Inductance Tolerance
lower limit
[%]Inductance Tolerance
upper limit
[%]Inductance Test Freq.
[KHz]DC Resistance
[m OHM]Rated DC
CurrentL=-10percent
[A]Rated DC Current
deltaT=25K
[A]4.8 4.8 1.9 1R0 1.00 -30 30 1 22.00 3.50 2.30 4.8 4.8 1.9 1R5 1.50 -30 30 1 26.00 3.10 2.10 4.8 4.8 1.9 1R8 1.80 -30 30 1 32.00 2.80 2.00 4.8 4.8 1.9 2R7 2.70 -30 30 1 39.00 2.20 1.80 4.8 4.8 1.9 3R3 3.30 -30 30 1 52.00 2.10 1.50 4.8 4.8 1.9 3R9 3.90 -30 30 1 70.00 2.00 1.30 4.8 4.8 1.9 4R7 4.70 -30 30 1 80.00 1.90 1.20 4.8 4.8 1.9 5R6 5.60 -30 30 1 86.00 1.70 1.15 4.8 4.8 1.9 6R8 6.80 -30 30 1 97.00 1.50 1.05 4.8 4.8 1.9 8R2 8.20 -30 30 1 137.00 1.40 0.90 4.8 4.8 1.9 100 10.00 -20 20 1 147.00 1.30 0.82 4.8 4.8 1.9 120 12.00 -20 20 1 181.00 1.10 0.71 4.8 4.8 1.9 150 15.00 -20 20 1 244.00 0.96 0.59 4.8 4.8 1.9 180 18.00 -20 20 1 271.00 0.93 0.55 4.8 4.8 1.9 220 22.00 -20 20 1 305.00 0.80 0.50 4.8 4.8 1.9 270 27.00 -20 20 1 375.00 0.73 0.44 4.8 4.8 1.9 330 33.00 -20 20 1 510.00 0.65 0.42 4.8 4.8 1.9 390 39.00 -20 20 1 550.00 0.61 0.38 4.8 4.8 1.9 470 47.00 -20 20 1 635.00 0.57 0.35 4.8 4.8 1.9 560 56.00 -20 20 1 740.00 0.51 0.32 4.8 4.8 1.9 680 68.00 -20 20 1 1100.00 0.46 0.28 4.8 4.8 1.9 820 82.00 -20 20 1 1230.00 0.43 0.26 4.8 4.8 1.9 101 100.00 -20 20 1 1345.00 0.41 0.24 4.8 4.8 1.9 121 120.00 -20 20 1 1550.00 0.37 0.22 4.8 4.8 1.9 151 150.00 -20 20 1 2100.00 0.31 0.19 -
scroll
Q'ty
[pcs./reel]Tape Dimensions A
[mm]Tape Dimensions B
[mm]Tape Dimensions C
a
[mm]Tape Dimensions C
b
[mm]Tape Dimensions D
a
[mm]Tape Dimensions D
b
[mm]Tape Dimensions E
a
[mm]Tape Dimensions E
b
[mm]Tape Dimensions F
a
[mm]Tape Dimensions F
b
[mm]Tape Dimensions G
a
[mm]Tape Dimensions G
b
[mm]Tape Dimensions H
a
[mm]Tape Dimensions H
b
[mm]Reel Dimensions I
a
[mm]Reel Dimensions I
b
[mm]Reel Dimensions J
b
[mm]Reel Dimensions K
a
[mm]Reel Dimensions K
b
[mm]2000 5.3 5.3 9.5 0.2 12 0.3 8 0.1 5.5 0.1 2.2 0.2 0.3 0.10 φ 330 φ 2 1 13.5 1
