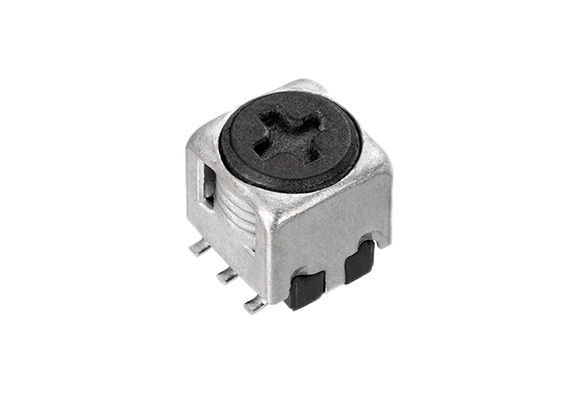

Adjustable Coil SMD Type K Series

K5-N

RoHS
AEC-Q200

Contact

Outline
Features
Dimensions
Specifications
Package Dimension

Outline

Variable coil for high frequency amplification circuit transformer for AM / FM tuner and intermediate frequency transformer.

Features

1,Variable structure allows the desired inductance value to be adjusted.
2,The tuner unit can be miniaturized with a small size and a low height.
3,The multi-terminal structure enables the desired winding conections.
4,The shield case structure is resistant to external noise.

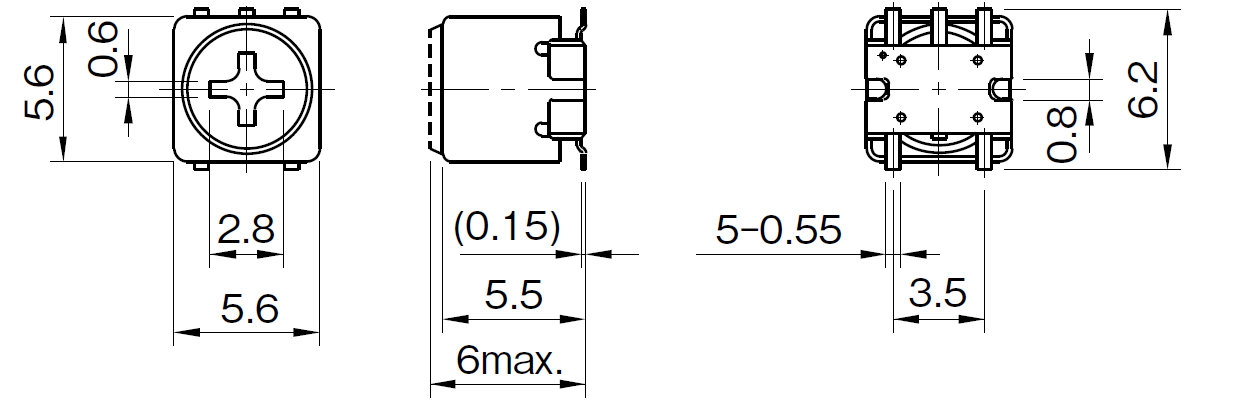

Dimensions

Dimensions
Unit

Specifications

Inductance lower limit [micro H]	Inductance upper limit [micro H]	Operating Frequency lower limit [MHz]	Operating Frequency upper limit [MHz]	Unloaded Q lower limit	Unloaded Q upper limit	Variable range of F lower limit [%]	Variable range of F　 upper limit [%]	Variable range of L lower limit [%]	Variable range of L upper limit [%]	Internal capacitance
1000.00	4000.00	0.1	20	50	100	-2	2	-5	5	-

Inductance lower limit [micro H]	Inductance upper limit [micro H]	Operating Frequency lower limit [MHz]	Operating Frequency upper limit [MHz]	Unloaded Q lower limit	Unloaded Q upper limit	Variable range of F lower limit [%]
1000.00	4000.00	0.1	20	50	100	-2

Variable range of F　 upper limit [%]	Variable range of L lower limit [%]	Variable range of L upper limit [%]	Internal capacitance
2	-5	5	-

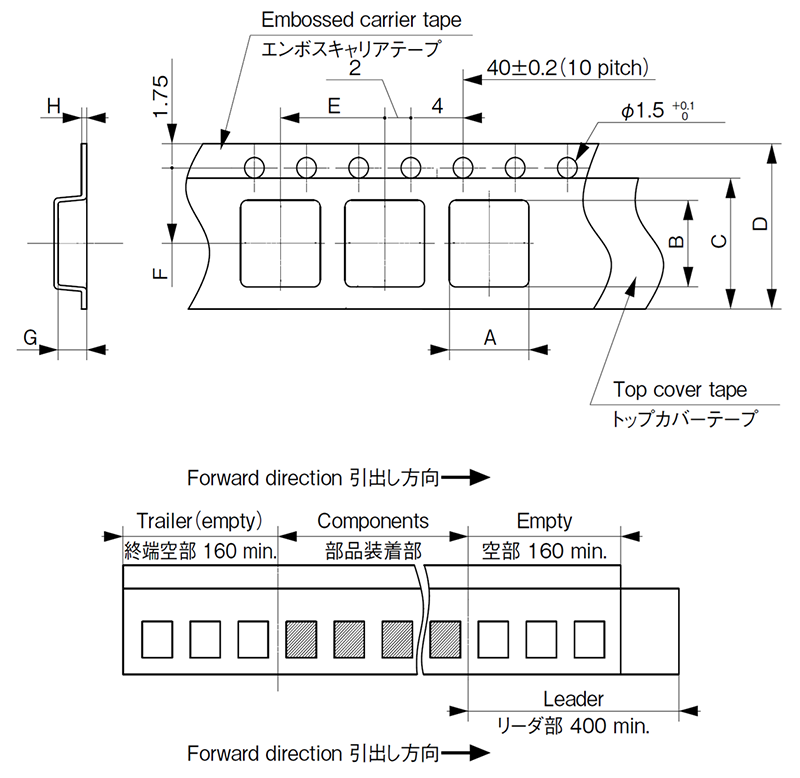

Package Dimension

Q'ty [pcs./reel]	Tape Dimensions A [mm]	Tape Dimensions B [mm]	Tape Dimensions C a [mm]	Tape Dimensions C b [mm]	Tape Dimensions D a [mm]	Tape Dimensions D b [mm]	Tape Dimensions E a [mm]	Tape Dimensions E b [mm]	Tape Dimensions F a [mm]	Tape Dimensions F b [mm]	Tape Dimensions G a [mm]	Tape Dimensions G b [mm]	Tape Dimensions H a [mm]	Tape Dimensions H b [mm]	Reel Dimensions I a [mm]	Reel Dimensions I b [mm]	Reel Dimensions J a [mm]	Reel Dimensions J b [mm]	Reel Dimensions K a [mm]	Reel Dimensions K b [mm]
1000	6	6.6	13.5	0.2	16	0.3	8	0.1	7.5	0.1	6.5	0.2	0.5	0.1	φ 330	φ 2	21.5	21.5	17.5	1
