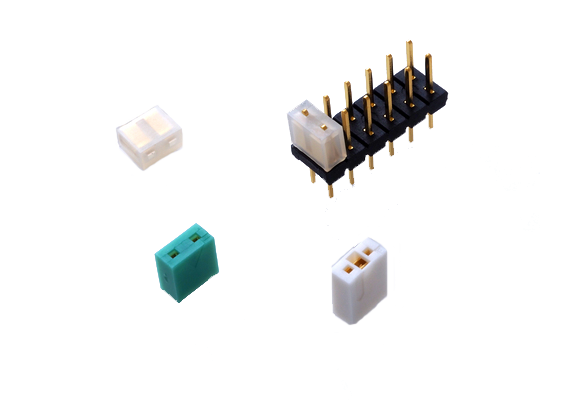

2.54mm Pitch Internal Connection Pin Header DIC/Z Series
DIC/Z Series
Our pin headers can be customized to suit customers’ needs.
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Drawing |
|---|---|---|---|---|---|---|---|---|---|
| DIC-448 | 2 | 2.54 | 1 | 1,000V A.C.(r.m.s.) for a minute | -40 | 80 | DL0244_HTKDICZ_JP.pdf | ||
| Z-128 |  |
2 | 2.54 | 1 | 1,000V A.C.(r.m.s.) for a minute | -40 | 80 | DL0245_HTKDICZ_JP.pdf | |
| Z-130 |  |
2 | 2.54 | 1 | 1,000V A.C.(r.m.s.) for a minute | -40 | 80 | DL0246_HTKDICZ_JP.pdf | |
| Z-130B |  |
2 | 2.54 | 1 | 1,000V A.C.(r.m.s.) for a minute | -40 | 80 | DL0246_HTKDICZ_JP.pdf | |
| Z-208 |  |
2 | 2.54 | 1 | 1,000V A.C.(r.m.s.) for a minute | -40 | 80 | DL0247_HTKDICZ_JP.pdf | |
| Z-252 |  |
2 | 2.54 | 1 | 1,000V A.C.(r.m.s.) for a minute | -40 | 80 | DL0248_HTKDICZ_JP.pdf | |
| Z-252B |  |
2 | 2.54 | 1 | 1,000V A.C.(r.m.s.) for a minute | -40 | 80 | DL0248_HTKDICZ_JP.pdf | |
| Z-252C |  |
2 | 2.54 | 1 | 1,000V A.C.(r.m.s.) for a minute | -40 | 80 | DL0248_HTKDICZ_JP.pdf | |
| Z-149-()P |  |
1～24 *Please contact us regarding availability of your desired number of pins. |
2.54 | DIP | 1 | 1,000V A.C.(r.m.s.) for a minute | -40 | 80 | DL0249_HTKDICZ_JP.pdf |
| Z-152-()P |  |
2～20 *Please contact us regarding availability of your desired number of pins. |
2.54 | DIP | 1 | 1,000V A.C.(r.m.s.) for a minute | -40 | 80 | DL0250_HTKDICZ_JP.pdf |
| Z-282-()FD+ |  |
2～62 *Please contact us regarding availability of your desired number of pins. |
2.54 | DIP | 1 | 1,000V A.C.(r.m.s.) for a minute | -40 | 80 | DL0251_HTKDICZ_BI.pdf |
| Z-325-()FD2 |  |
2～50 *Please contact us regarding availability of your desired number of pins. |
2.54 | DIP | 1 | 1,000V A.C.(r.m.s.) for a minute | -40 | 80 | DL0252_HTKDICZ_BI.pdf |
