2.54mm Pitch Internal Connection Pin Header FFC Series
FFC Series
１．Pin removal is available
２．Pin length change is available
３．Plating/thickness change is available (gold/ tin copper)
*Please contact us for details.
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
2.54mm Pitch Internal Connection Pin Header FFC Series Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Drawing |
|---|---|---|---|---|---|---|---|---|---|

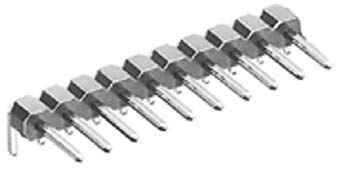

| FFC-()LAMEP1* |  |
1～52 *Please contact us regarding availability of your desired number of pins. |
2.54 | Right-angle DIP |
3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 85 | DL0195_HTKFFC_EN.pdf |

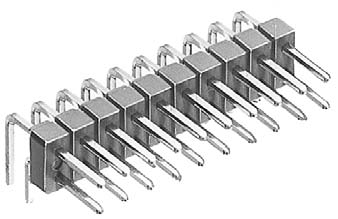

| FFC-()LBMEP1* |  |
2～144 *Please contact us regarding availability of your desired number of pins. |
2.54 | Right-angle DIP |
3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 85 | DL0196_HTKFFC_EN.pdf |
| FFC-()AMEP1* |  |
1～52 *Please contact us regarding availability of your desired number of pins. |
2.54 | Straight DIP | 3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 85 | DL0197_HTKFFC_EN.pdf |
| FFC-()BMEP1* |  |
4～144 *Please contact us regarding availability of your desired number of pins. |
2.54 | Straight DIP | 3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 85 | DL0198_HTKFFC_EN.pdf |
