2.00mm Pitch Board-In Connector PD07

PD07 Series
1.Low height and direct mounting PCB Connector
2.The Housing applied with polarity design
【Model Description】
()・・・ Number of pins
*/#・・・ Product specification
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Parts |
Appearance |
Pin Count |
Pich |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Drawing |
---|---|---|---|---|---|---|---|---|---|---|

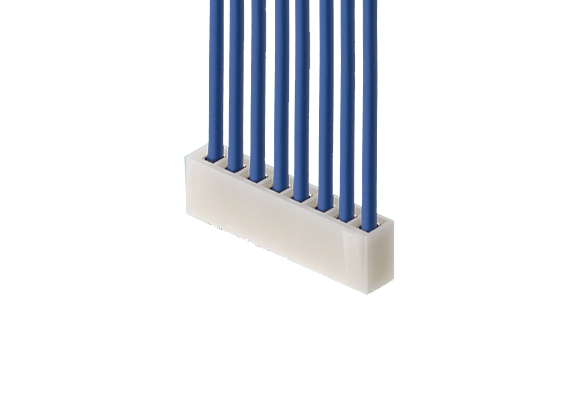

PD07A()M | ![]() |
2,3,4,5,6,7,8,9,10,11,12,13,14,15 | 2 | 2 | 800V A.C.(r.m.s) for a minute | -40 | 85 | DL0129_MCIPD07_BI_CL.pdf | ||

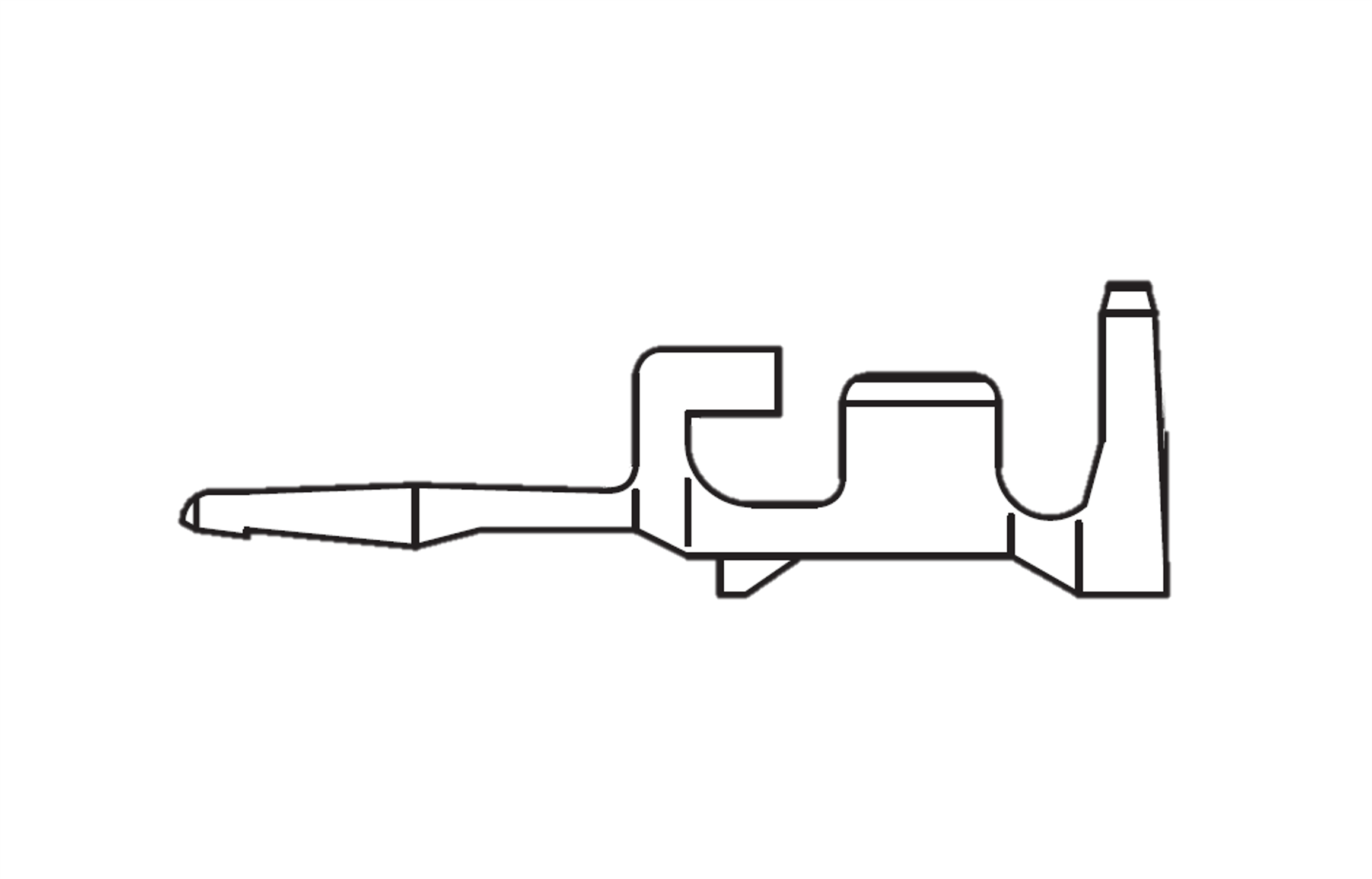

507203-2M | ![]() |
-40 | 85 | Φ1.50 | AWG#30~28 | DL0129_MCIPD07_BI_CL.pdf |
