I/O Connecters USB Connecter

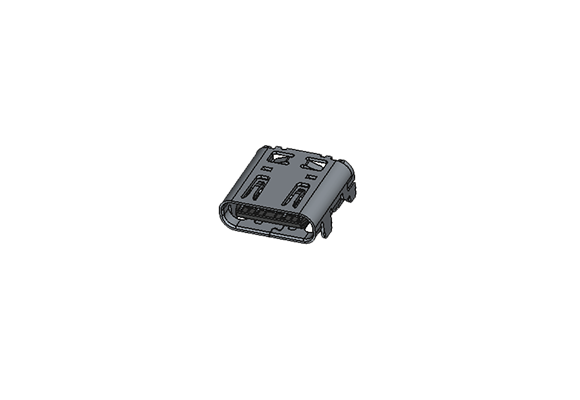

CAM-L05B

Outline

1.USB certified
2.High torsion resistance (more than twice the USB standard)
3.Extensive track record of adoption by Japanese manufacturers
*USB Type-C™ is a trademark of USB Implementers Forum.

【Model Description】
()・・・ Number of pins
*/#・・・ Product specification

Specifications

Parts No. CAM-L05B
Pin Count 24
Mounting Method/
Wiring method
USB 3.2 Gen 2 Type-C™ Onboard
Current Rating
[A/Pin]
5
Dielectric Withstanding
Voltage
100V A.C.(r.m.s.) for a minute
Operating Temparature
Min
[deg.C]
-40
Operating Temparature
Max
[deg.C]
85

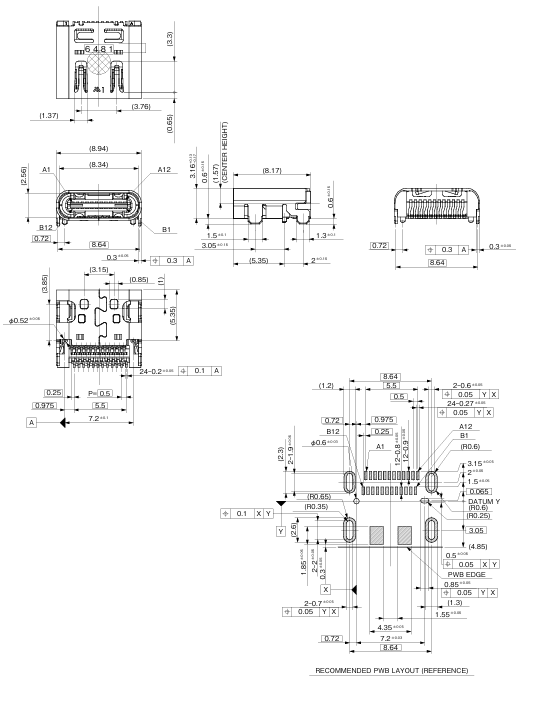

Overall View

NOTE

The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
