Outline
TAK Series
１．Capable LVDS, USB, CAN, Ethernet transmission
２．Clear locking sound by mold lock structure
３．7 coding available to avoid incorrect insertion
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
Specifications
| Parts No. | TAK-A6LMDG#B-*F+ |
|---|---|
| Pin Count | 6 |
| Pich [mm] |
2 |
| Mounting Method/ Wiring method |
Right-angle DIP |
| Current Rating [A/Pin] |
1 |
| Dielectric Withstanding Voltage |
500V A.C.(r.m.s.) for a minute |
| Operating Temparature Min [deg.C] |
-40 |
| Operating Temparature Max [deg.C] |
105 |

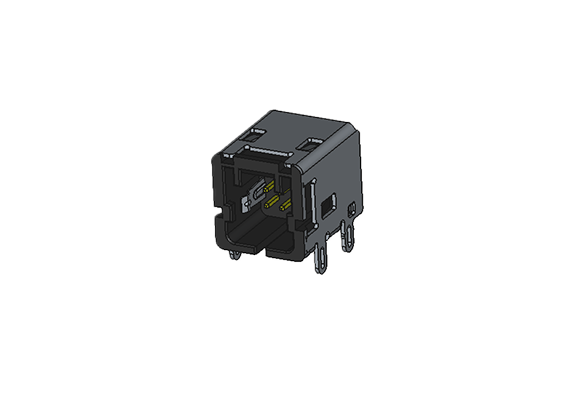

Overall View
NOTE
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.

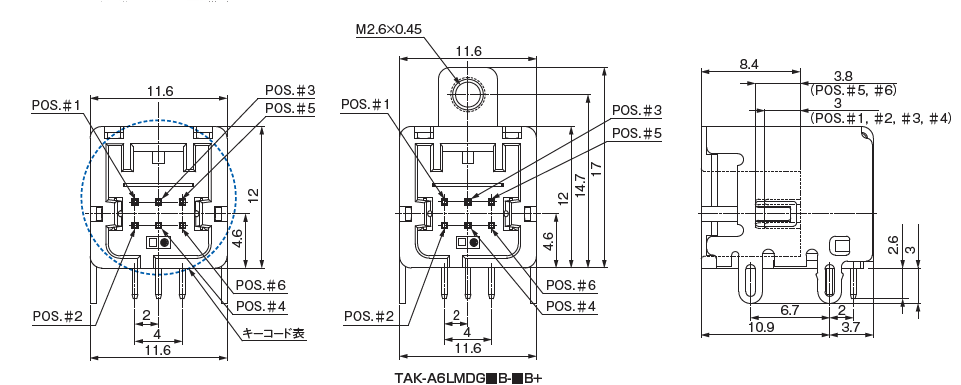

Please request the Engineering Drawing for the most current and accurate design information.
