TAK Series
１．Capable LVDS, USB, CAN, Ethernet transmission
２．Clear locking sound by mold lock structure
３．7 coding available to avoid incorrect insertion
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
-
-

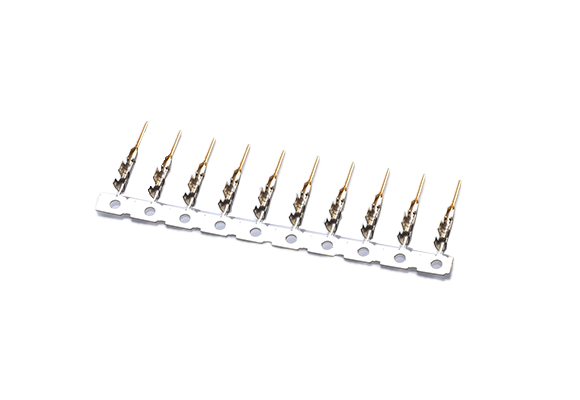

Parts No. TAK Contact Mounting Method/
Wiring methodCrimping Operating Temparature
Min
[deg.C]-40 Operating Temparature
Max
[deg.C]105 Applicable Cable Diameter AWG#32～22
-
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Parts No.
Mounting Method/
Wiring methodOperating Temparature
Min
[deg.C]Operating Temparature
Max
[deg.C]Applicable Cable Diameter
Catalog
TAK-MGE-R+ Crimping -40 105 AWG#26～22 DL0016_HTKTAK_EN_CL.pdf TAK-MGE-500R+ Crimping -40 105 AWG#26～22 DL0016_HTKTAK_EN_CL.pdf TAK-MGB-R+ Crimping -40 105 AWG#32～28 DL0016_HTKTAK_EN_CL.pdf TAK-MGB-500R+ Crimping -40 105 AWG#32～28 DL0016_HTKTAK_EN_CL.pdf TAK-FGB-5100R+ Crimping -40 105 AWG#28～24 DL0016_HTKTAK_EN_CL.pdf TAK-FGB-500R+ Crimping -40 105 AWG#28～24 DL0016_HTKTAK_EN_CL.pdf TAK-FGB+ Crimping -40 105 AWG#28～24 DL0016_HTKTAK_EN_CL.pdf -
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
