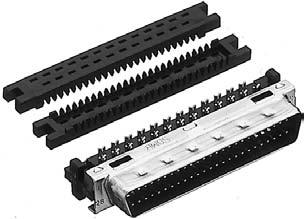

PCS-XE()MA+

  • Parts No. PCS-XE()MA+
    Pin Count 26,50,68100
    Pich
    [mm]    		 1.27
    Mounting Method/
    Wiring method    		 IDC
    Current Rating
    [A/Pin]    		 1
    Dielectric Withstanding
    Voltage    		 500/750V A.C.(r.m.s.) for a minute
    Operating Temparature
    Min
    [deg.C]    		 -55
    Operating Temparature
    Max
    [deg.C]    		 105

  • The product information in this data is for reference only.
    This is subject to change without notice.
    Contact our sales staff for further information before considering or ordering any of our products.

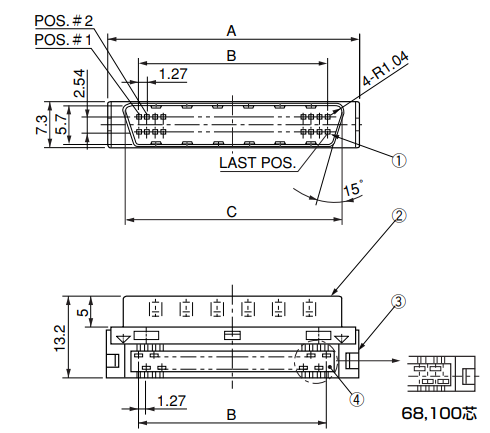

    Please request the Engineering Drawing for the most current and accurate design information.
