1.27mm Pitch Connector PCR Series
PCR Series

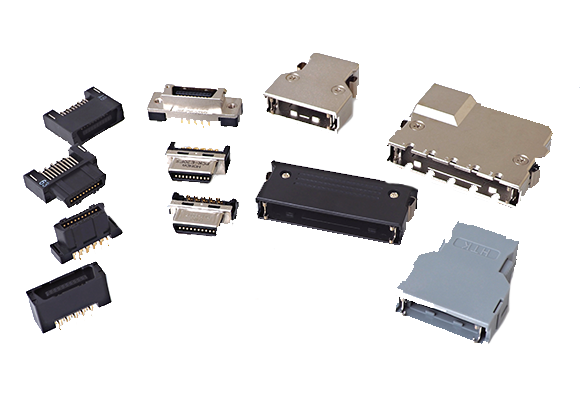

１．Miniaturization due to 1.27mm pitch
２．Locking mechanism can be selected w/ spring & screw lock
３．Cover case is die-cast or plastic type
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
1.27mm Pitch Connector PCR Series Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Drawing |
|---|---|---|---|---|---|---|---|---|---|

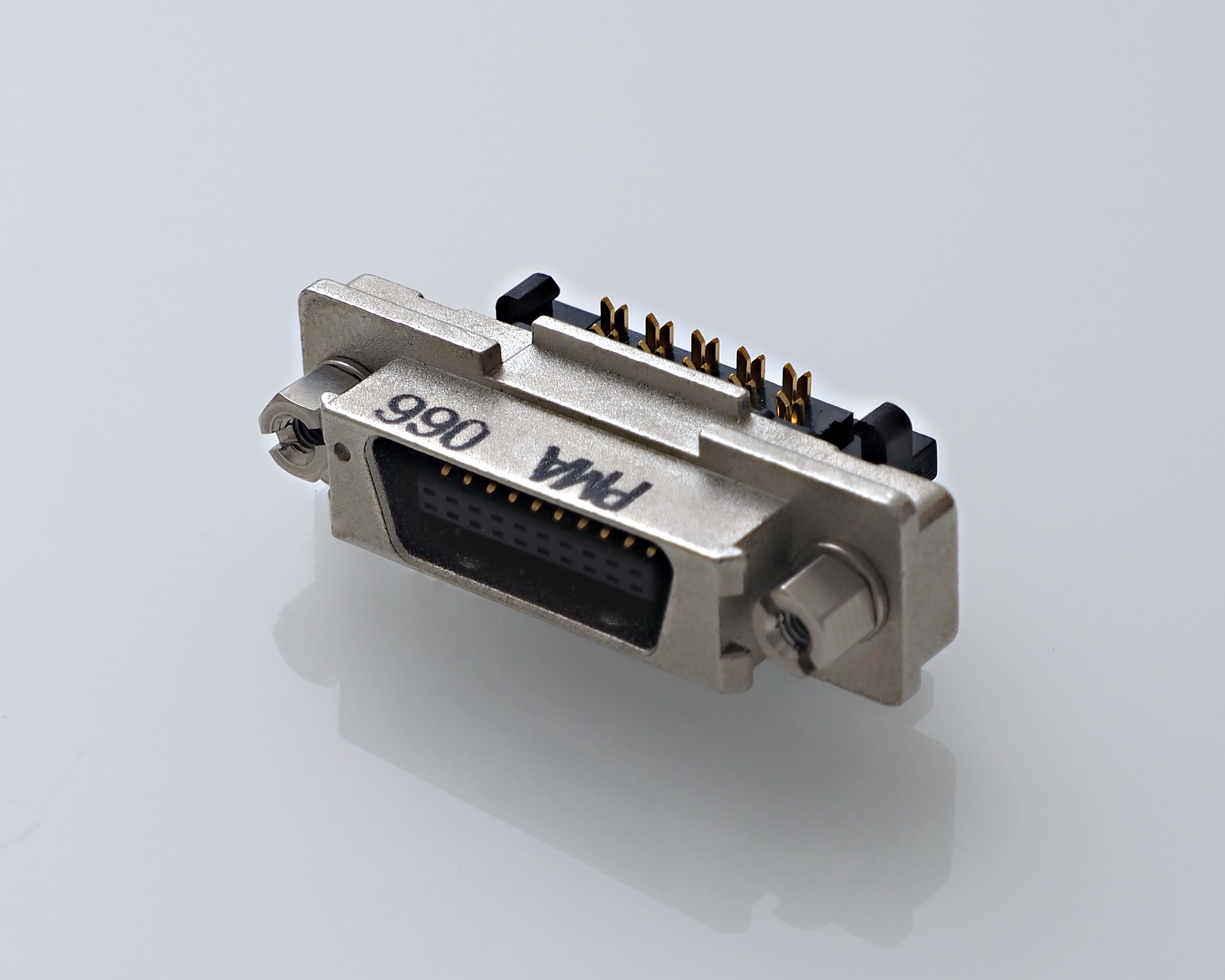

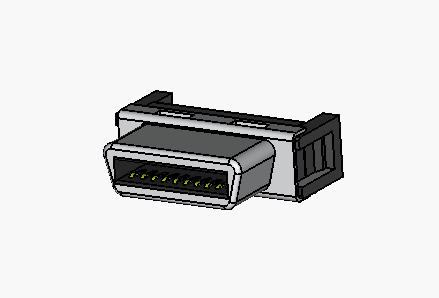

| PCR-E()PM* |  |
20,28,36,50,68,96 *=B:28 pins not handled *=C:28,96 pins not handled |
1.27 | IDC | 1 | 500V A.C.(r.m.s.) for a minute | -40 | 105 | DL0189_HTKPCR_EN.pdf |

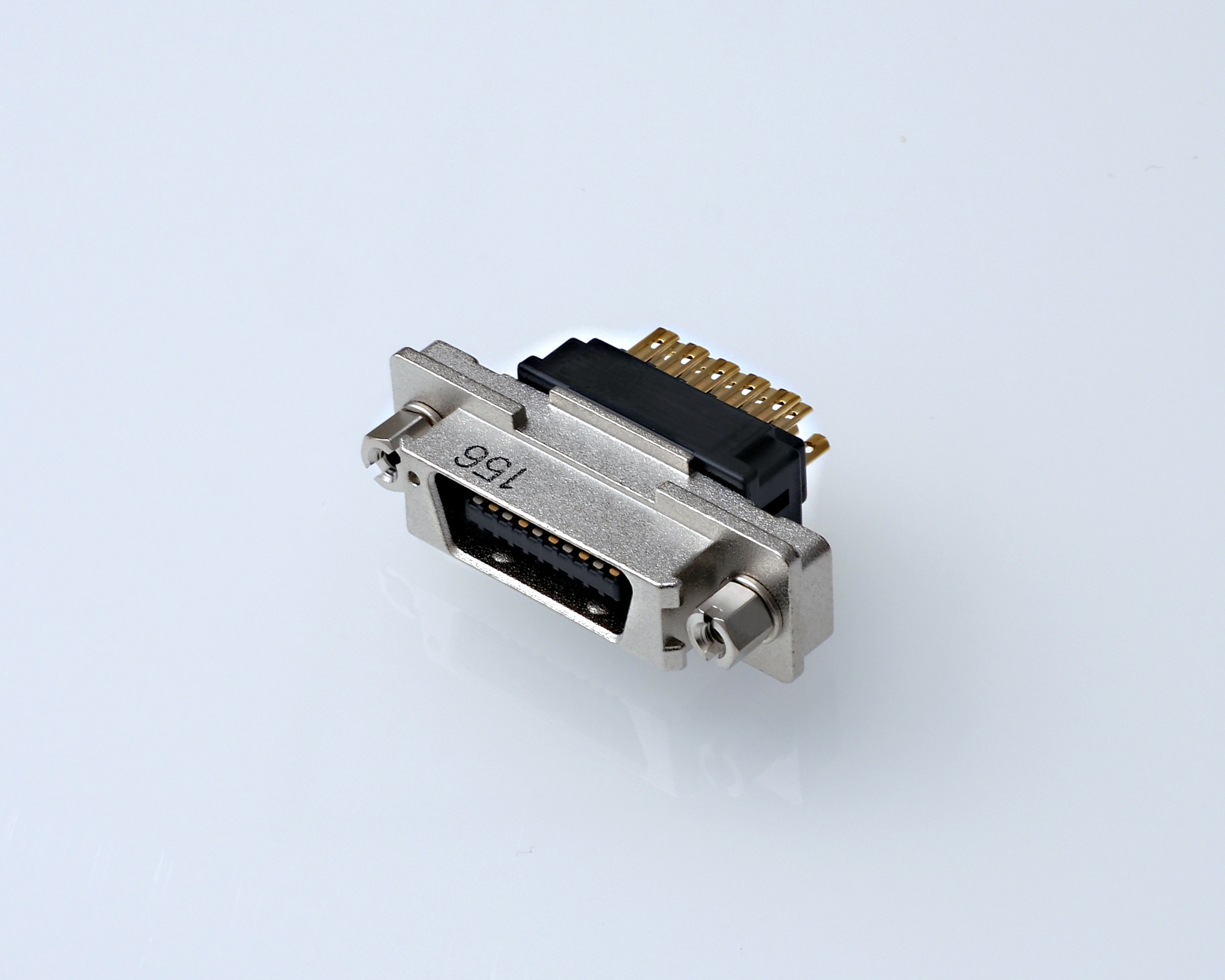

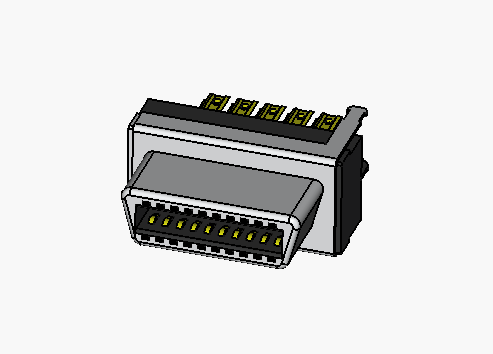

| PCR-E20PMRS-*+ |  |
20,28 *=None: Spring lock *=SL: Screw lock |
1.27 | Soldering | 1 | 500V A.C.(r.m.s.) for a minute | -40 | 105 | DL0190_HTKPCR_EN.pdf |

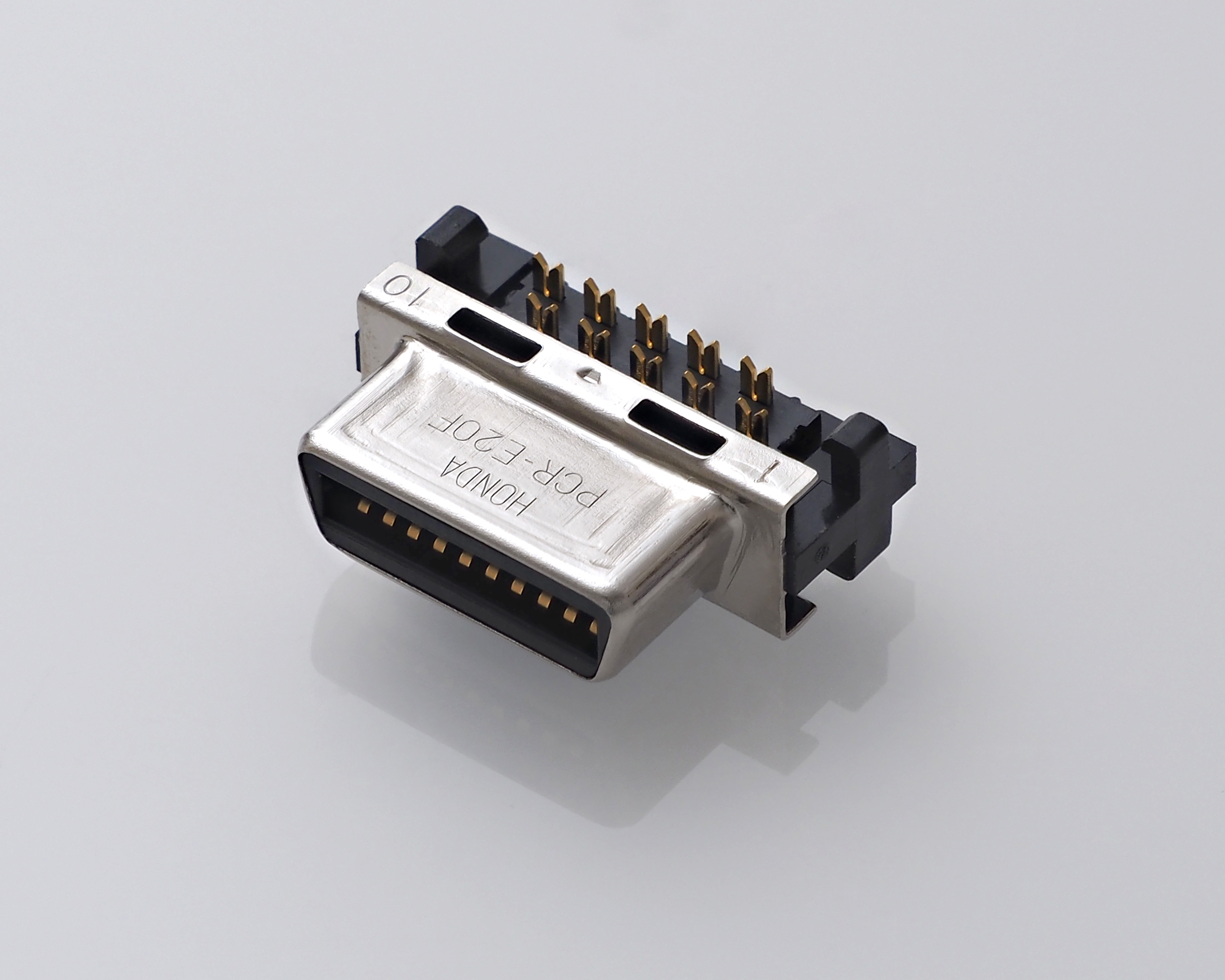

| PCR-E()F*+ |  |
20,28,36,50,68,96 *=C:20,96 pins not handled |
1.27 | IDC | 1 | 500V A.C.(r.m.s.) for a minute | -40 | 105 | DL0166_HTKPCR_EN.pdf |
| PCR-E()FS+ |  |
20,28,36,50,68,96 | 1.27 | Soldering | 1 | 500V A.C.(r.m.s.) for a minute | -40 | 105 | DL0167_HTKPCR_EN.pdf |
| PCR-S()FS+ |  |
20,28,36,50 | 1.27 | Soldering | 1 | 500V A.C.(r.m.s.) for a minute | -40 | 105 | DL0168_HTKPCR_EN.pdf |

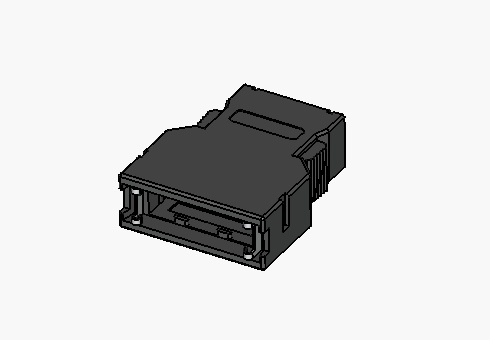

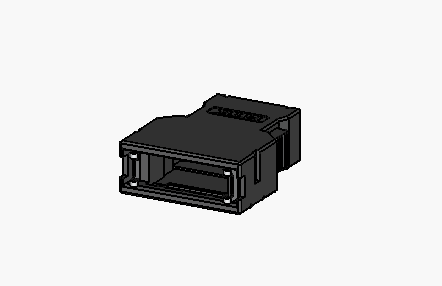

| PCR-V20L* |  |
20 | Case | -40 | 105 | DL0173_HTKPCR_EN.pdf | |||

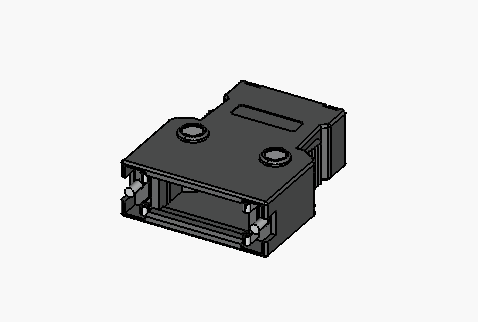

| PCR-LS()LA |  |
20,28,36,50 | Case | -40 | 105 | DL0174_HTKPCR_JP.pdf | |||

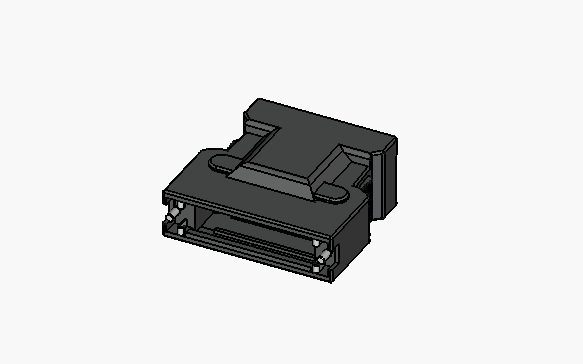

| PCR-LS20LA1 |  |
20 | Case | -40 | 105 | DL0175_HTKPCR_EN.pdf | |||
| PCR-E20LPF | 20 | Case | -40 | 105 | DL0176_HTKPCR_EN.pdf | ||||

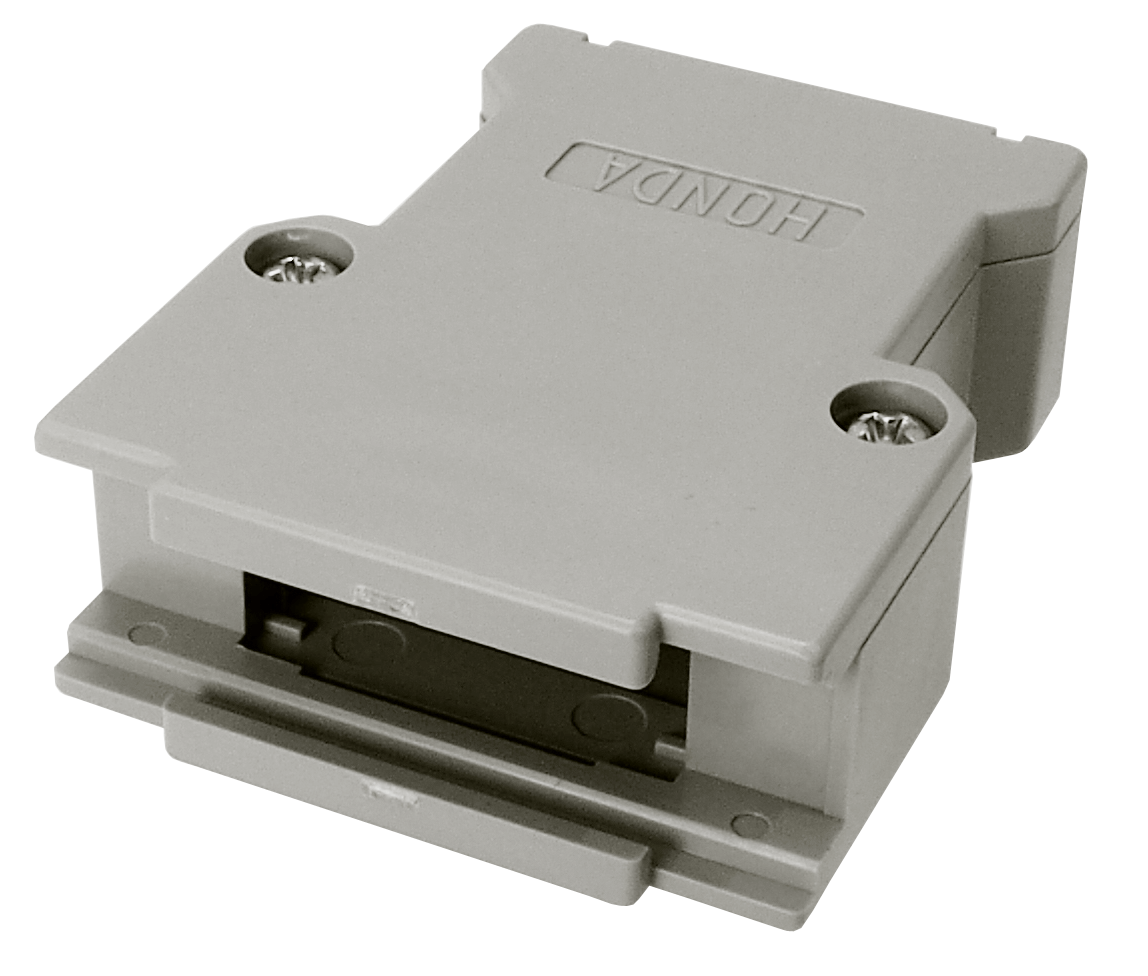

| PCR-S20LA |  |
20 | Case | -40 | 105 | DL0177_HTKPCR_EN.pdf | |||
| PCR-E20SPF1A | 20 | Case | -40 | 105 | DL0178_HTKPCR_EN.pdf | ||||
| PCR-S()PMLA2+S |  |
20,28 | Case | -40 | 105 | DL0191_HTKPCR_EN.pdf |
