MR,MRP Series
１．Long- term reliability (Long Seller over 50 years)
２．In line-type cases are also available
３．Many sales results
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
-
-

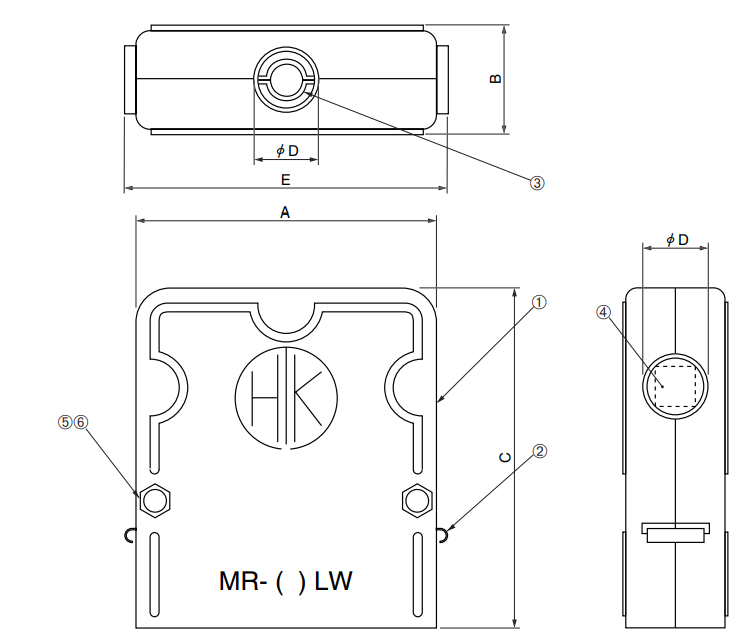

Parts No. MR-()LW+ Pin Count 8,16,20,25,34,50,60 Mounting Method/
Wiring methodCase Operating Temparature
Min
[deg.C]-40 Operating Temparature
Max
[deg.C]55 Cable Jacket Diameter
[Φ]*=8:Φ6
*=16:Φ9
*=20:Φ11
*=25:Φ13.5
*=34:Φ15
*=50:Φ16
*=60:Φ18
-
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
