Waterproof Connectors 2.00mm Pitch Waterproof Connectors

CA01A5-()()B0-0*

Outline

2.00mm Pitch Waterproof Connectors
1.Waterproof function with terminal insertion only
2.Improved workability by latch lock mechanism
3.Many sales result

Specifiacations

Parts No. CA01A5-()()B0-0*
Pin Count 2,3,4,5,6,8
【*=3】2Pin Only
Pich
[mm]
2.00
Waterproof Grade IP67
Mounting Method/
Wiring method
Crimping
Current Rating
[A/Pin]
2.00 Max
Dielectric Withstanding
Voltage
1,000V A.C.(r.m.s) for a minute
Operating Temparature
Min
[deg.C]
-40
Operating Temparature
Max
[deg.C]
105
Cable Jacket Diameter
[Φ]
*=1:Φ1.00~Φ1.25
*=2:Φ1.25~Φ1.50
*=3:Φ0.75~Φ1.00

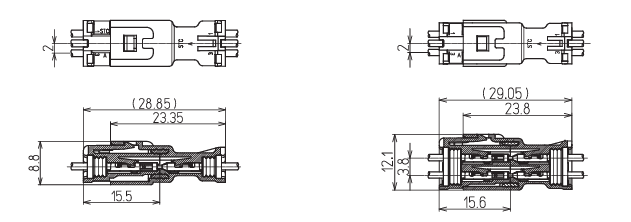

Overall View

NOTE

The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
