Outline
2.00mm Pitch Waterproof Connectors
１．Waterproof function with terminal insertion only
２．Improved workability by latch lock mechanism
３．Many sales result
Specifiacations
| Parts No. | CA01A6-()()B0-0＊ |
|---|---|
| Pin Count | 2,3,4,5,6,8 ＊=3:2Pin Only |
| Pich [mm] |
2.00 |
| Waterproof Grade | IP67 |
| Mounting Method/ Wiring method |
Crimping |
| Current Rating [A/Pin] |
2.00 Max |
| Dielectric Withstanding Voltage |
1,000V A.C.(r.m.s) for a minute |
| Operating Temparature Min [deg.C] |
-40 |
| Operating Temparature Max [deg.C] |
105 |
| Cable Jacket Diameter [Φ] |
＊=1:Φ1.00～Φ1.25 ＊=2:Φ1.25～Φ1.50 ＊=3:Φ0.75～Φ1.00 |

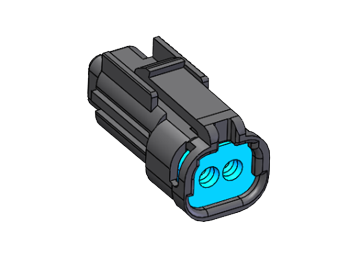

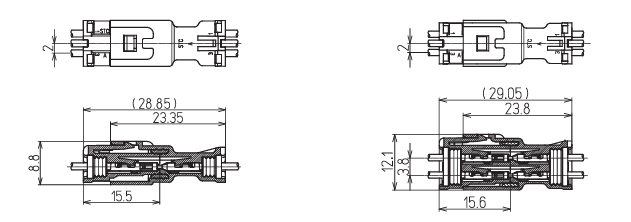

Overall View
NOTE
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
