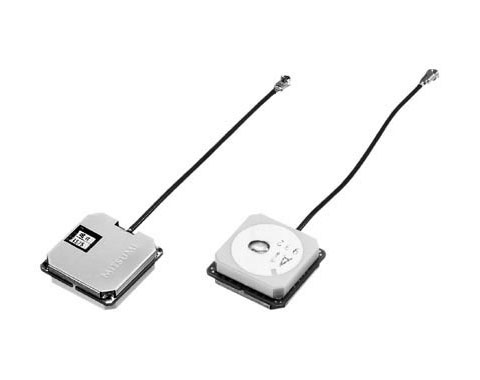

Receives positioning signals from satellites and is used to locate vehicles in the event of an emergency and for car navigation systems.
Features
1. Custom antenna pattern design.
2. Low power supply voltage, low consumption current.
3. Small antenna element 20(W) x 20(D) x 4(H) mm
4. Cable length and connector can be customized.
-
-
Antenna Reception Frequency 1575.42±1.023MHz Antenna Reception Polarization Right Hand Circular Polarization Antenna Antenna Gain 1.0dBi typ. *1 Antenna Output Impedance 50Ω LNA Reception Frequency 1575.42MHz LNA Noise Figure 1.1dB typ. LNA Gain 26dB typ. LNA Gain Flatness (Within Reception Band) 1dB max. LNA Ex-band Attenuation 18dB min. (fo±50MHz) Overall Gain 26dBi typ. (Zenith) *1 Overall Power Supply Voltage 3.0V Overall Current Consumption 6.5mA typ. 8mA max. Minimum Order 120,000Pcs/Year *1 Conditions : on the 22×22mm grand boad. Cable length 100mm.
-

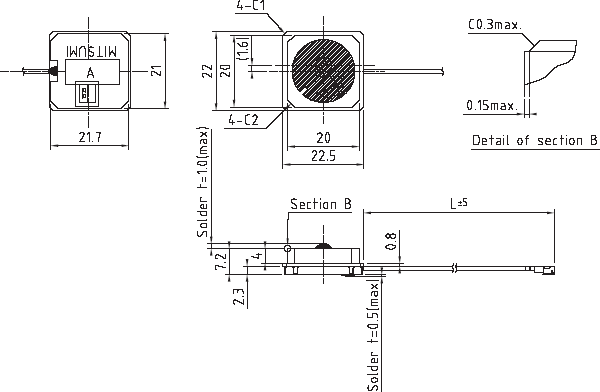

Unit:mm -
・Any products mentioned in this catalog are subject to any modification in their appearance and others for improvements without prior notification.
・The details listed here are not a guarantee of the individual products at the time of ordering. When using the products, you will be asked to check their specifications. -
