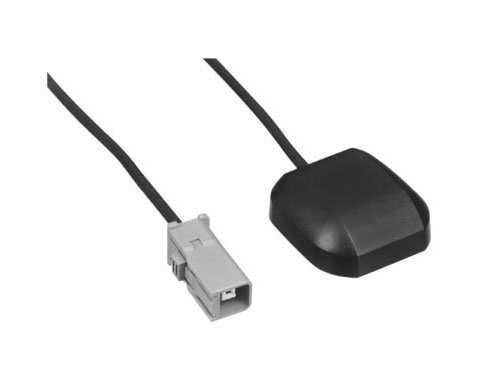

Receives positioning signals from satellites and is used to locate vehicles in the event of an emergency and for car navigation systems.
Features
1. Utilizes Mitsumi standard case.
2. Miniature size 33(W) x 36(D) x 12.8(H) mm
3. Small antenna element 20(W) x 20(D) x 4(H) mm
4. Cable length and connector can be customized.
5. Waterproof : Certified for JIS C0920 IPX7
6. Installation Method : Double sided tape or Magnetic(With rubber feet)
-
-
Antenna Reception Frequency 1559.0~1605.375MHz Antenna Reception Polarization Right Hand Circular Polarization Antenna Antenna Gain 0dBi typ. *1 Antenna Output Impedance 50Ω LNA Reception Frequency 1559.0~1605.375MHz LNA Noise Figure 1.2dB max. LNA Gain 26dB typ. LNA Ex-band Attenuation 18dB min. (fo±50MHz) Overall Gain 26dBi typ. (Zenith) *1 Overall Power Supply Voltage 5.0V Overall Current Consumption 22mA typ. 30mA max. Minimum Order 30,000pcs/year *1 Gain is for the standard cable length of 3m and grounding plate measuring 70×70mm.
-

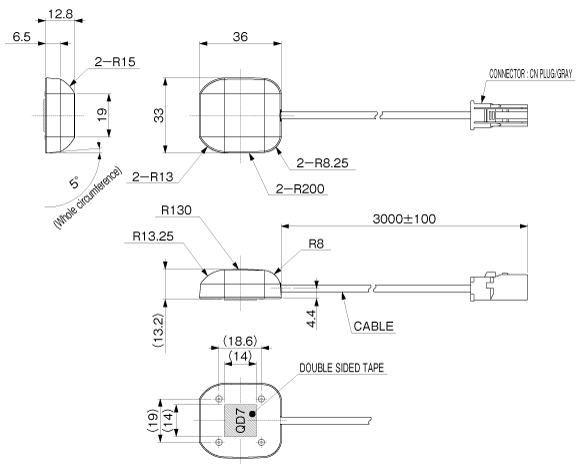

Unit:mm -
・Any products mentioned in this catalog are subject to any modification in their appearance and others for improvements without prior notification.
・The details listed here are not a guarantee of the individual products at the time of ordering. When using the products, you will be asked to check their specifications. -
