Supreme Type(Monolithic Balance Type)

Minebea Intec

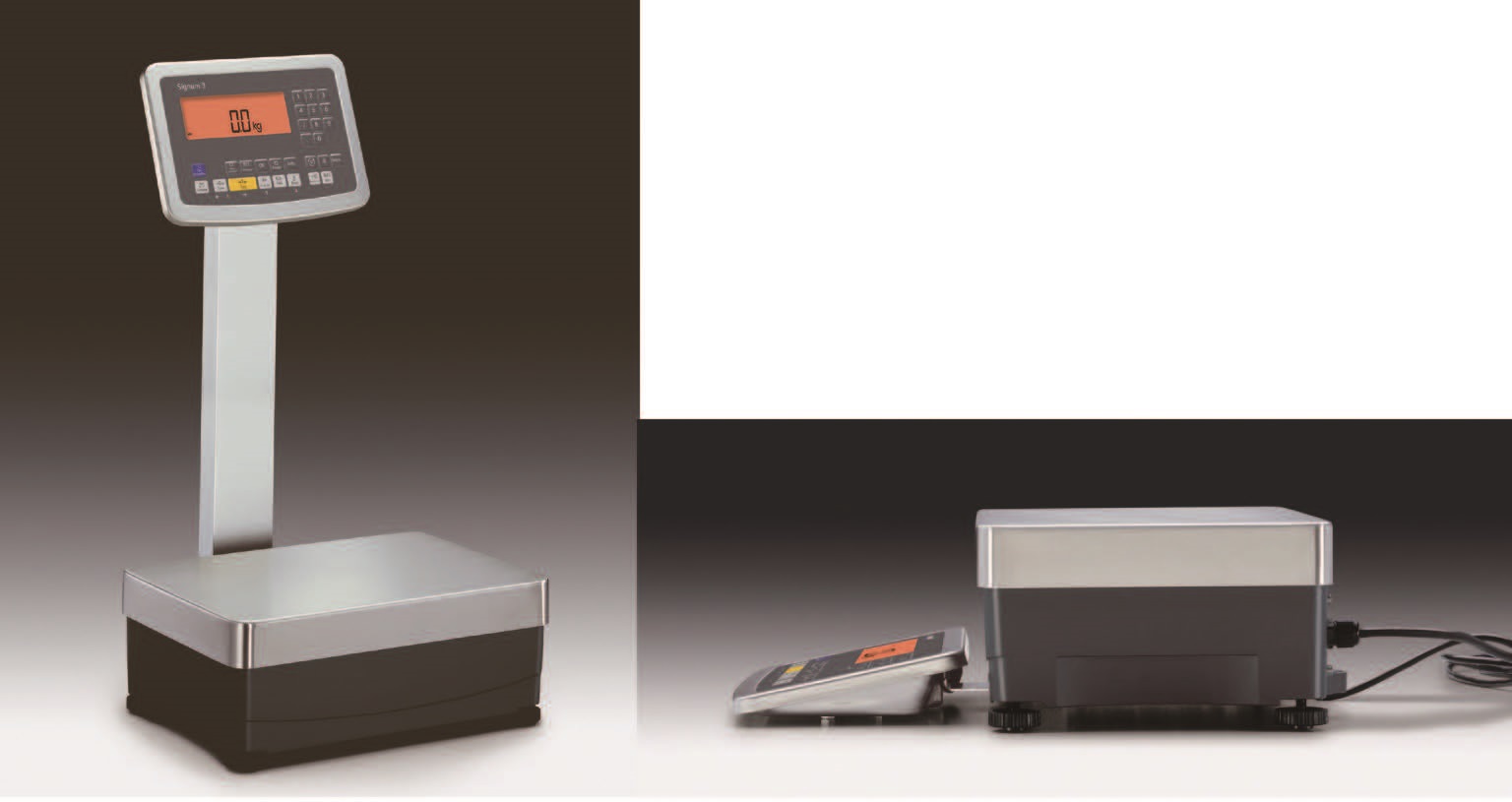

New platform scale that covers a 620g～35kg weighing range,yet has a compact design.Monolithic balance type supreme.

Features

・High resolution weighing scale with aluminum monolithic balance comparable to analytical balances
・Lineup of 0.62kg to 35kg weighing range
・Optional internal weight available
・Optional weight available

  • scroll

    Specification name

    Specification contents

    Specification contents2
    Item SIWSBBP SIWSDCP
    Accuracy grade
    (special measuring instrument)    		 Level 2 Level 2
    Display Weight: 20mm LCD, dot matrix, 14 segments, backlight, unit symbol: g,kg(ct,lb,oz: not tested) Weight: 20mm LCD, dot matrix, 14 segments, backlight, unit symbol: g,kg(ct,lb,oz: not tested)
    Power supply
    (weighing section)    		 AC100-240V(-15%/+10%),50-60Hz, power consumption 23VA AC100-240V(-15%/+10%),50-60Hz, power consumption 23VA
    Operating temperature range 10℃～30℃ 10℃～30℃
    Operating humidity range Within 85%RH Within 85%RH
    Material
    (Scale plate)    		 Equivalent to JIS SUS304 polished finish Equivalent to JIS SUS304 polished finish
    Material
    (Display)    		 Equivalent to JIS SUS304 Protection class IP65 Equivalent to JIS SUS304 Protection class IP65
    Material
    (Platform)    		 Aluminum die-cast　Protection class IP43 Aluminum die-cast　Protection class IP43
    Interface RS-232C standard (COM1) RS-232C standard (COM1)
    Cable length 2m from the weighing section to the display section 2m from the weighing section to the display section

  • Click the arrow icon in the table below to switch from ascending to descending order.

    scroll

    Part No.

    Type approval

    Weighing Range
    lower limit
    [kg]

    Weighing Range
    upper limit
    [kg]

    Readability
    [g]

    Scale interval(e=)
    [g]

    Actual scale interval(d=)
    [g]

    Weight
    [kg]

    Loading platform dimensions(W)
    [mm]

    Loading platform dimensions
    (D)
    [mm]

    Loading platform dimensions(Φ)
    [mm]

    Option
    (Main unit IP65 upgrade)

    Standard equipment1

    Standard equipment2

    Standard equipment3

    Standard equipment4

    Standard equipment5

    Standard equipment6

    Standard equipment7

    Standard equipment8

    Standard equipment9

    Standard equipment10

    Standard equipment11

    Standard equipment12
    SIWSBBP-1-06-H 0.62 0.62 0.001 6.8 115 SQmin
    SIWSBBP-2-06-H 0.62 0.62 0.001 6.8 115 GMP compliant printing Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSBBP-3-06-H 0.62 0.62 0.001 6.8 115 GMP compliant printing Numeric input Alphabetic input Numeric Keypad Tare input Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSBBP-1-3-H 3.1 3.1 0.01 6.8 180 180 IP65 SQmin
    SIWSBBP-2-3-H 3.1 3.1 0.01 6.8 180 180 IP65 GMP compliant printing Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSBBP-3-3-H 3.1 3.1 0.01 6.8 180 180 IP65 GMP compliant printing Numeric input Alphabetic input Numeric Keypad Tare input Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSBBP-1-6-H 6.1 6.1 0.01 6.8 180 180 IP65 SQmin
    SIWSBBP-2-6-H 6.1 6.1 0.01 6.8 180 180 IP65 GMP compliant printing Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSBBP-3-6-H 6.1 6.1 0.01 6.8 180 180 IP65 GMP compliant printing Numeric input Alphabetic input Numeric Keypad Tare input Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSDCP-1-6-S 6 6 0.1 12 350 240 IP65 SQmin
    SIWSDCP-2-6-S 6 6 0.1 12 350 240 IP65 GMP compliant printing Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSDCP-3-6-S 6 6 0.1 12 350 240 IP65 GMP compliant printing Numeric input Alphabetic input Numeric Keypad Tare input Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSDCP-1-16-H 16 16 0.1 12 350 240 IP65 SQmin
    SIWSDCP-2-16-H 16 16 0.1 12 350 240 IP65 GMP compliant printing Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSDCP-3-16-H 16 16 0.1 12 350 240 IP65 GMP compliant printing Numeric input Alphabetic input Numeric Keypad Tare input Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSDCP-1-35-H 35 35 0.1 12 350 240 IP65 SQmin
    SIWSDCP-2-35-H 35 35 0.1 12 350 240 IP65 GMP compliant printing Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSDCP-3-35-H 35 35 0.1 12 350 240 IP65 GMP compliant printing Numeric input Alphabetic input Numeric Keypad Tare input Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSBBP-1-06-HCE No.184 (Approved model : BD SI 200) 0.62 0.00002 0.00001 0.000001 6.8 115 SQmin
    SIWSBBP-2-06-HCE No.184 (Approved model : BD SI 200) 0.62 0.00002 0.00001 0.000001 6.8 115 GMP compliant printing Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSBBP-3-06-HCE No.184 (Approved model : BD SI 200) 0.62 0.00002 0.00001 0.000001 6.8 115 GMP compliant printing Numeric input Alphabetic input Numeric Keypad Tare input Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSBBP-1-3-HCE No.184 (Approved model : BD SI 200) 3.1 0.0002 0.0001 0.00001 6.8 180 180 IP65 SQmin
    SIWSBBP-2-3-HCE No.184 (Approved model : BD SI 200) 3.1 0.0002 0.0001 0.00001 6.8 180 180 IP65 GMP compliant printing Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSBBP-3-3-HCE No.184 (Approved model : BD SI 200) 3.1 0.0 0.0001 0.00001 6.8 180 180 IP65 GMP compliant printing Numeric input Alphabetic input Numeric Keypad Tare input Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSBBP-1-6-HCE No.184 (Approved model : BD SI 200、BG SI 200) 6.1 0.0005 0.0001 0.00001 6.8 180 180 IP65 SQmin
    SIWSBBP-2-6-HCE No.184 (Approved model : BD SI 200、BG SI 200) 6.1 0.0005 0.0001 0.00001 6.8 180 180 IP65 GMP compliant printing Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSBBP-3-6-HCE No.184 (Approved model : BD SI 200、BG SI 200) 6.1 0.0005 0.0001 0.00001 6.8 180 180 IP65 GMP compliant printing Numeric input Alphabetic input Numeric Keypad Tare input Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSDCP-1-6-SCE No.184 (Approved model : BD SI 200、BG SI 200) 6 0.05 0.001 0.0001 12 350 240 IP65 SQmin
    SIWSDCP-2-6-SCE No.184 (Approved model : BD SI 200、BG SI 200) 6 0.05 0.001 0.0001 12 350 240 IP65 GMP compliant printing Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSDCP-3-6-SCE No.184 (Approved model : BD SI 200、BG SI 200) 6 0.05 0.001 0.0001 12 350 240 IP65 GMP compliant printing Numeric input Alphabetic input Numeric Keypad Tare input Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSDCP-1-16-HCE No.184 (Approved model : BD SI 200、BG SI 200) 16 0.005 0.001 0.0001 12 350 240 IP65 SQmin
    SIWSDCP-2-16-HCE No.184 (Approved model : BD SI 200、BG SI 200) 16 0.005 0.001 0.0001 12 350 240 IP65 GMP compliant printing Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSDCP-3-16-HCE No.184 (Approved model : BD SI 200、BG SI 200) 16 0.005 0.001 0.0001 12 350 240 IP65 GMP compliant printing Numeric input Alphabetic input Numeric Keypad Tare input Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSDCP-1-35-HCE No.184 (Approved model : BD SI 200、BG SI 200) 35 0.005 0.001 0.0001 12 350 240 IP65 SQmin
    SIWSDCP-2-35-HCE No.184 (Approved model : BD SI 200、BG SI 200) 35 0.005 0.001 0.0001 12 350 240 IP65 GMP compliant printing Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSDCP-3-35-HCE No.184 (Approved model : BD SI 200、BG SI 200) 35 0.005 0.001 0.0001 12 350 240 IP65 GMP compliant printing Numeric input Alphabetic input Numeric Keypad Tare input Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry

    Click the arrow icon in the table below to switch from ascending to descending order.

    scroll

    Part No.

    Option (Additional Interface 1)

    Option (Additional Interface 2)

    Option (Additional Interface 3)

    Option (Additional Interface 4)

    Option (Additional Interface 5)

    Option (Additional Interface 6)

    Specification sheet

    Instruction Manual
    SIWSBBP-1-06-H RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSBBP-A.pdf 294-1835.pdf
    SIWSBBP-2-06-H RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSBBP-A.pdf 294-1835.pdf
    SIWSBBP-3-06-H RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSBBP-A.pdf 294-1835.pdf
    SIWSBBP-1-3-H RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSBBP-A.pdf 294-1835.pdf
    SIWSBBP-2-3-H RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSBBP-A.pdf 294-1835.pdf
    SIWSBBP-3-3-H RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSBBP-A.pdf 294-1835.pdf
    SIWSBBP-1-6-H RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSBBP-A.pdf 294-1835.pdf
    SIWSBBP-2-6-H RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSBBP-A.pdf 294-1835.pdf
    SIWSBBP-3-6-H RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSBBP-A.pdf 294-1835.pdf
    SIWSDCP-1-6-S RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCP-A.pdf 294-1835.pdf
    SIWSDCP-2-6-S RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCP-A.pdf 294-1835.pdf
    SIWSDCP-3-6-S RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCP-A.pdf 294-1835.pdf
    SIWSDCP-1-16-H RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCP-A.pdf 294-1835.pdf
    SIWSDCP-2-16-H RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCP-A.pdf 294-1835.pdf
    SIWSDCP-3-16-H RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCP-A.pdf 294-1835.pdf
    SIWSDCP-1-35-H RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCP-A.pdf 294-1835.pdf
    SIWSDCP-2-35-H RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCP-A.pdf 294-1835.pdf
    SIWSDCP-3-35-H RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCP-A.pdf 294-1835.pdf
    SIWSBBP-1-06-HCE RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSBBP(SMI)-A.pdf 294-1835.pdf
    SIWSBBP-2-06-HCE RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSBBP(SMI)-A.pdf 294-1835.pdf
    SIWSBBP-3-06-HCE RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSBBP(SMI)-A.pdf 294-1835.pdf
    SIWSBBP-1-3-HCE RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSBBP(SMI)-A.pdf 294-1835.pdf
    SIWSBBP-2-3-HCE RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSBBP(SMI)-A.pdf 294-1835.pdf
    SIWSBBP-3-3-HCE RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSBBP(SMI)-A.pdf 294-1835.pdf
    SIWSBBP-1-6-HCE RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSBBP(SMI)-A.pdf 294-1835.pdf
    SIWSBBP-2-6-HCE RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSBBP(SMI)-A.pdf 294-1835.pdf
    SIWSBBP-3-6-HCE RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSBBP(SMI)-A.pdf 294-1835.pdf
    SIWSDCP-1-6-SCE RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCP(SMI)(オプション仕様入り).pdf 294-1835.pdf
    SIWSDCP-2-6-SCE RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCP(SMI)(オプション仕様入り).pdf 294-1835.pdf
    SIWSDCP-3-6-SCE RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCP(SMI)(オプション仕様入り).pdf 294-1835.pdf
    SIWSDCP-1-16-HCE RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCP(SMI)(オプション仕様入り).pdf 294-1835.pdf
    SIWSDCP-2-16-HCE RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCP(SMI)(オプション仕様入り).pdf 294-1835.pdf
    SIWSDCP-3-16-HCE RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCP(SMI)(オプション仕様入り).pdf 294-1835.pdf
    SIWSDCP-1-35-HCE RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCP(SMI)(オプション仕様入り).pdf 294-1835.pdf
    SIWSDCP-2-35-HCE RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCP(SMI)(オプション仕様入り).pdf 294-1835.pdf
    SIWSDCP-3-35-HCE RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCP(SMI)(オプション仕様入り).pdf 294-1835.pdf

Custom

Custom Request (Custom Sensors)

Various custom sensors made to meet the customer's requirements.
  • ※
    Custom products are intended for mass production. Please consult us for small-lot orders.
