X-ray inspection system

X-ray inspection systems are used in production and packaging lines to detect products containing metal or other foreign objects and reliably reject them from the line.

Applications

Food and beverages
Pharmaceuticals
Chemical products
Industrial sector

Parts List
Case Studies
Industry

Detection Principle

X-ray system for foreign body inspection of general packaging products,
aluminum packaging products and frozen products, etc. It is possible to inspect the number,
estimated weight, voids, shape, and filling volume as well as foreign objects.
The unique image processing technology with single irradiation realizes high-sensitivity detection.
And the compact design with a width of 1M, inspection section, rejector,
and discharge container are all in one unit,
making it possible to use one unit immediately.

Parts List

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts	Product outline image	Features

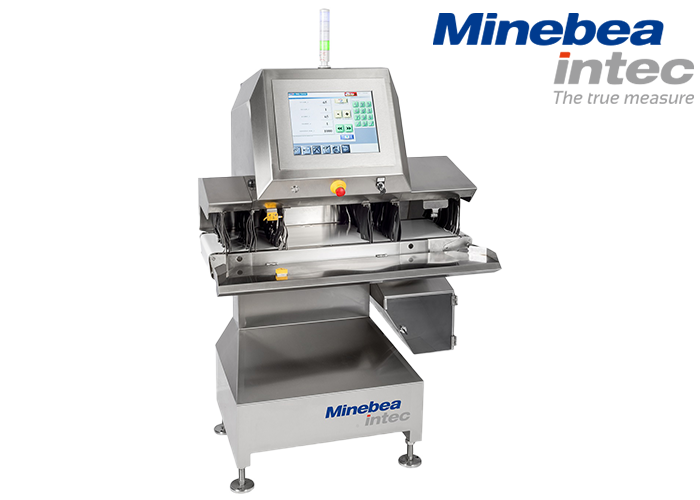

Dylight		The X-ray inspection system Dylight guarantees extremely high levels of safety for your packaged food. This true ‘Plug and Play’ solution combines all functions in one compact unit. ・Extremely compact design ・Plug and Play: All functions in one unit ・Takes up only one metre of space in your production line ・Complete with separator and run-off container ・Maximum product safety thanks to the highest degree of detection sensitivity ・Intuitive, time-saving operation ・Easy installation and integration into networks

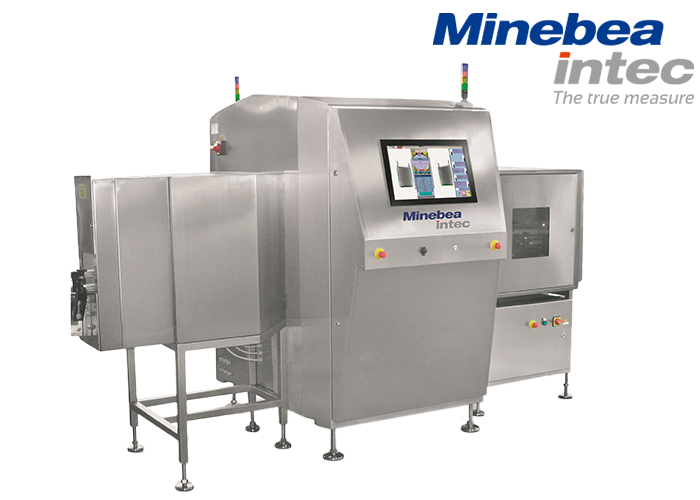

Dymond Series		The Dymond Series of X-ray inspection systems is extremely versatile. Featuring 4 models it is able to cover the majority of applications for inspecting packaged products. With belt widths up to 800 mm it is ideal for multi-lane applications of up to 8 traces. ・Extremely high level of detection sensitivity with low energy consumption ・Reliable detection of a wide range of foreign objects for your packaged products ・From large to small: the perfect solution for every product size ・Easy and intuitive operation by teaching in the products ・Hygienic design, following EHEDG principles featuring sloped surfaces and curved edges allowing easy inspection and cleaning, resulting in considerable time and cost savings ・A wide range of standard possibilities for ensuring product integrity and quality including checking completeness, determining product mass and determining compartment mass ・Covering belt widths from 200 mm up to 800 mm ・15" color touchscreen display

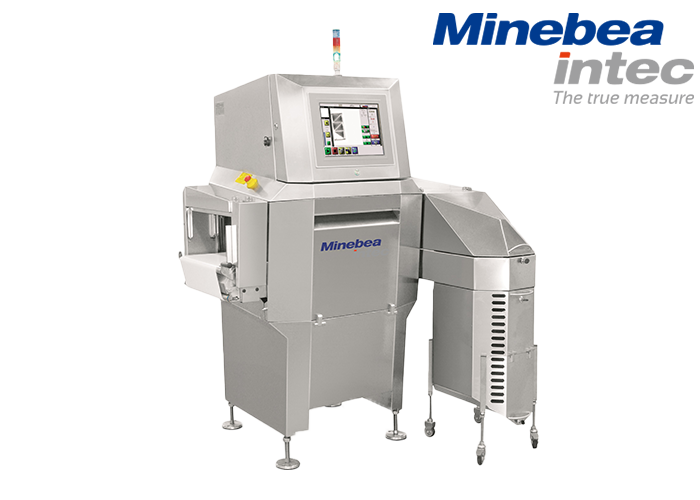

Dymond S		The Dymond S side shooters offer reliable detection of foreign objects in tall, upright packaging. The compact hygienic design, interfaces and reliable image processing at high speeds allow for efficient integration into automated production processes. ・Reliable inspection with a high throughput ・Seamless integration and installation ・Quick and easy cleaning thanks to the hygienic design ・Industry 4.0 ready

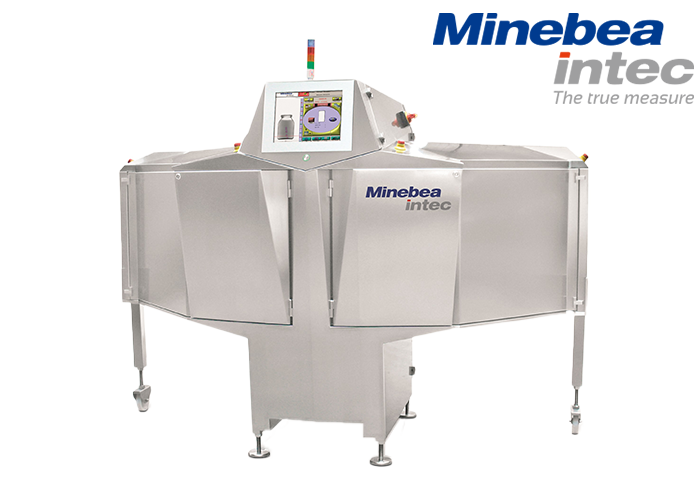

Dymond D		The Dymond D side shooters offer reliable detection of foreign objects in tall, upright packaging. The compact hygienic design, interfaces and reliable image processing at high speeds allow for efficient integration into automated production processes. ・Maximum safety through multi-sided radioscopy opens up new possibilities in product design ・Reliable inspection with a high throughput ・Seamless integration and installation ・Quick and easy cleaning thanks to the hygienic design ・Industry 4.0 ready

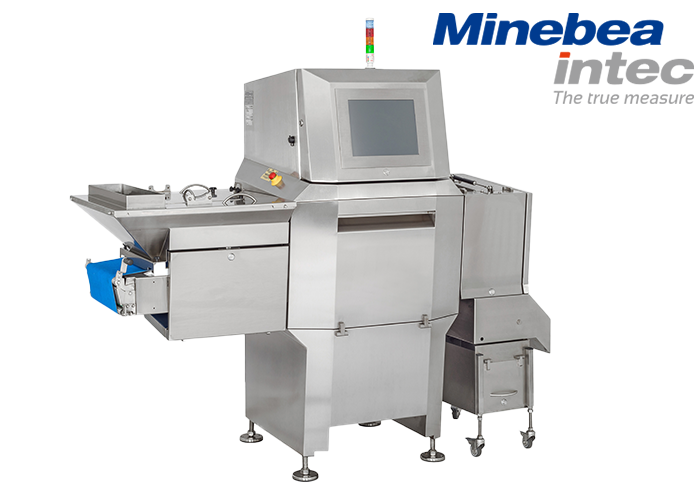

Dymond Bulk Series		Dymond Bulk guarantees precise X-ray inspection of bulk materials in the food industry. Foreign bodies such as stones or metal are consistently detected and removed from the material flow to protect both products and machines. ・Maximum detection sensitivity for product and machine safety ・Intuitive operation
