Operational amplifier with a built-in spiral inductor

This is a low noise operational amplifier with a built-in spiral inductor.
Using this IC, it is possible to easily detect AC current in a non-contact manner.

Download

Product Catalog

Parts List
Industry

Parts List

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

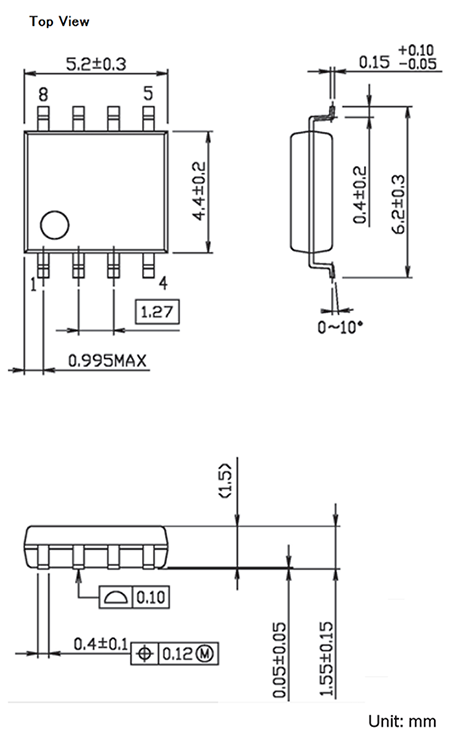

Parts	Dimensional Drawing	Outline	Operating Ambient Temperature lower limit [deg.C]	Operating Ambient Temperature upper limit [deg.C]	VCC operating voltage lower limit [V]	VCC operating voltage upper limit [V]	BIAS operating voltage1 lower limit [V]	BIAS operating voltage1 upper limit [V]	Package	Associated Data

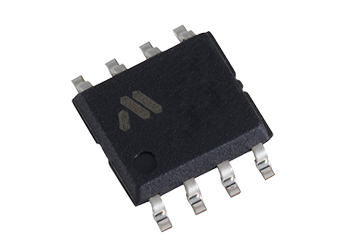

MM1969		MM1969 contains a low noise operational amplifier with a spiral inductor. This inductor detects a magnetic field generated when AC current flows through the power line. MM1969 amplifies the detected electromotive force with the built-in low noise operational amplifier (the gain can be set by changing external resistance), and transmits analog signals to an external ADC and microcontroller. This makes it possible to detect AC current in a non-contact manner.	-40	85	3	5.5	0.42	1	SOP-8G	PDF product catalog
