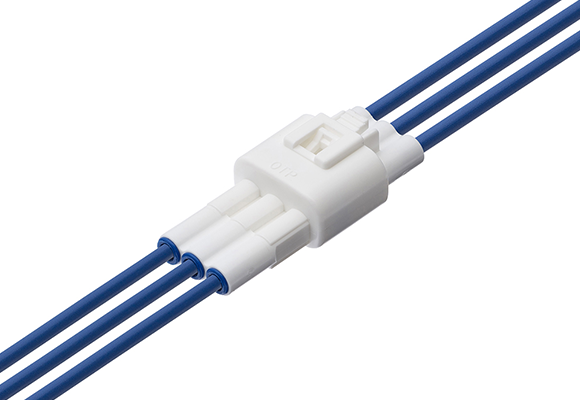

5.80mm Pitch Waterproof Connector
CL07D/E Series
１．Available in two types: wire-to-wire and board-to-board
２．Wide range of wire sizes applicable by changing the wire seal
３．Supports up to 10A
【Model Description】
()・・・ Number of pins
＊・・・ Product specification
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Waterproof Grade |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Catalog |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

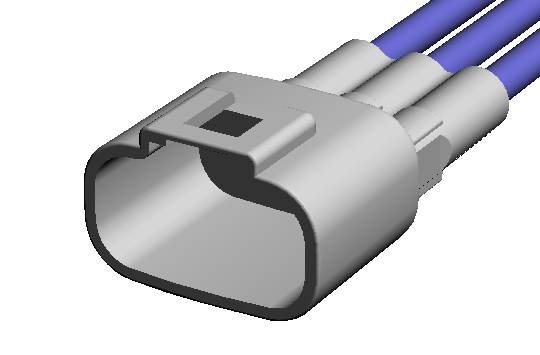

| CL07D0()A |  |
2,3 | 5.80 | IP67 | Crimping | 10.00 MAX | 1,700V A.C.(r.m.s) for a minute | -40 | 105 | DL0015_MCICL07DE_BI_CL.pdf | ||

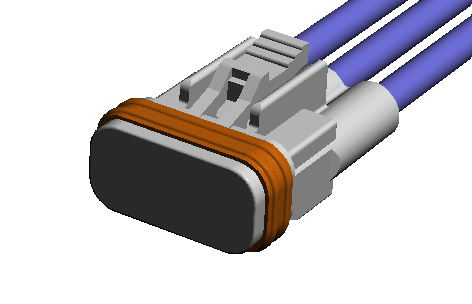

| CL07D0()M |  |
2,3 | 5.80 | IP67 | Crimping | 10.00 MAX | 1,700V A.C.(r.m.s) for a minute | -40 | 105 | DL0015_MCICL07DE_BI_CL.pdf | ||

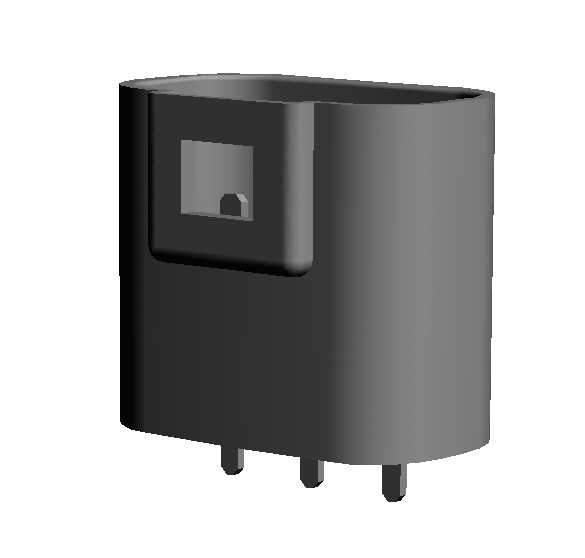

| CL07E0()M |  |
2,3 | 5.80 | IP67 | DIP | 10.00 MAX | 1,700V A.C.(r.m.s) for a minute | -40 | 105 | DL0015_MCICL07DE_BI_CL.pdf | ||

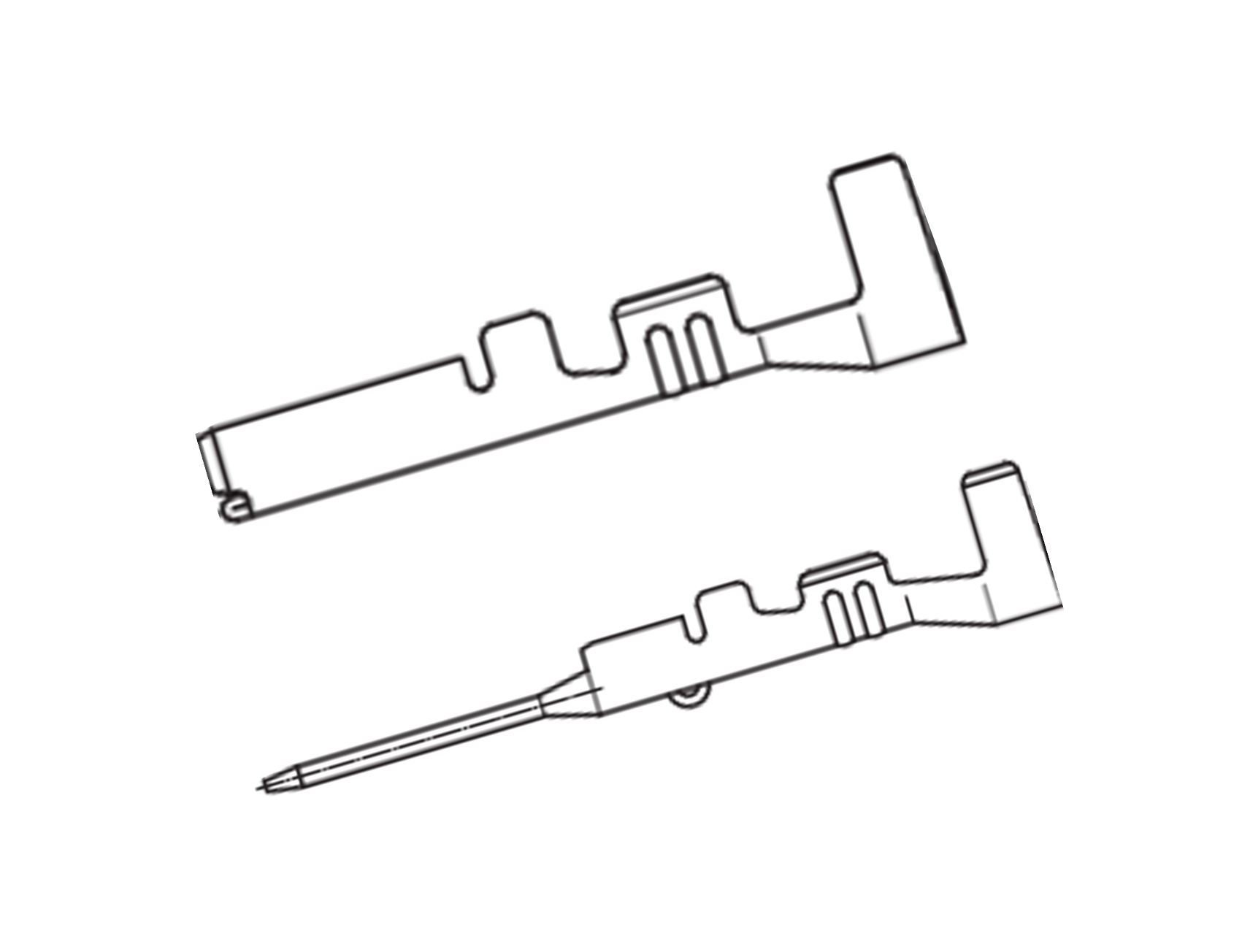

| CL07DE Contact |  |
Crimping | -40 | 105 | Φ2.70MAX,Φ3.10MAX | AWG#22～16 | DL0013_MCICL07A_BI_CL.pdf | |||||

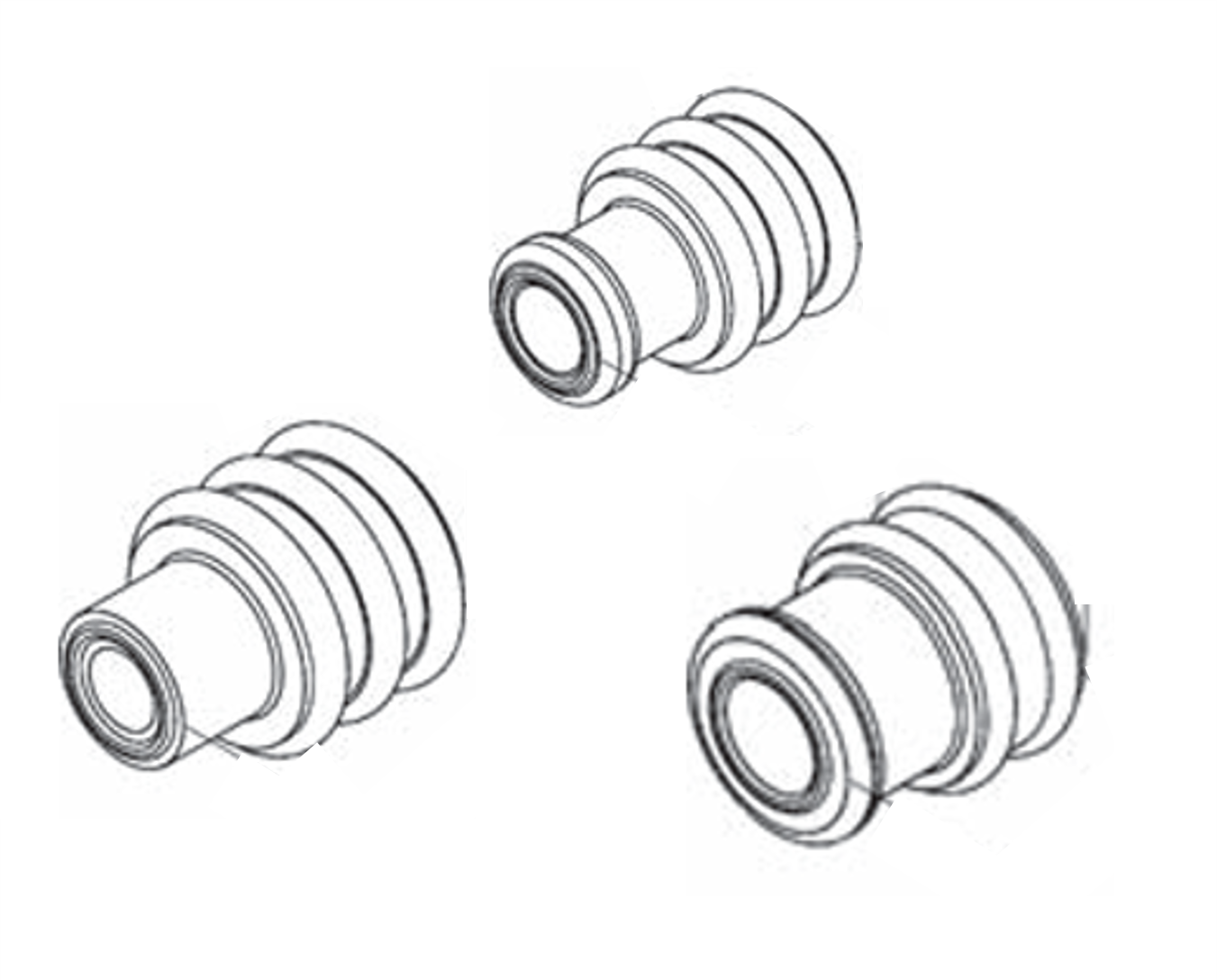

| CL07DE Wireseal |  |
Wire Seal | -40 | 105 | Φ1.70～2.10 | DL0013_MCICL07A_BI_CL.pdf |
